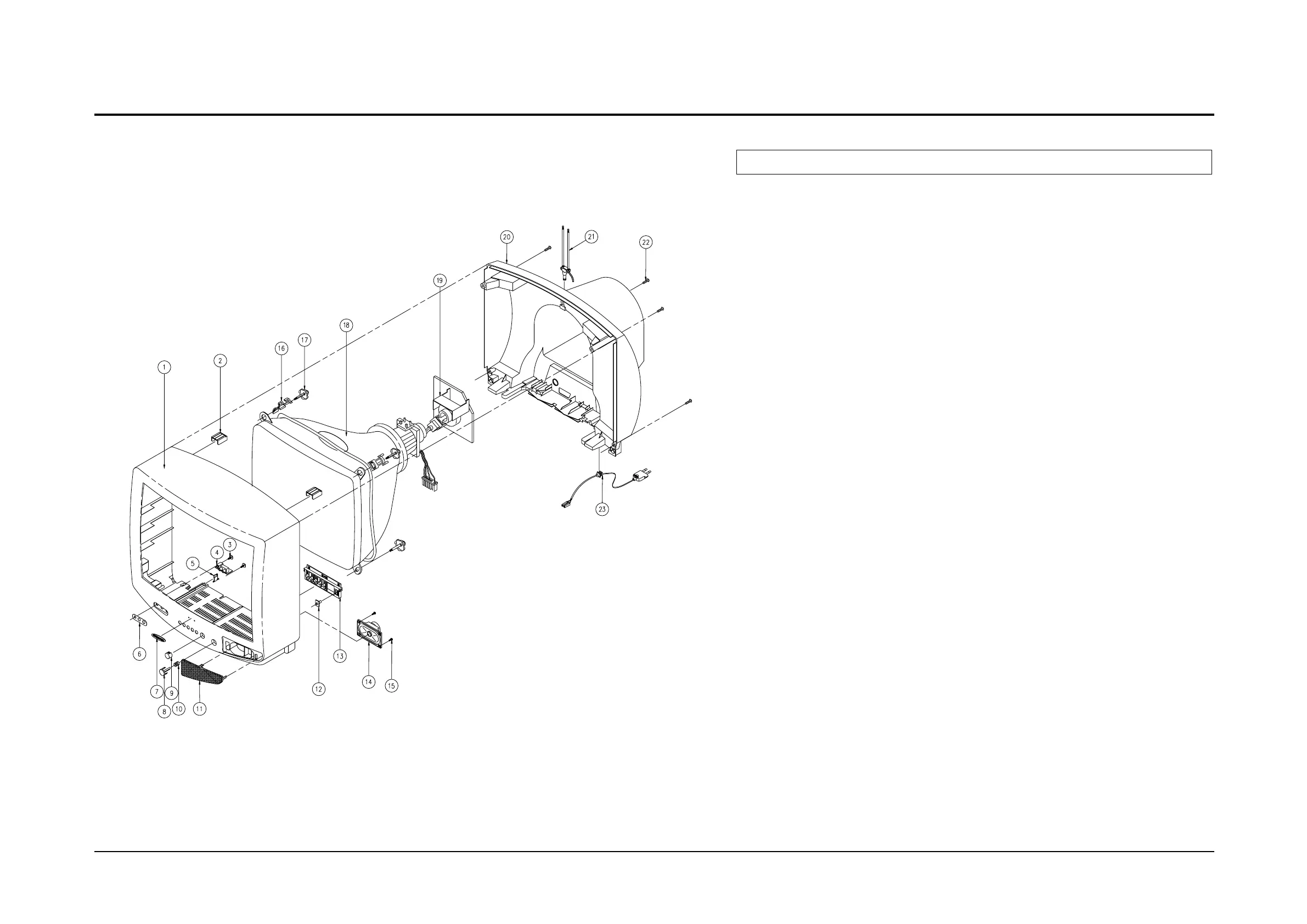

Exploded View & Parts List
Samsung Electronics 6-5
No Code No Description;Specification Q’ty Remark
6-5 CS2173S/BWT
1 AA91-00545A ASSY CABINET FRONT;DP,5373,(SPK) 64-0023 1
2 AA61-40010A BOSS-WING;-,HIPS,-,-,-,NTR,HB 2
3 6006-001095 SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL) 2
4 AA95-01042B ASSY-PCB,A/V FRONT;DP,2139,KS1A,AA95-900 1
5 AA61-40007A STOPPER-PCB;5038.5368,HIPS HB,-,-,-,NTR, 1
6 INLAY
7 AA64-70127F BADGE-BRAND;AL,SAMSUNG,SILVER,L40,R800,N 1
8 AA64-10132A KNOB-POWER;-,5373,NO-COATING,ABS,HB,BLK 1
9 AA64-40083A WINDOW-REMOCON;-,5373,-,PC,V0,VIOLET,- 1
10 AA61-60003T SPRING-CS;-,SUS304,0.5,OD7,H13.5,N5,-,-, 1
11 AA63-50097A GRILLE-WOOFER;-,5373,PA110,SECC,T0.5,-,- 1
12 AA64-40183A INDICATOR-LED;-,5373,-,ACRYL,-,-,- 1
13 AA64-10041A KNOB-CONTROL;-,5373,-,ABS,HB,BLK 1
14 AA96-10140B ASSY-SPEAKER;-,16OHM,3W,3001-001039,AA39 1
15 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 2 SPK+CF
16 AA65-30107A CLAMP-D,COIL;NYLON 66,V2,NTR,-,20~22 INC 4
17 AA60-10050R SCREW-ASSY;-,SWRCH18A,M5,L31.5,HH,+,WC,- 4
18 AA03-10024T CRT-COLOR;-,A51KQJ63X(H),+380mG,21,90de 1 CRT+CF
19 3704-001105 SOCKET-CRT;11P,20PI,26.5PI,NI,- 1
20 AA64-30710D CABINET-BACK;-,5338.73,-,HIPS,V2,BLK,-,- 1
21 AA42-00003A ANT ROD;-,3S,720mm,ABS,UL/CSA,- 1
22 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 4 CB+CF
23 AA96-20109B ASSY-POWER,CORD;-,CP2/NO(4.0),H/C250,KKP 1
