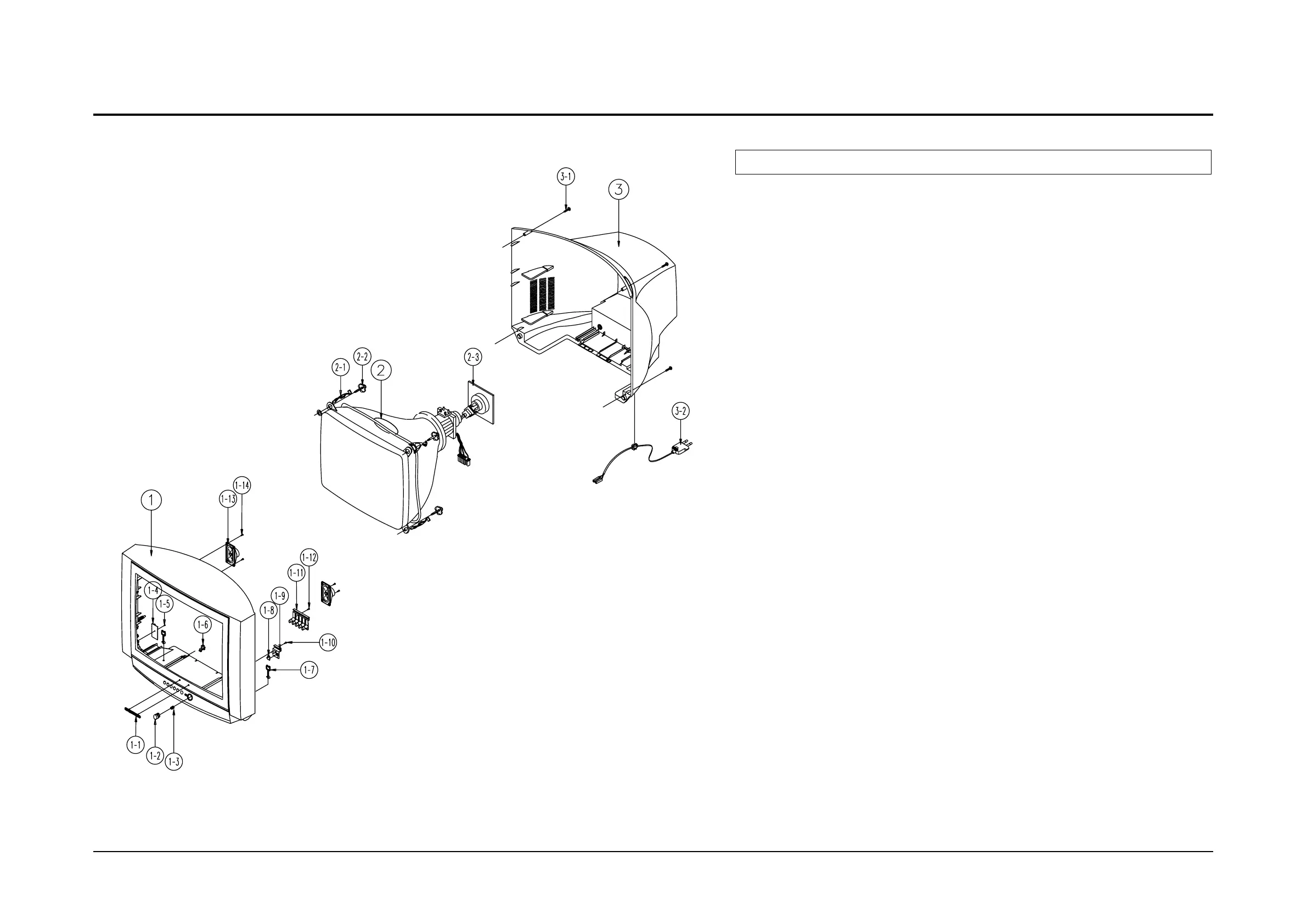

Exploded View & Parts List
6-6 Samsung Electronics
No Code No Description;Specification Q’ty Remark
6-6 CS21D8S/NWT
1 AA91-00617B ASSY CABINET FRONT;DP,21D8 CIS,(SPK)SV90 1
AA64-01423E CABINET FRONT;21D8 CIS,SV907P MDP,HIPS,H 1
1-1 AA64-70123B BADGE-BRAND;AL,R2000,SILVER,L=50,SAMSUNG 1
1-2 AA64-01425B KNOB POWER;21D8,ABS,-,G3676,SV907P,HB,-, 1
1-3 AA61-60003J SPRING-CS;-,SUS304,0.5,OD6,H12,N7,-,-,- 1
1-4 AA95-00944B ASSY-A/V SIDE;,DP - 21D8,KS1A,PAL,MONO A 1
1-5 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR 1 AV+CF
1-6 AA61-40113A STOPPER-PCB;501H,HIPS,-,-,HB,NTR,- 1
1-7 AA65-30105A CLAMP-WIRE;NYLON 66,V2,NTR,15MM,ALL MODE 1
1-8 AA64-01011B INDICATOR LED;29D8,ACRYL,-,CLR,-,-,- 1
1-9 AA64-01426B WINDOW REMOCON;21D8,PC,-,-,-,VOILET,-,- 1
1-10 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 1 WIN+CF
1-11 AA64-01012B KNOB CONTROL;29D8,ABS,-,G3676,SV-907P,HB 1
1-12 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 1 KC+CF
1-13 3001-000274 SPEAKER;5W,8ohm,90dB,160Hz 2
1-14 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 8 SPK+CF
2 AA03-10024T CRT-COLOR;-,A51KQJ63X(H),+380mG,21,90de 1
2-1 AA65-30107A CLAMP-D,COIL;NYLON 66,V2,NTR,-,20~22 INC 4
2-2 AA60-10050R SCREW-ASSY;-,SWRCH18A,M5,L31.5,HH,+,WC,- 4 CRT+CF
3 AA64-01422D CABINET BACK;21D8,HIPS,V2,BLK 1
3-1 AA60-10050T SCREW-TAPPING;-,SWRCH18A,M4,L20,RH,+,2S, 4 CB+CF
3-2 AA96-20109B ASSY-POWER,CORD;-,CP2/NO(4.0),H/C250,KKP 1
