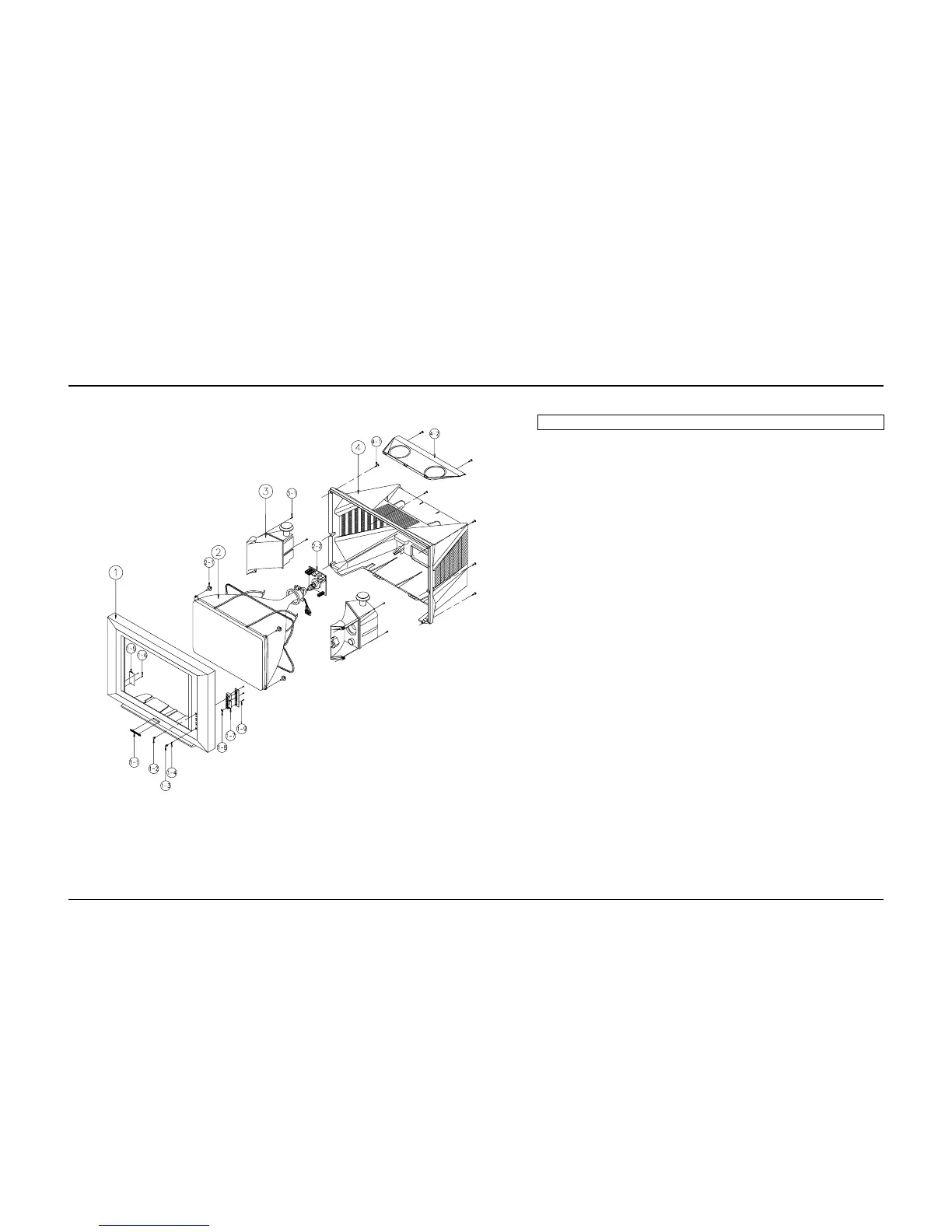

Exploded View & Parts List
6-2 Samsung Electronics
No Code No Description Specification Q’ty Remark
1 AA64-31106J CABINET FRONT ;CS-29A5WT KS3A PLANO,S704P 1
1-1 AA64-70117B BADGE-BRAND ;AL,SS,SILVER,L65,R2000,-,- 1
1-2 AA64-40455A WINDOW-REMOCON ;-,725A,-,PC,-,VIOLET,- 1
1-3 AA64-10709A KNOB-MASTER ;-,295A,VT803M MASTER,ABS,HB, 1
1-4 AA61-60005D SPRING-CS ;-,SUS304,0.4,OD5.5,H9,N4,-,-,- 1
1-5 AA41-00155A PCB-SIDE AV ;KS3A,1L,FR-1,245x245x1.6T,8A 1
1-6 6002-000522 SCREW-TAPPING ;TH,+,2,M4,L15,ZPC(BLK),SWR 2
1-7 AA64-10710A KNOB-CONTROL ;-,725A,-,ABS,HB,GRAY 1
1-8 AA64-40456B INDICATOR-LED ;-,295A,-,ACRYL,-,CLR,- 1
1-9 6002-000514 SCREW-TAPPING ;RH,+,2,M4,L15,ZPC(BLK),SWR 3
2 AA03-00075A CRT-COLOR ;-,A68QCP891X003(C),+380MG,29IN 1
2-1 AA60-10050V SCREW-ASSY ;WC,HH,+,M6,L30,SWRCH18A,ZPC(S 4
2-2 3704-001032 SOCKET-CRT ;8P,29PI,35.5PI,AU30U 1
3 * AA91-00333B ASSY HOLDER SPK ;-,PP,8ohm/15W,BLK,AA91-0 1
3-1 AA60-10050V SCREW-ASSY ;WC,HH,+,M6,L30,SWRCH18A,ZPC(S 4
4 AA64-31107D CABINET-BACK ;-,29A5,-,HIPS,HB,BLK,-,- 1
4-1 AA60-10050T SCREW-TAPPING ;RH,+,2S,M4,L20,ZPC(BLK),SW 7
4-2 AA63-30213D COVER-TOP,SPK ;-,29A5,-,HIPS,HB,BLK,-,- 1
6-2 CS29A5WT8X/XSG
To Next Page
