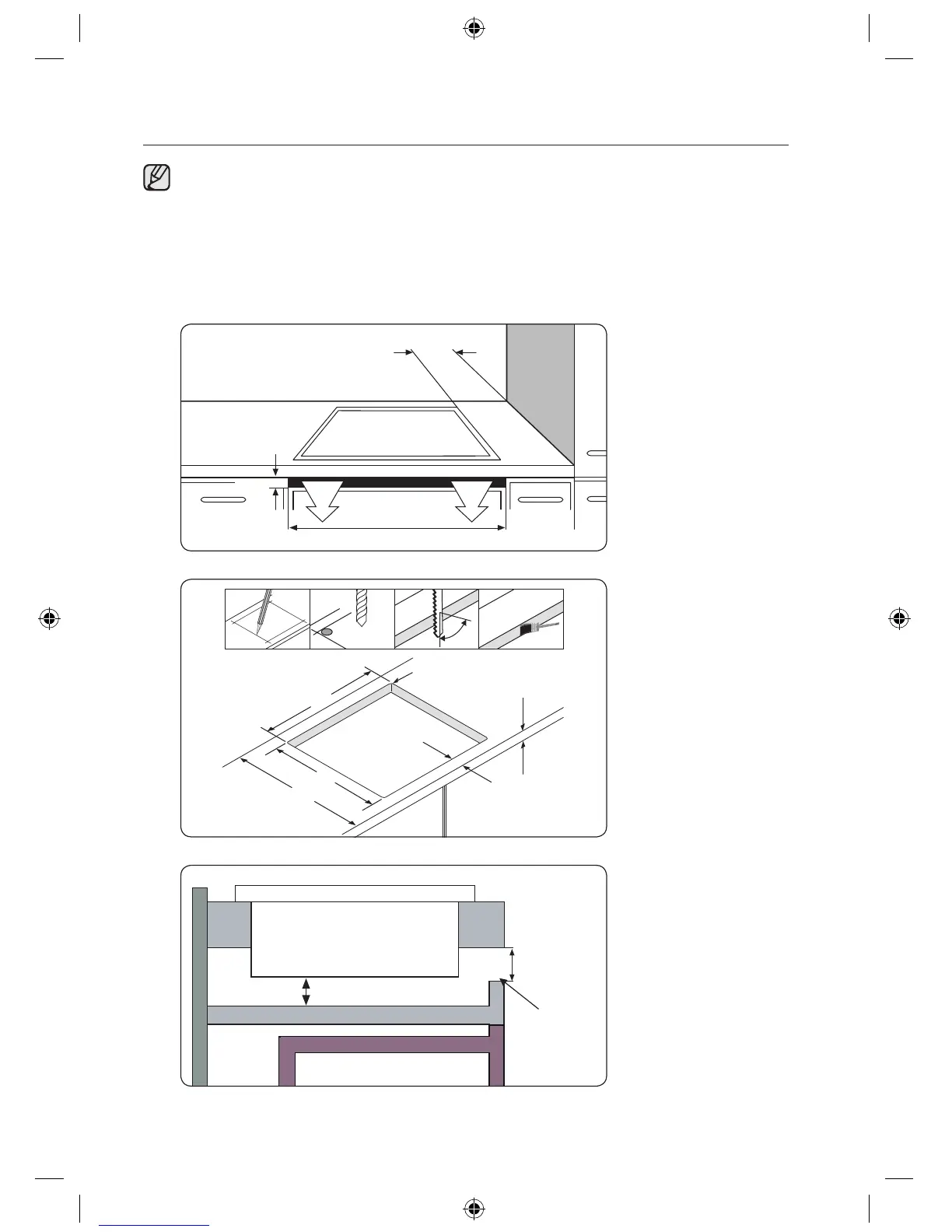

14_ installing the hob
INSTALLING INTO THE COUNTERTOP
Make a note of the serial number on the appliance rating plate prior to installation.
This number will be required in the case of requests for service and is no longer
accessible after installation, as it is on the original rating plate on the underside of
the appliance.
Pay special attention to the minimum space and clearance requirements.
Secure the brackets at both sides with the provided screws before mounting the
hob onto the brackets.
x 4
ø 6
90 °
560
±1
R3
min. 20
50
490
±1
600
Min. 50 mm
Min. 5 mm
560 mm
Induction Hob
ventilation gap
20 mm
min. 5 mm
Insulation Panel
Oven
