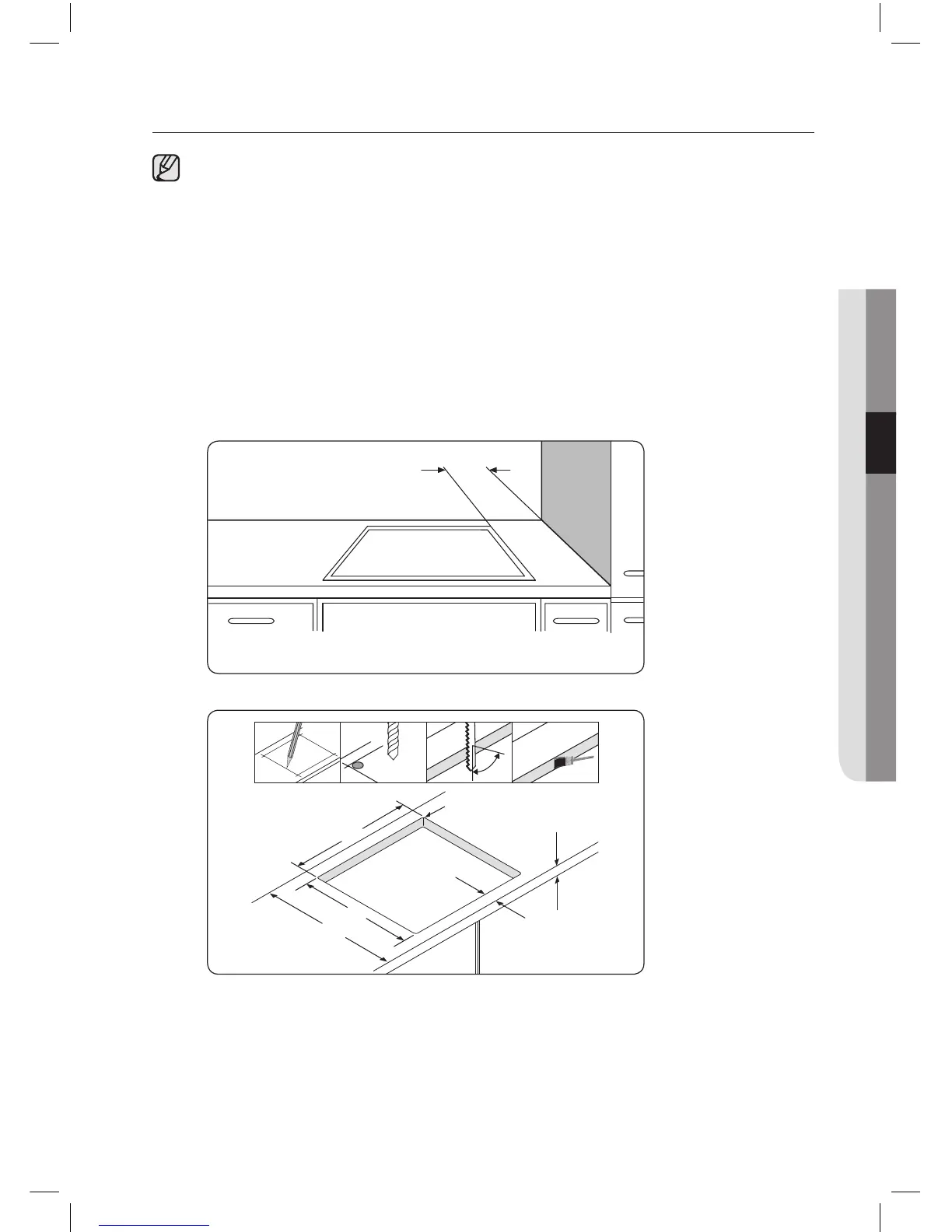

INSTALLING INTO THE COUNTERTOP
Make a note of the serial number on the appliance rating plate
prior to installation.
This number will be required in the case of requests for
service and is no longer accessible after installation, as it is on
the original rating plate on the underside of the appliance.
Pay special attention to the minimum space and clearance
requirements.
Secure the brackets at both sides with the provided screws
before mounting the hob onto the brackets.
03 INSTALLING THE HOB
x 4
ø 6
90 °
560
±1
R3
min. 20
50
490
±1
600
Min. 50 mm
