Using the COVER-JACK

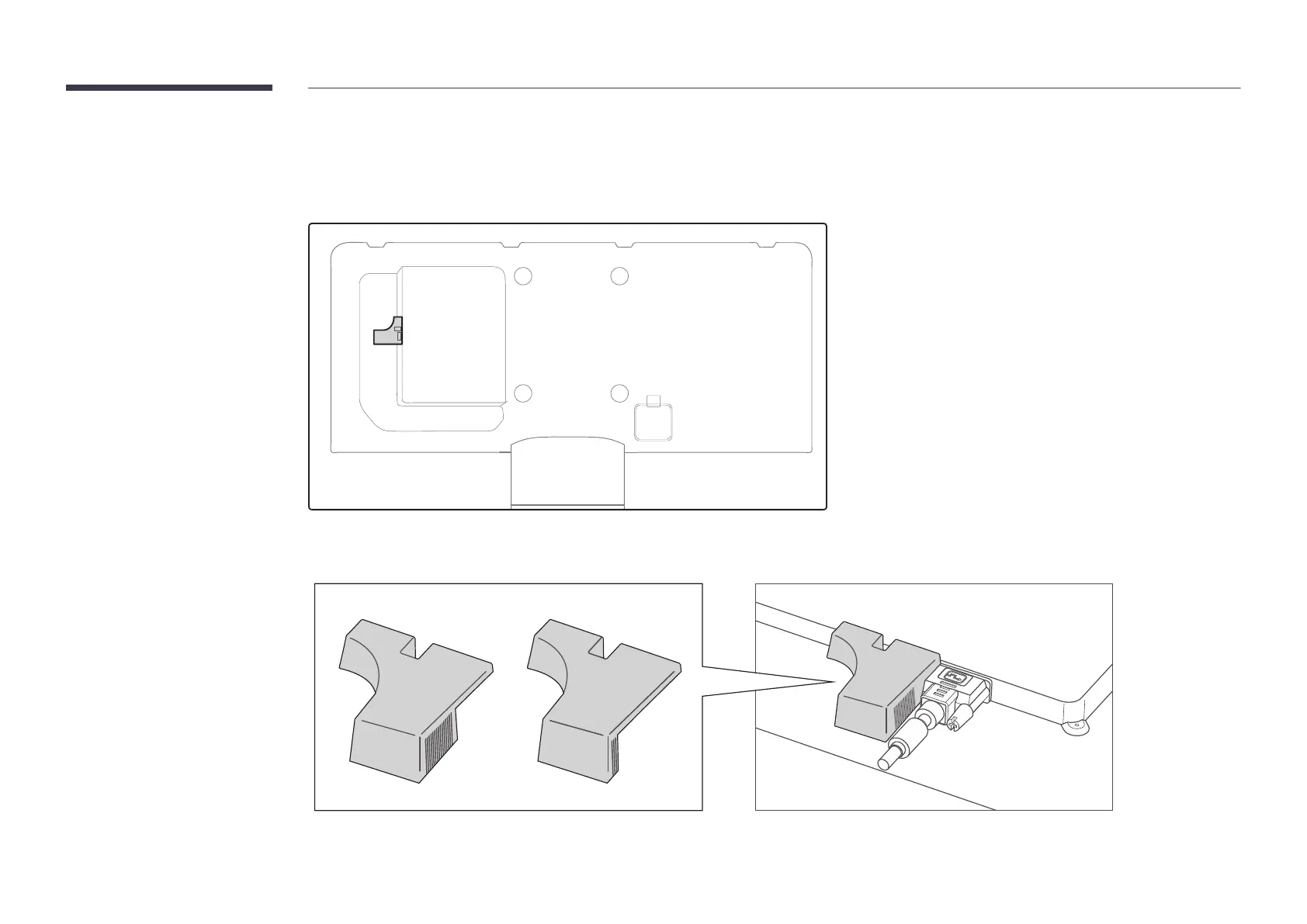

To prevent theft of the SD memory card or any other USB device, install the COVER-JACK.

―

When using a DVI cable, make sure to cut off the side of the COVER-JACK first.

―

Cut out the Cover-Jack according to the DVI cable size before use.
