► CN2
1.CommunicationPort(Tx)
2.CommunicationPort(Rx)
3.OutputtheResetSignal
4.5V
5. Ground
6.15V
7. MICOM Writing
► CN6
1. CO
2. Empty Pin
3. NO
4. Empty Pin
5. NC
76 _ PCB Diagram

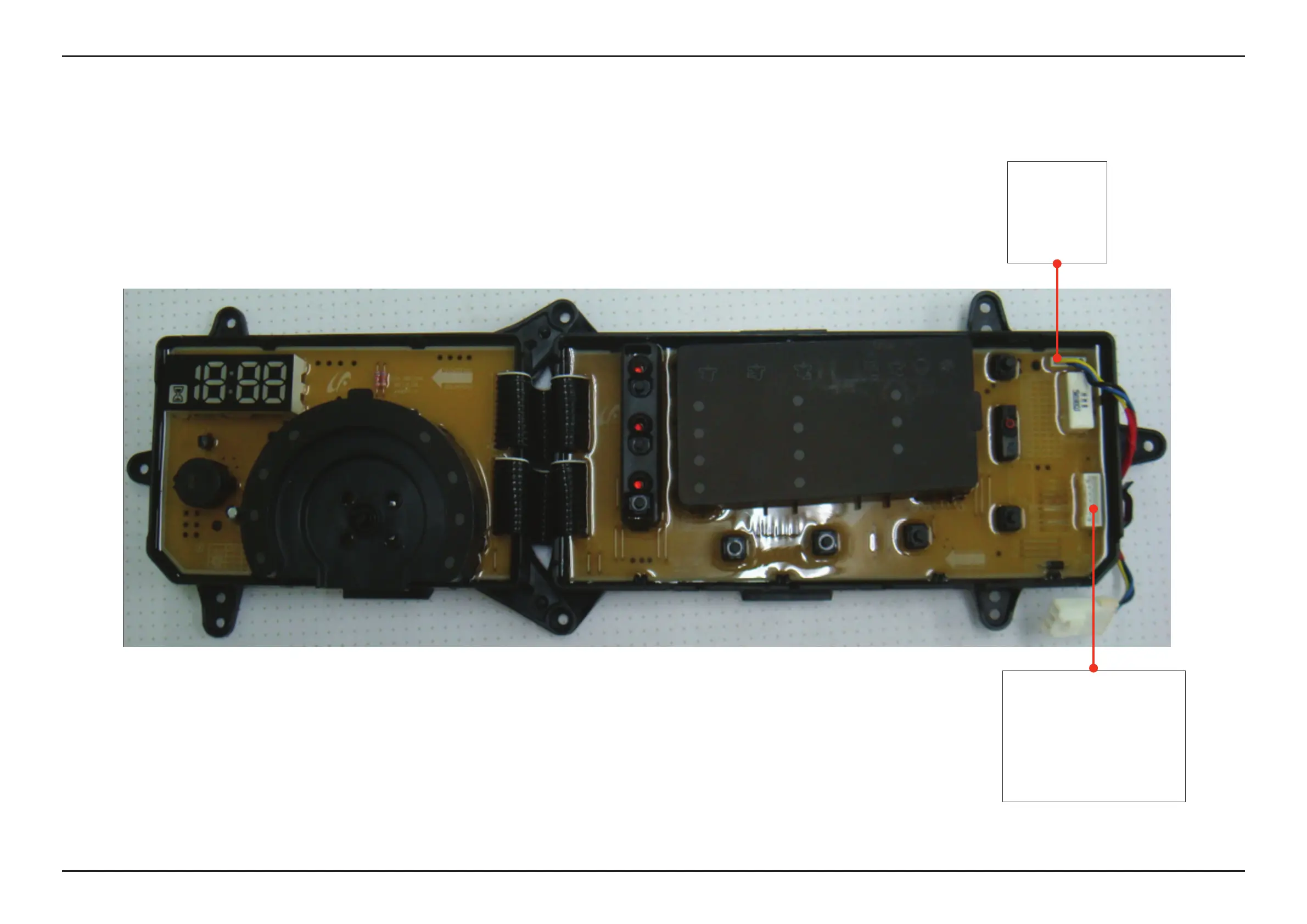

6-4. DETAILED DESCRIPTIONS OF CONTACT TERMINALS (SUB PCB)
