78 _ Wiring Diagram
 Reference Information
BLK BLACK
BLU BLUE
GRN GREEN
GRY GRAY
NTR NATURAL
ORG ORANGE
PNK PINK
RED RED
SKYBLU SKYBLUE
VIO VIOLET
WHT WHITE
YEL YELLOW

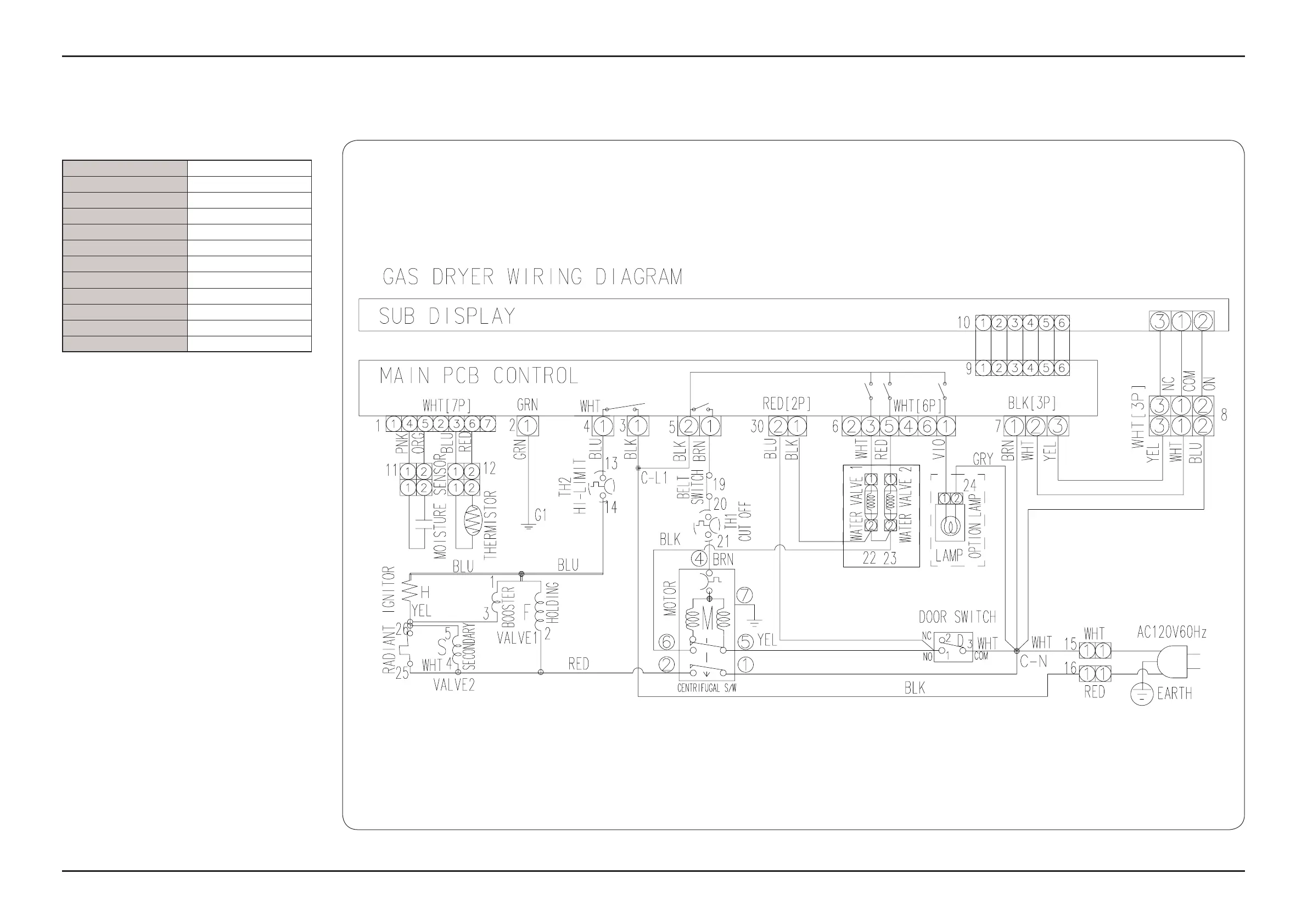

7-2. WIRING DIAGRAM (GAS DRYER)
Steam Models Only
