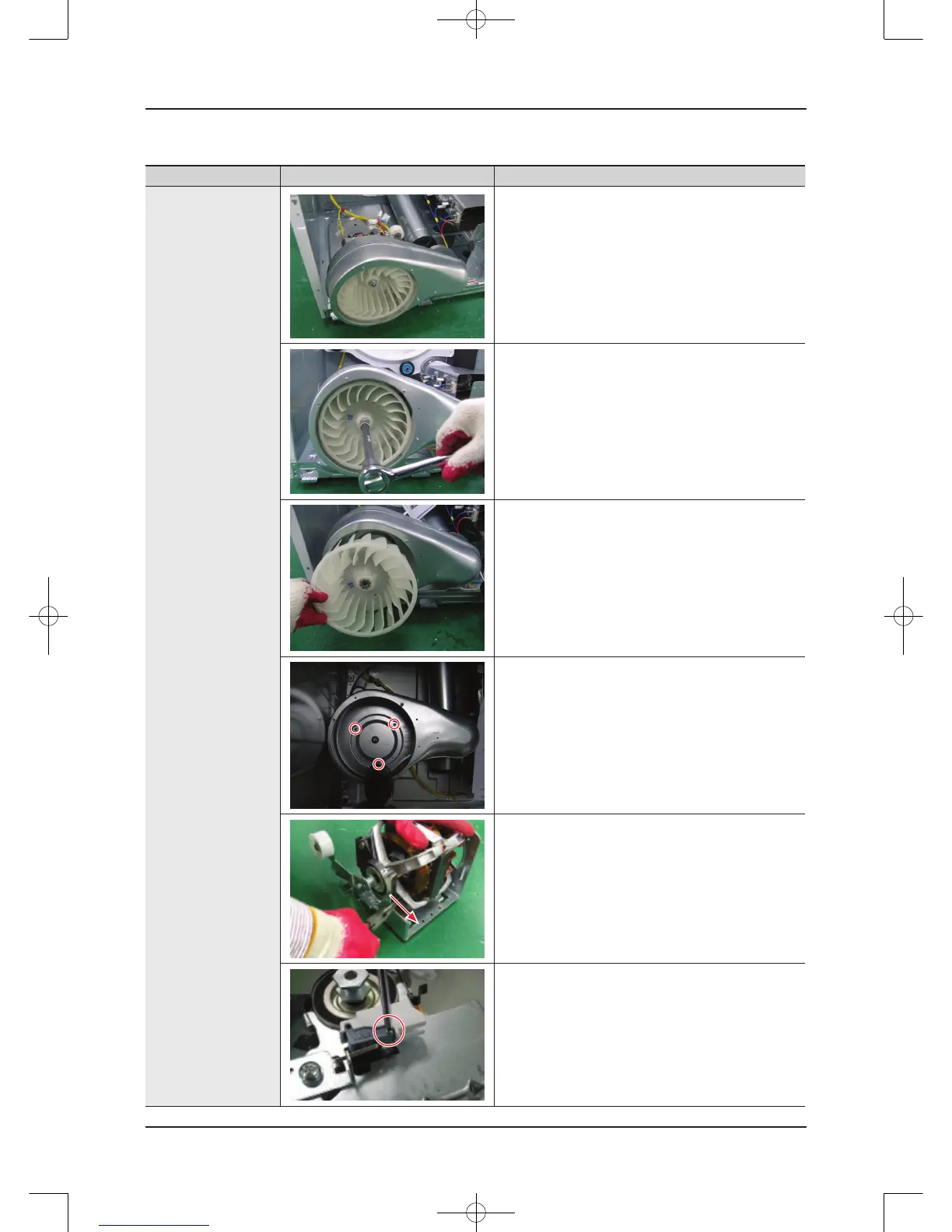

Disassembly and Reassembly _ 9
Part Figure Description
Assy Motor Removal
(Continued)
8. SeparatetheMotorAssyattheBottomPlate.
9. Remove1NutFan.
CW to remove.
CCWtoassemble.
10.RemovetheFan.
11.Remove3screwsfromtheCover-DuctFan.
12.Removethe2SpringPlate.
13.Removethe1screwBeltcutOffSwitch.
