38 _ PBA Diagram

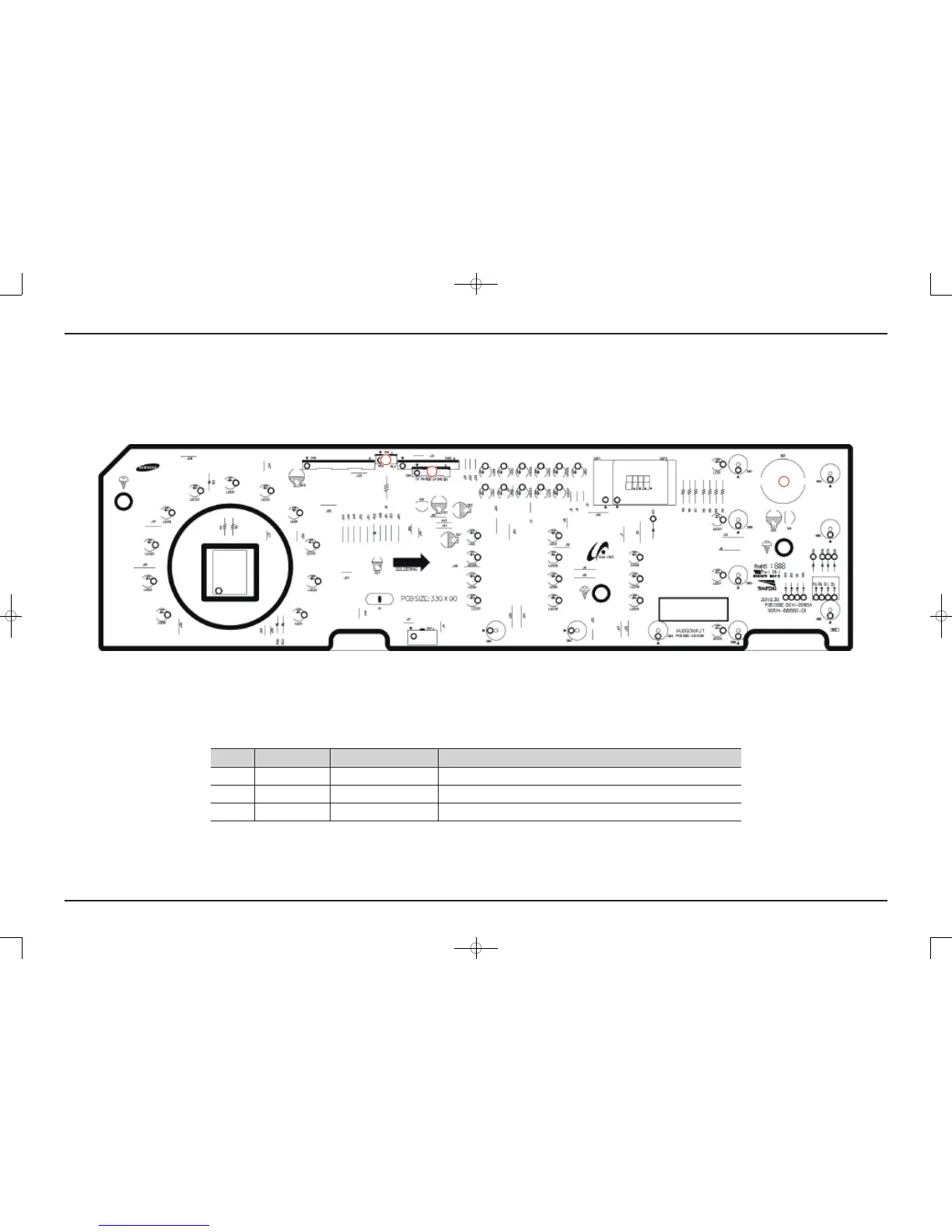

5-3. SUB PBA
► ThisDocumentcannotbeusedwithoutSamsung’sauthorization.
Location Part No. Function Description
1 MCUCN11 Connect Main PBA ReceivespowerfromtheMainPBAandprovidesacommunicationsfunction.
2 BZ1 BUZZER GeneratessoundwhentheMenukeyispressed,theEncoderoperatesandthemenuisclosed.
3 CN1 ConnectLamp -
1
2
3
