PBA Diagram _ 41

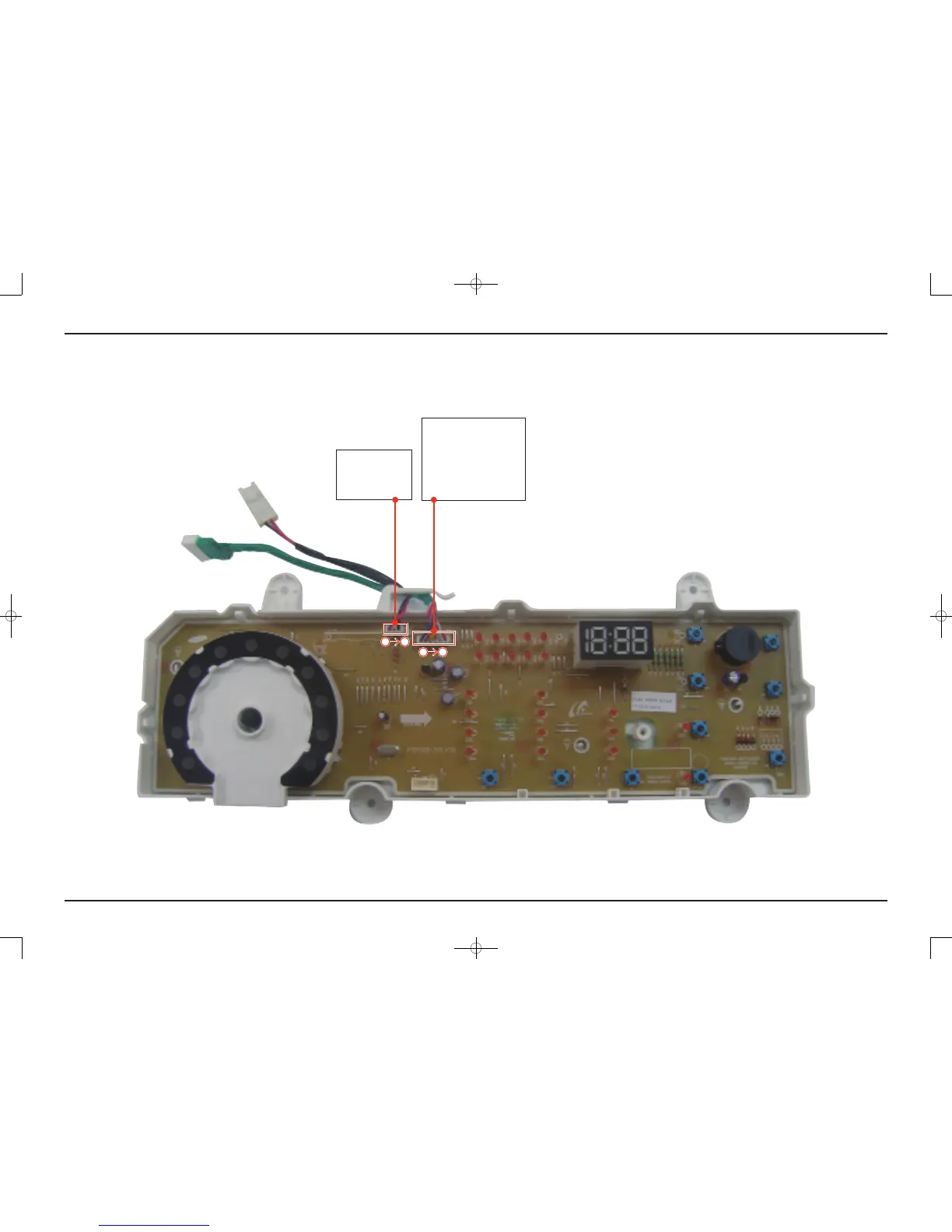

5-4. DETAILED DESCRIPTIONS OF CONTACT TERMINALS (SUB PBA)
► CN1
1. 12V
2. Empty Pin
3. TUB_LIGHT
► CN11_MCU
1. CommunicationsPort(Tx)
2. CommunicationsPort(Rt)
3. OutputstheResetSignal
4. 5V
5. GROUND
6. 12V
31
61
复件 Hudson_Dryer_SM_E.indb 41 2012-4-2 15:20:58
