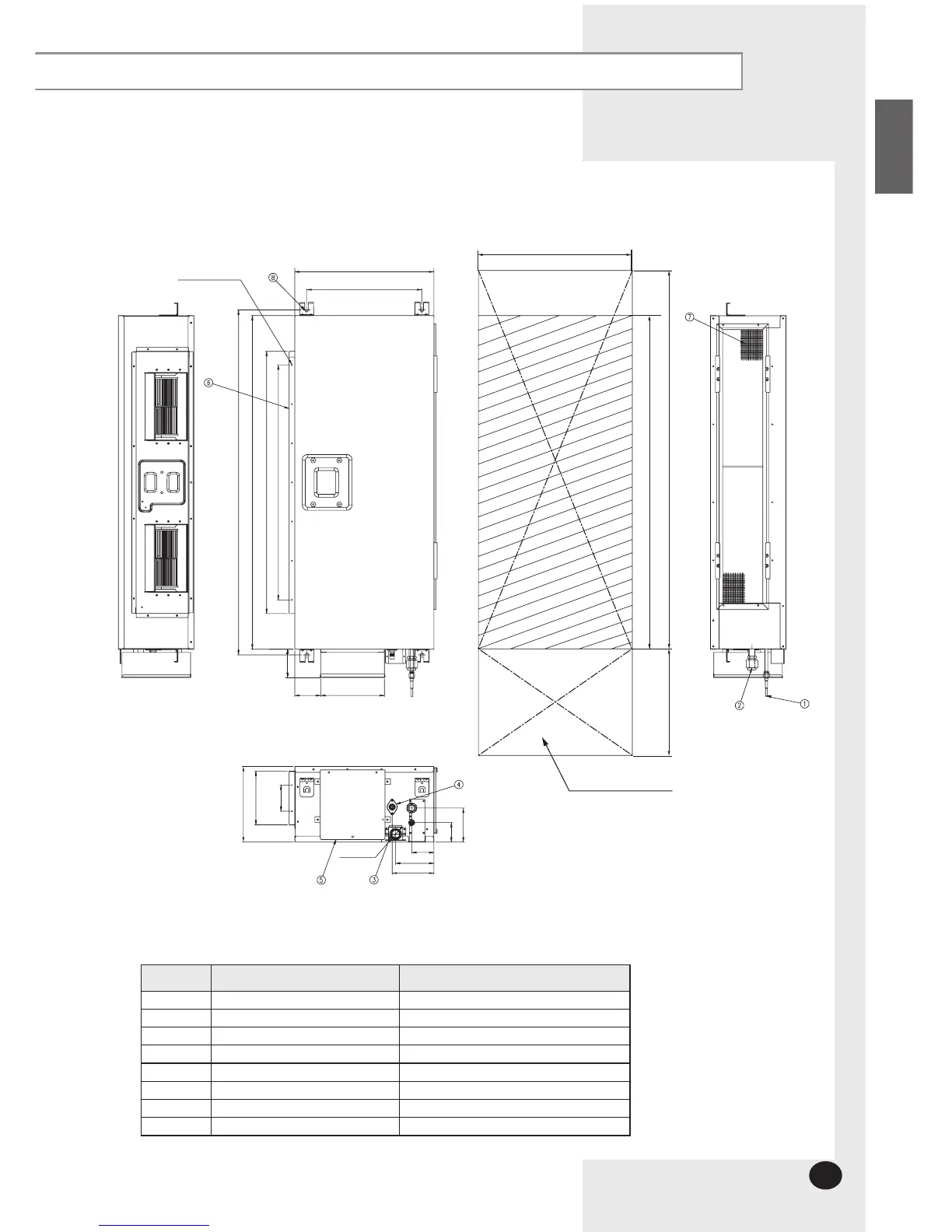

Deciding on where to install the indoor unit (Continued)
No. Name Description
1 Liquid pipe connection ø9.52
2 Gas pipe connection ø15.88
3 Drain pipe connection OD32 ID26(without drain pump)
4 Drain pipe connection Using drain pump (Optional)
5 Power supply connection
6 Air discharge flange
7 Air filter
8 Hook M8~M10
Unit : mm
