Samsung HT-D330 - Description; Front and Rear Panel Overview

8 English
English 9
01 Getting Started


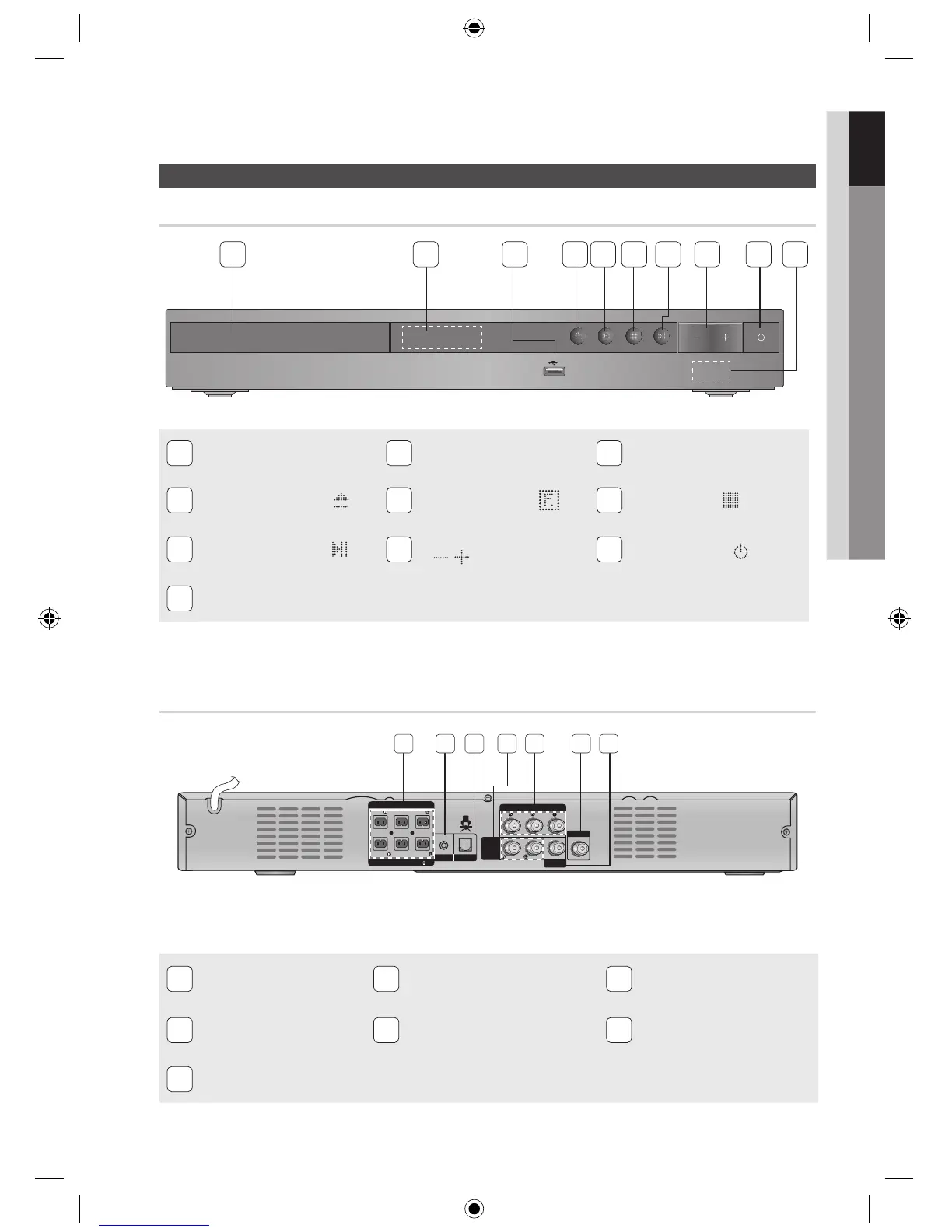

Front Panel
5V 500mA
  
Rear Panel
SURROUND SURROUND
SUBWOOFER
CENTER FRONTFRONT
SPEAKERS OUT
SPEAKER IMPEDANCE : 3
FM ANT
VIDEO OUT
AUX IN
COMPONENT OUT
DIGITAL
AUDIO IN
ONLY
FOR SERVICE
 

SPEAKER OUTPUT
CONNECTORS

ONLY FOR SERVICE

EXTERNAL DIGITAL OPTICAL IN
JACK (DIGITAL AUDIO IN)

AUX IN JACKS

COMPONENT VIDEO OUTPUT
JACKS

FM ANTENNA JACK

VIDEO OUT JACK
  

DISC TRAY

DISPLAY

USB PORT

OPEN/CLOSE BUTTON ( )

FUNCTION BUTTON ( )

STOP BUTTON ( )

PLAY/PAUSE BUTTON ( )

VOLUME CONTROL BUTTON
( , )

POWER BUTTON ( )

REMOTE CONTROL SENSOR
   

