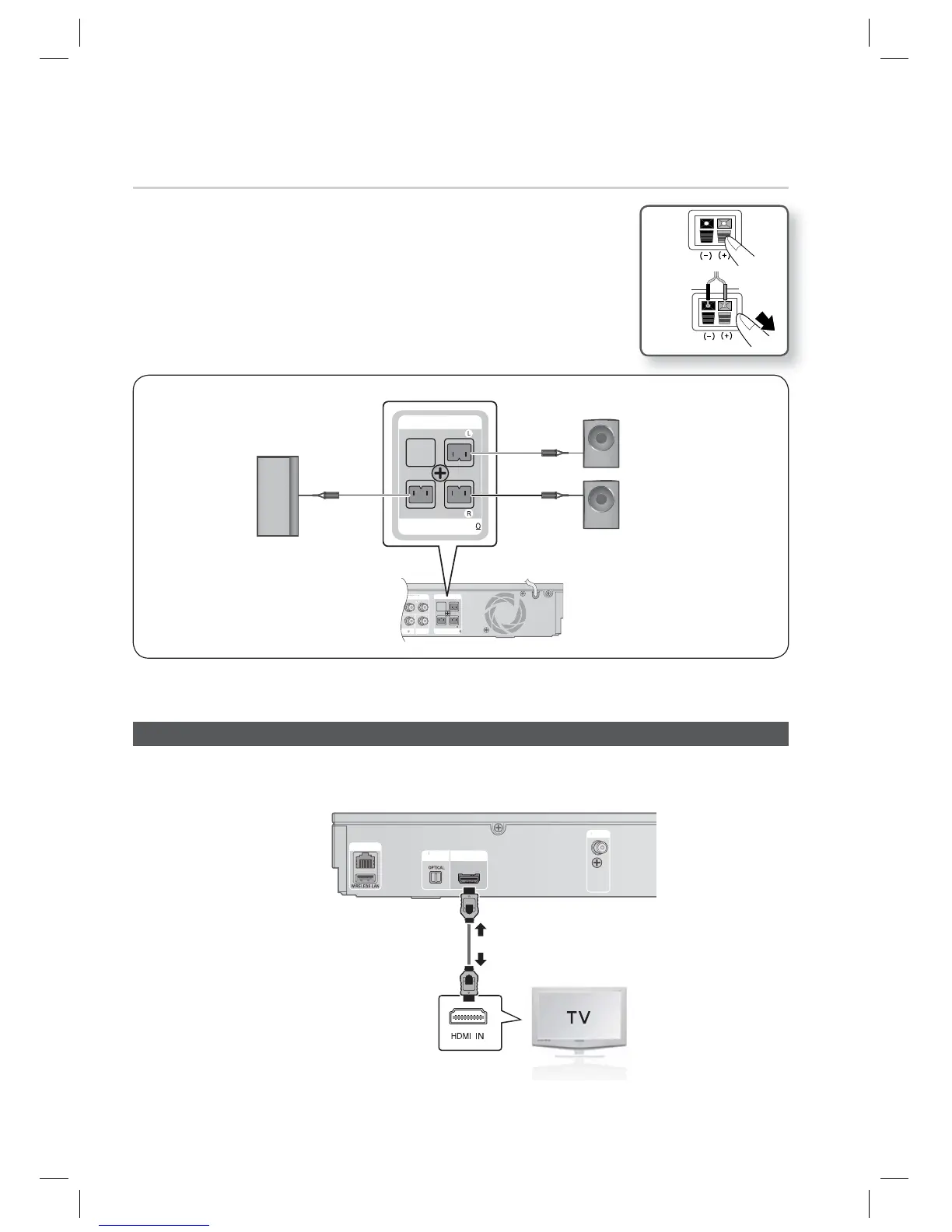

Connecting The Speakers
Press down the terminal tab on the back of the speaker.
Insert the black wire into the black terminal (–) and the red wire into the
red terminal (+), and then release the tab.
Connect the connecting plugs to the back of the product by matching the
colours of the speaker plugs to the speaker jacks.
1.
2.
3.
Black
Red
FRONT
SPEAKERS OUT
SPEAKER IMPEDANCE : 3
VIDEO OUTUX IN
SUBWOOFER
FRONT
OMPONENT OUT
S
VIDEO OUT
UX IN
ONENT OUT
FRONT
SPEAKERS OUT
SPEAKER IMPEDANCE : 3
SUBWOOFER
FRONT
Front Speaker (R)
Subwoofer
Front Speaker (L)
Connecting the Video Out to your TV
Choose one of the three methods for connecting to a TV.
FM ANT
HDMI OUT
DIGITAL
AUDIO IN
OPTICAL
LAN
WIRELESS LAN
FM AN
T
D
IGITAL
A
UDIO I
N
L
A
N
HDMI OUT
HDMI IN
METHOD 1
