Samsung HT-E5500K - Connecting the Optional Wireless Receiver Module

|
18 English
Connections
Connecting the Optional Wireless Receiver Module

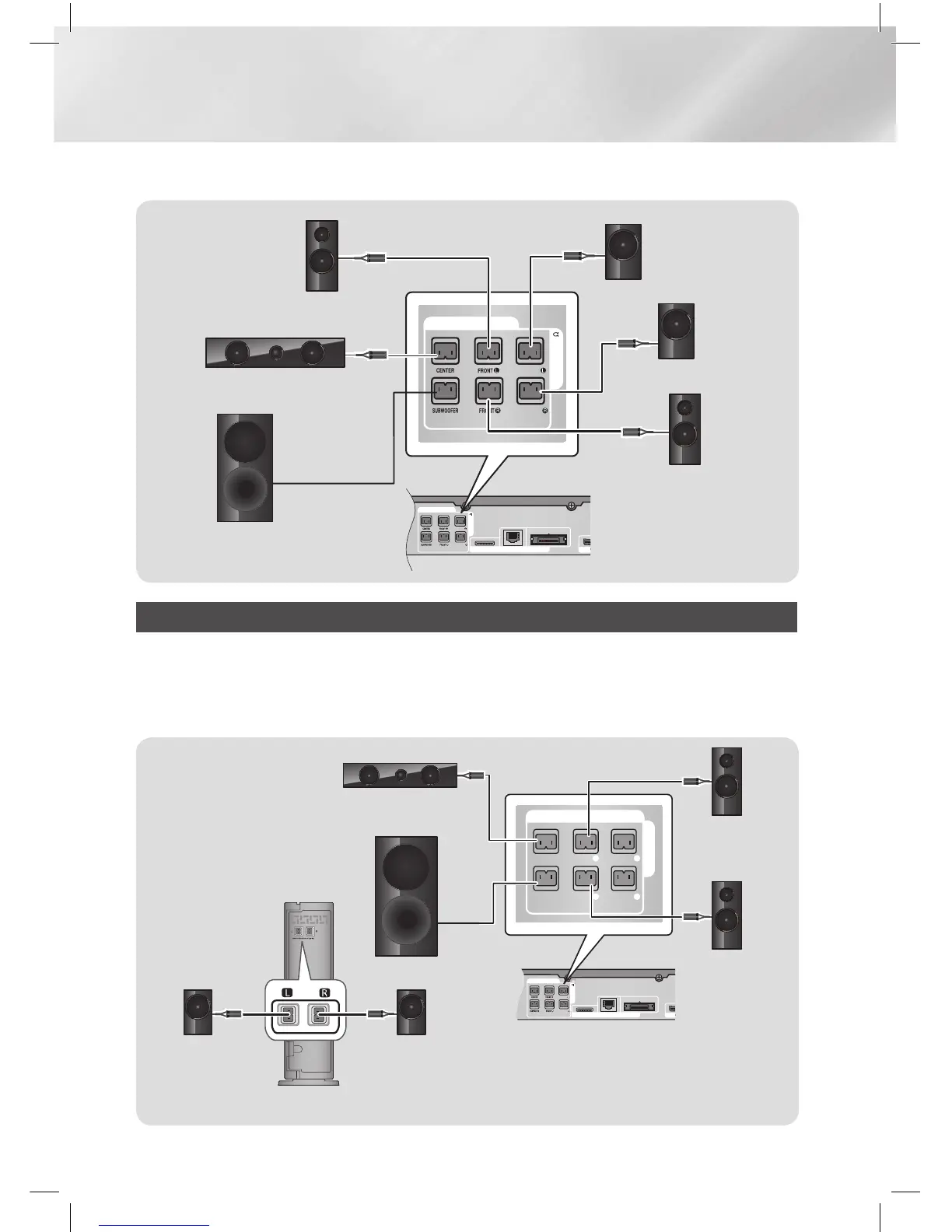

To connect the surround speakers wirelessly, you have to purchase the wireless receiver module and TX
card from your Samsung retailer.
• This product should be connected with the SWA-5000 only.
In case of HT-E5500K
In case of HT-E5500K
LANiPod
WIRELESS
IM PEDANCE : 3
SPEAKERS OUT
SURROUND
SURROUND
HDMI OUT
IM PEDANCE : 3
SPEAKERS OUT
SURROUND
SURROUND
Front
Speaker (R)
Front
Speaker (L)
Subwoofer
Center Speaker
Surround
Speaker (L)
Surround
Speaker (R)
LANiPod
WIRELESS
IM PEDANCE : 3
SPEAKERS OUT
SURROUND
SURROUND
HDMI OUT
IM PEDANCE : 3 Ω
SPEAKERS OUT
CENTER
SUBWOOFER
FRONT L SURROUND L
FRONT
R
SURROUND
R
Front
Speaker (R)
Front
Speaker (L)
Subwoofer
Center Speaker
Surround
Speaker (L)
Surround
Speaker (R)
Refer to page 16 for the speakers of HT-E5530K/HT-E5550K.
