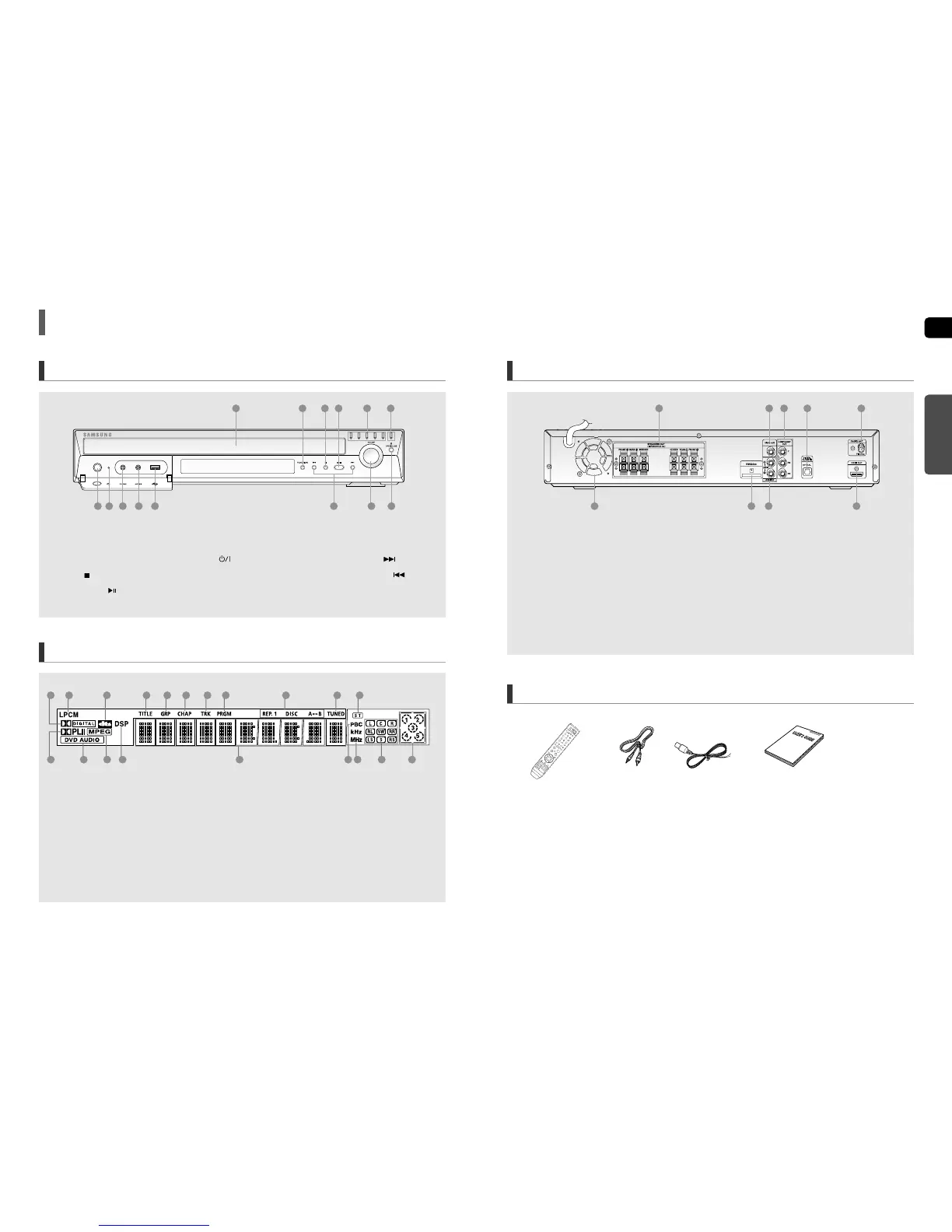

1. Disc Tray
2. Function button
3. Stop ( ) button
4. Play/Pause ( ) button
5. Direct Play buttons
6. Disc Change button
7. Power ( ) button
8. Standby indicator
9. Headphone Jack
10.AUX IN 1 Connector
11. USB Port
12.Tuning Up & Skip ( ) button
Tuning Down & Skip ( ) button
13.Volume Control
14.Open/Close button
1. 5.1 Channel Speaker Output Connector
2. Video Output Connector
Connect the TV's video input jacks (VIDEO IN) to
the VIDEO OUT connector.
3. Component Video Output Connector
Connect a TV with component video inputs to these jacks.
4. External Digital Optical Input Connector
Use this to connect external equipment capable of digital
output.
5. FM 75Ω COAXIAL Jack
6. Cooling Fan
7. TX Card Connection(WIRELESS)
8. AUX IN 2 Connectors
9. HDMI Output Jack
1. DOLBY DIGITAL indicator
2. LINEAR PCM indicator
3. DTS indicator
4. TITLE indicator
5. GROUP indicator
6. CHAPTER indicator
7. TRACK indicator
8. PROGRAM indicator
9. REPEAT indicator
10. TUNED indicator
11. STEREO indicator
12. DOLBY PLll indicator
13. DVD AUDIO indicator
14. MPEG indicator
15. DSP indicator
16. System Status Display
17. PBC indicator
18. RADIO FREQUENCY indicator
19. SPEAKER indicator
20. DISC(1~5) indicator
1
7 8
3 4
9
10 12 13 14
2
11 8
9
8
9
10 11
5 6 1
6 7
3 42 5
1 6 73 42 5
141312 1817 201915 16
PREPARATION
