ENG
CONNECTIONS
1514

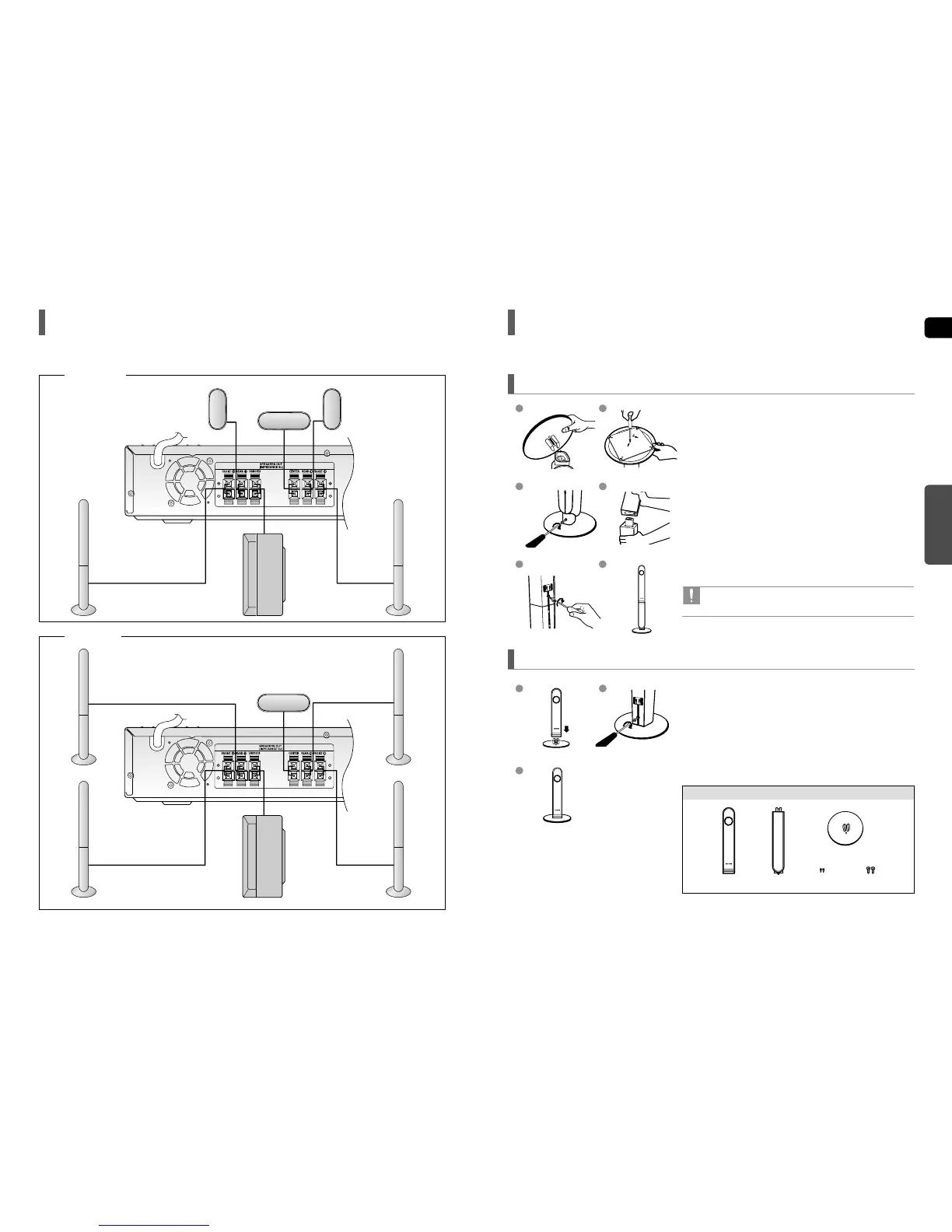

Connecting the Speakers
(Con’t)
Rear Speaker (R)
Front Speaker (R)
Subwoofer
Center Speaker
Rear Speaker (L)
Front Speaker (L)
HT-TX52
Rear Speaker (R)
Front Speaker (R)
Subwoofer
Center Speaker
Rear Speaker (L)
Front Speaker (L)
HT-TX55
1 Connect the SPEAKER with the STAND BASE.
2 Turning the screw (B) clockwise, connect to a hole on the
rear of the speaker using a screwdriver as shown in the
illustration.
3 This is the successfully assembled SPEAKER.
How to Install the Speaker and the Stand (Half Tallboy Type)
1
3
2
Speaker Installation
1 Turn the STAND upside-down and connect it to
the STAND BASE.
2 Turning the screw (A) clockwise, connect it to two holes
marked with the arrow using a screwdriver as shown in
the illustration.
3 Turning the supplied screw (B) clockwise, connect it to a
hole on the rear of the Speaker STAND.
4 Connect the assembled stand to the SPEAKER.
5 Turning the screw (B) clockwise, connect to a hole on
the rear of the speaker using a screwdriver as shown
in the illustration.
6 This is the successfully assembled speaker.
How to Install the Speaker and the Stand (Tallboy Type)
•
Make sure that the speaker is installed on a flat and stable area.
Otherwise it may be easily knocked over.
SPEAKER STAND
STAND BASE
Screw (B)Screw (A)
1
3 4
2
5 6
Component
