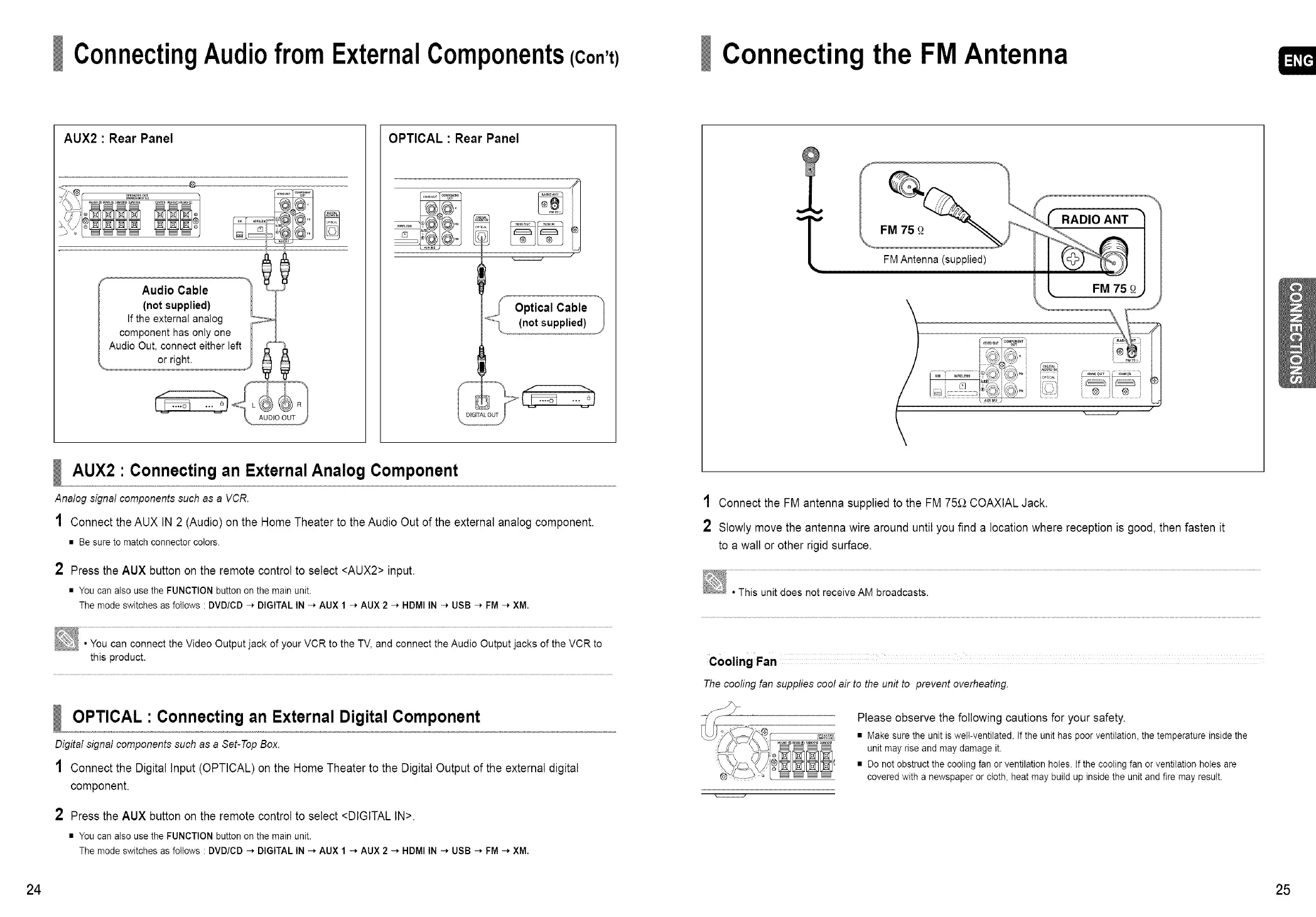

ConnectingAudiofromExternalComponents(Con't)
AUX2 : Rear Panel OPTICAL : Rear Panel
AUX2 • Connecting an External Analog Component
Analog signal components such as a VCR.
1 Connect the AUX IN 2 (Audio) on the Home Theater to the Audio Out of the external analog component.
• Be sure to match connector colors.
2 Press the AUX button on the remote control to select <AUX2> input.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows " DVD/CD -_ DIGITAL IN -_ AUX 1 -_ AUX 2 -_ HDMI IN -_ USB -_ FM -_ XM.
• You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to
this product.
OPTICAL" Connecting an External Digital Component
Digital signal components such as a Set-Top Box.
1 Connect the Digital Input(OPTICAL) on the Home Theater to the Digital Output of the external digital
component.
2 Press the AUX button on the remote control to select <DIGITAL IN>.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows • DVD/CD -_ DIGITAL IN -_ AUX 1 -_ AUX 2 -_ HDMI IN -_ USB -_ FM -_ XM.
| Connecting the FM Antenna
T
FM Antenna (supplied)
• FM 75 L)J
/
1 Connect the FM antenna supplied to the FM 75_ COAXIAL Jack.
2 Slowly move the antenna wire around until you find a location where reception is good, then fasten it
to a wall or other rigid surface.
• This unit does not receive AM broadcasts.
The cooling fan supplies cool air to the unit to prevent overheating.
Please observe the following cautions for your safety.
Make sure the unit is weIFventiiated. Ifthe unit has poor ventilation, the temperature inside the
unit may rise and may damage it.
• Do not obstruct the cooling fan or ventilation holes, tfthe cooling fan or ventilation holes are
covered with a newspaper or cloth, heat may build up inside the unit and fire may result.
24 25
