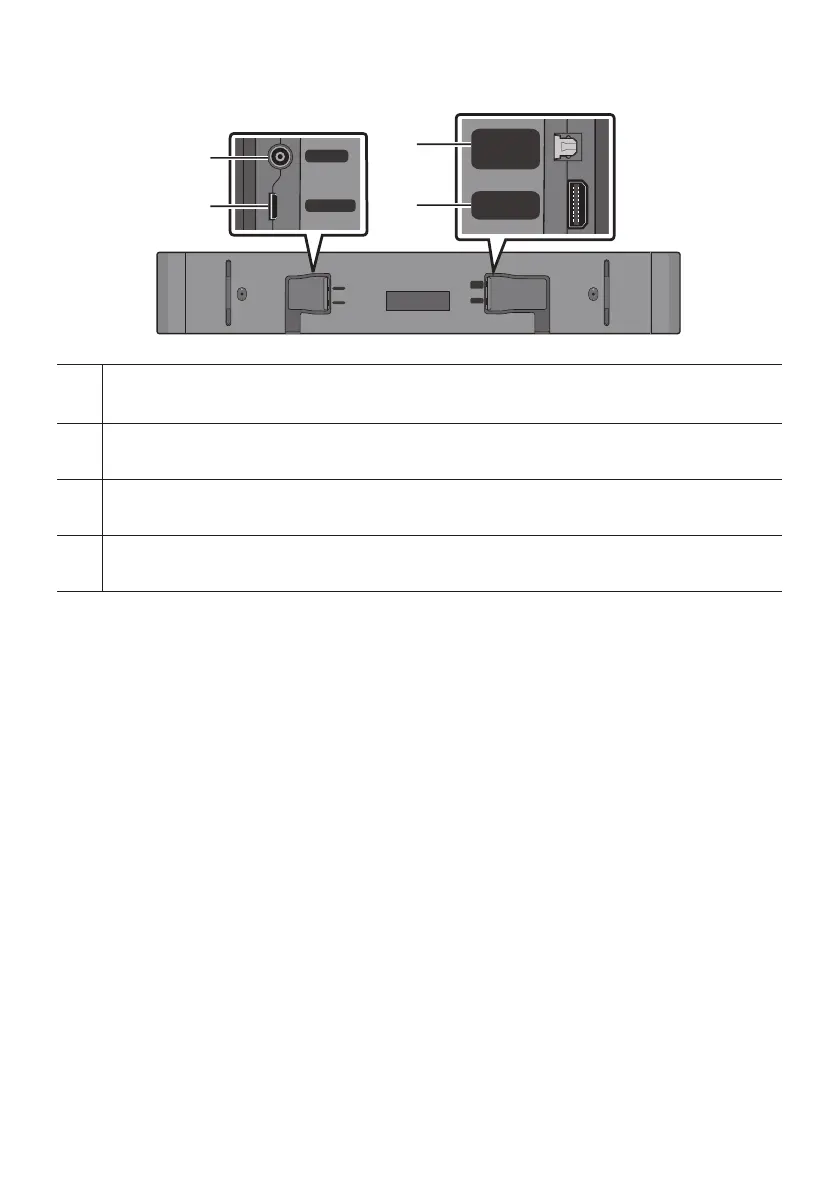

Bottom Panel of the Soundbar
SERVICE
DC 19V
DIGITAL
AUDIO IN
(OPTICAL)
HDMI
(ARC)
DIGITAL
AUDIO IN
(OPTICAL)
HDMI
(ARC)
SERVICE
DC 19V
DIGITAL
AUDIO IN
(OPTICAL)
HDMI
(ARC)
SERVICE
DC 19V
󱂓
󱂕
󱂔
󱂖
󱂓
DC 19V (Power Supply In)
Connect the AC/DC power adapter. (See page 17)
󱂔
SERVICE
Connect a USB storage device to upgrade the product's software.
󱂕
DIGITAL AUDIO IN (OPTICAL)
Connect to the digital (optical) output of an external device. (See page 28)
󱂖
HDMI (ARC)
Connect to the HDMI (ARC) port on a TV. (See page 18)
• When disconnecting the power cable of the AC/DC power adapter from a wall outlet, pull the plug.
Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between
components are complete.
