Samsung LE32B55 series User Manual

6-3
6. Wiring Diagram

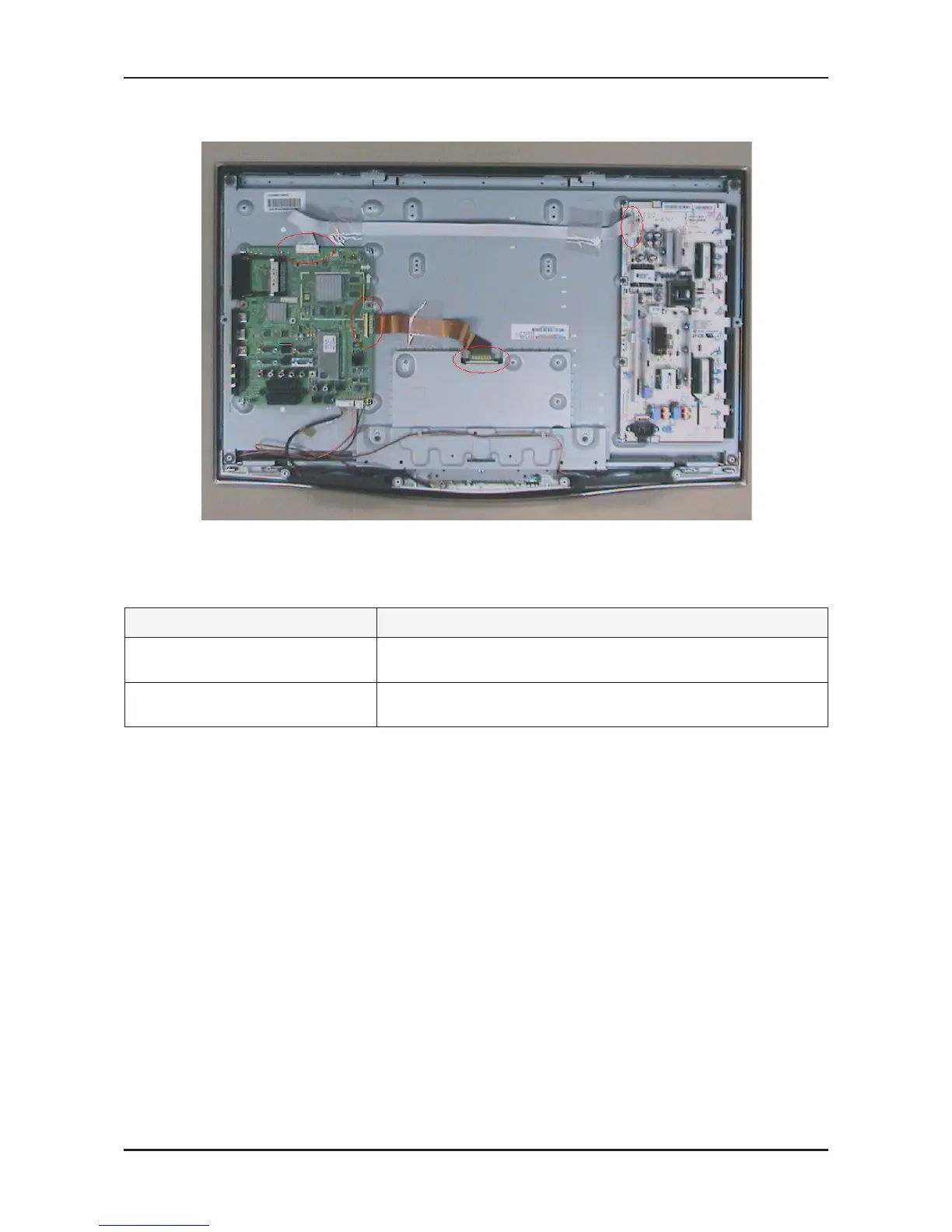

6-2. Wiring Picture
6-3. Connector Functions
Connector Functions
Panel <-> CN7005 The LVDS signal transfered Panel to Main Board.
* defective symptom : No pcture but normal sound
IP, SMPS <-> CN1001 Supply dimming and main power from IP,SMPS to Main Board.
* defective symptom : No pcture, repeat power On/Off
