Samsung MCU-S6NEE1N User Manual

15
ENGLISH

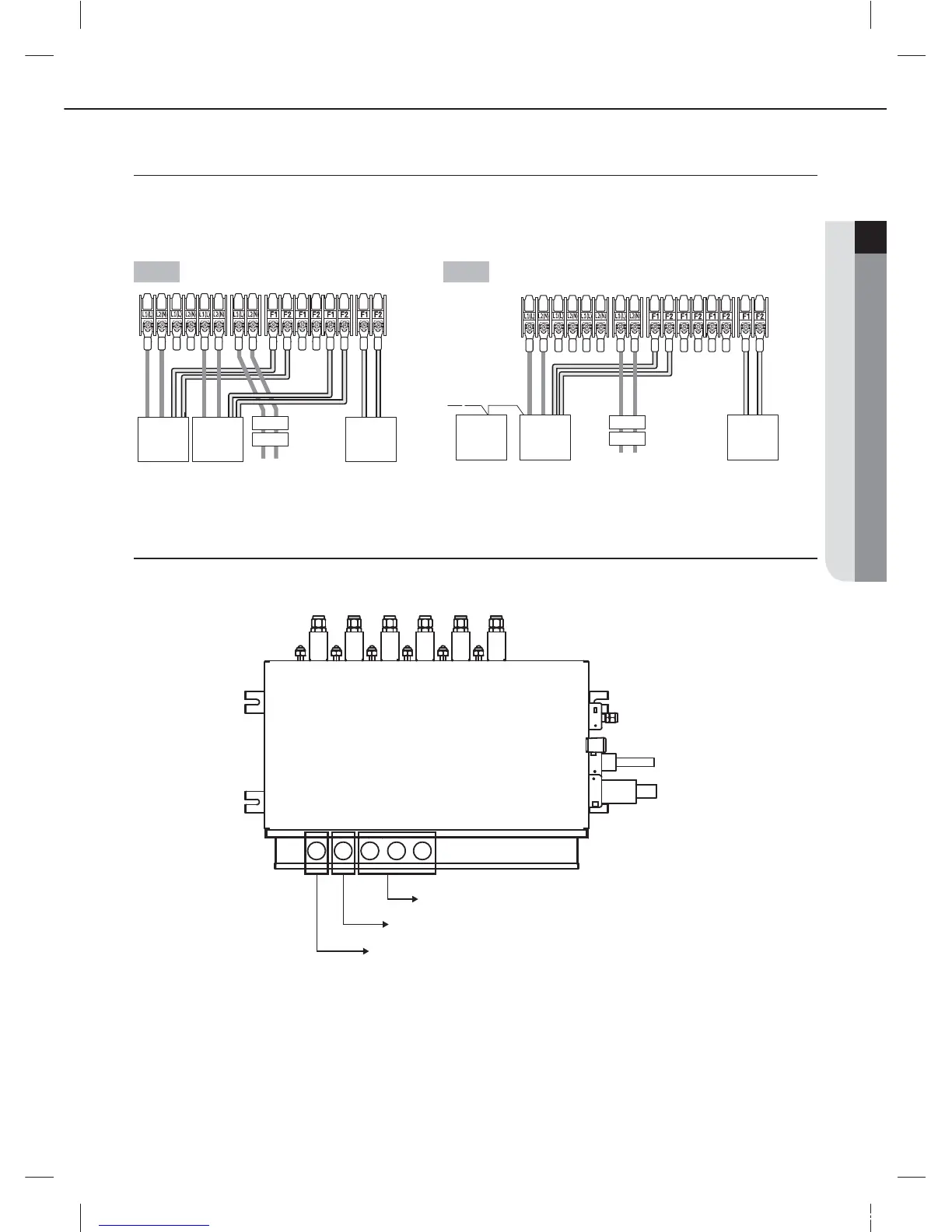

Installing the wire
X
Supply the 220-240V/208-230V power to L1, L2 of MCU separately with outdoor unit.
X
Connect the communication cable from the outdoor unit to F1, F2 of MCU.
X
Power Line and communication line must be connected as shown in drawing.
Input socket
X
Power Line and communication line must be installed as shown in drawing
Case 1
Indoor
Unit
Indoor
Unit
Outdoor
Unit
ELB
MCCB
220-240V/208-230V
(Supply separately)
Case 2
Indoor
Unit
Indoor
Unit
Outdoor
Unit
ELB
MCCB
220-240V/208-230V
(Supply separately)
Hole for indoor unit power supply (Upto 2 indoor units per 1 hole)
Hole for MCU main power supply
Hole for communication
tj|Tz]ullXuptluGWZ[`WhTW]UGGGX\ YWX\TW`TX^GGG㝘㤸GXWa\Za[_
