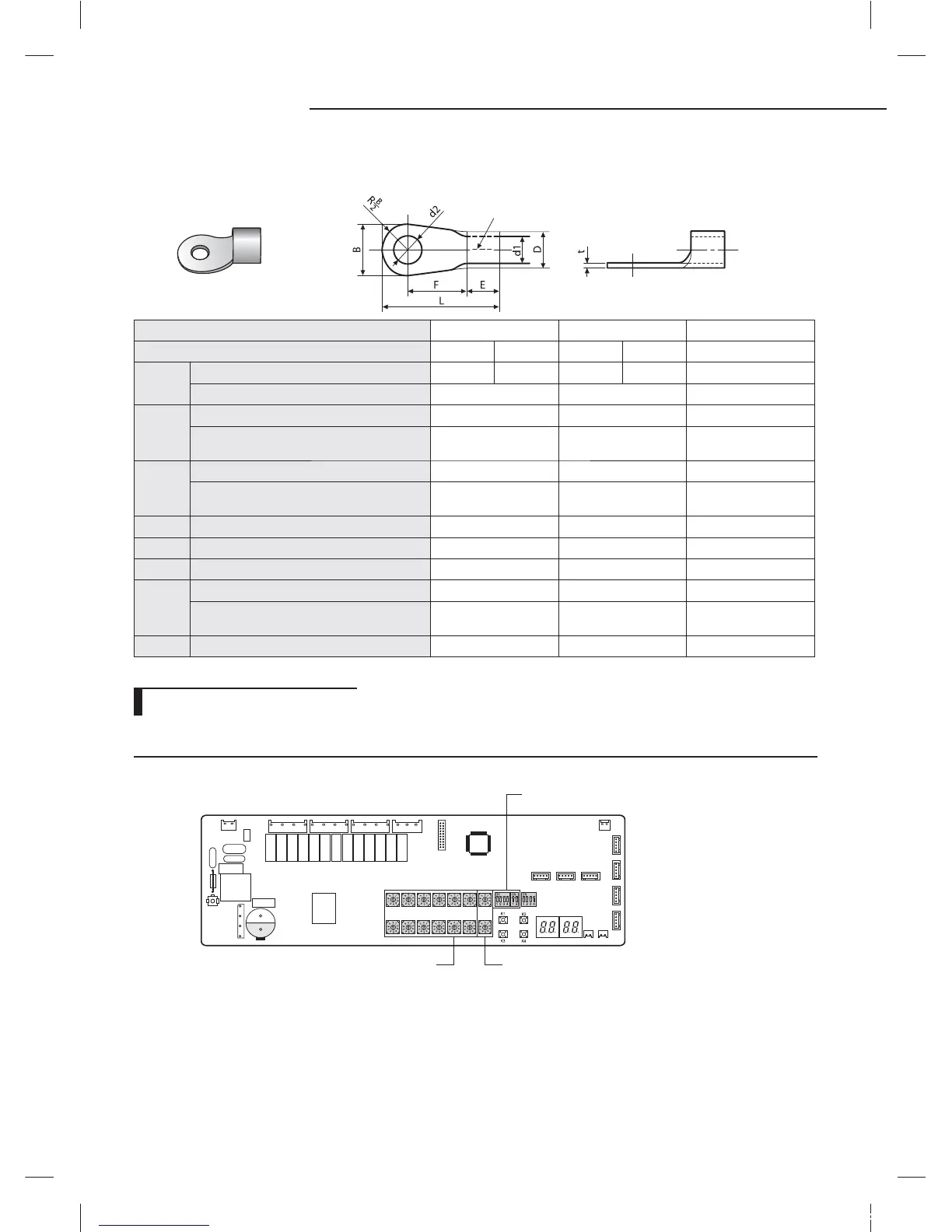

16
Wiring works
X
Choose the compressed socket based on the cross-section of the connecting wire.
Silver solder
Nominal dimensions for cable [mm
2
(inch2)] 1.5 (0.002) 2.5 (0.003) 4 (0.006)
Nominal dimensions for screw [mm (inch)] 4 (0.157) 4 (0.157) 4 (0.157) 4 (0.157) 4 (0.157)
B
Standard dimension [mm (inch)] 6.6 (0.259) 8 (0.314) 6.6 (0.259) 8.5 (0.334) 9.5 (0.374)
Allowance [mm (inch)] ±0.2 (0.007) ±0.2 (0.007) ±0.2 (0.007)
D
Standard dimension [mm (inch)] 3.4 (0.134) 4.2 (0.165) 5.6 (0.220)
Allowance [mm (inch)]
+0.3 (0.011)
-0.2 (-0.007)
+0.3 (0.011)
-0.2 (-0.007)
+0.3 (0.011)
-0.2 (-0.007)
d1
Standard dimension [mm (inch)] 1.7 (0.066) 2.3 (0.090) 3.4 (0.133)
Allowance [mm (inch)]
+0.2 (±0.007)
0
+0.2 (±0.007)
0
+0.2 (±0.007)
0
E Min. [mm (inch)] 4.1 (0.161) 6 (0.236) 6 (0.236)
F Min. [mm (inch)] 6 (0.236) 6 (0.236) 5 (0.196)
L Max. [mm (inch)] 16 (0.629) 17.5 (0.688) 20 (0.787)
d2
Standard dimension [mm (inch)] 4.3 (0.169) 4.3 (0.169) 4.3 (0.169)
Allowance [mm (inch)]
+0.2 (±0.007)
0
+0.2 (±0.007)
0
+0.2 (±0.007)
0
t Min. [mm (inch)] 0.7 (0.027) 0.8 (0.031) 0.9 (0.035)
Setting address and option
PCB Layout
X
Turn o the DIP switch on the MCU PCB when pipe is not connected.
DIP switch for indoor unit setting (ON:Use, OFF:Not use)
Rotary switch for MCU ADDRESS
Rotary switch for indoor unit ADDRESS
tj|Tz]ullXuptluGWZ[`WhTW]UGGGX] YWX\TW`TX^GGG㝘㤸GXWa\Za[_
