Disassembly and Reassembly
Samsung Electronics4-18
No Parts Procedure Remark

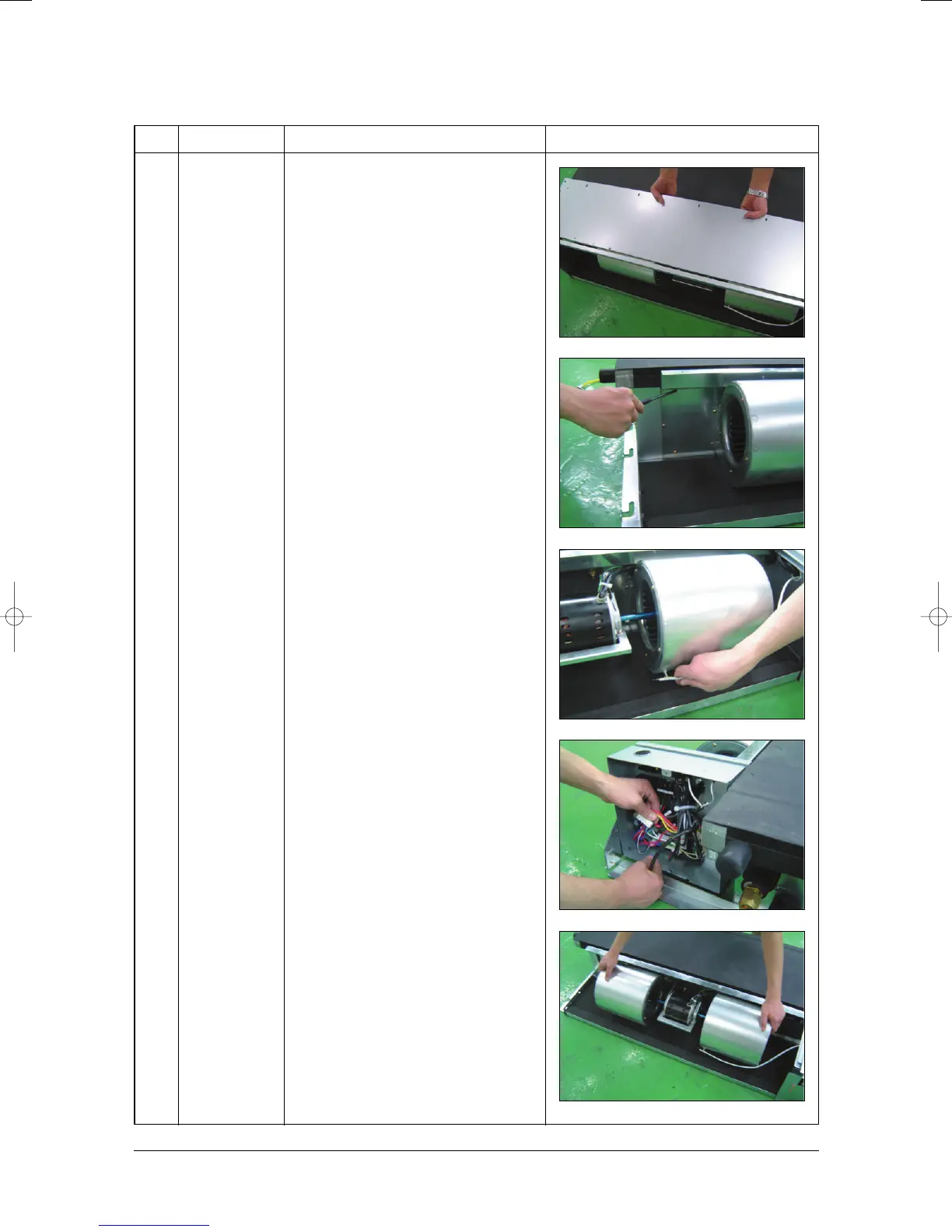

2) Disassemble indicating screws.
3) Detach the sensor holder from the
Ass'y Fan case.
4) Detach from Ass'y Control in the
capacitor connection wire between the
Motor-Fan in and Housing Connector.
5) Detach the Ass'y Blower and Duct from
the set.
24296A(1)_1 11/11/05 5:03 PM Page 4-18
To Next Page
