Samsung Electronics10-1
10. PCB Diagram

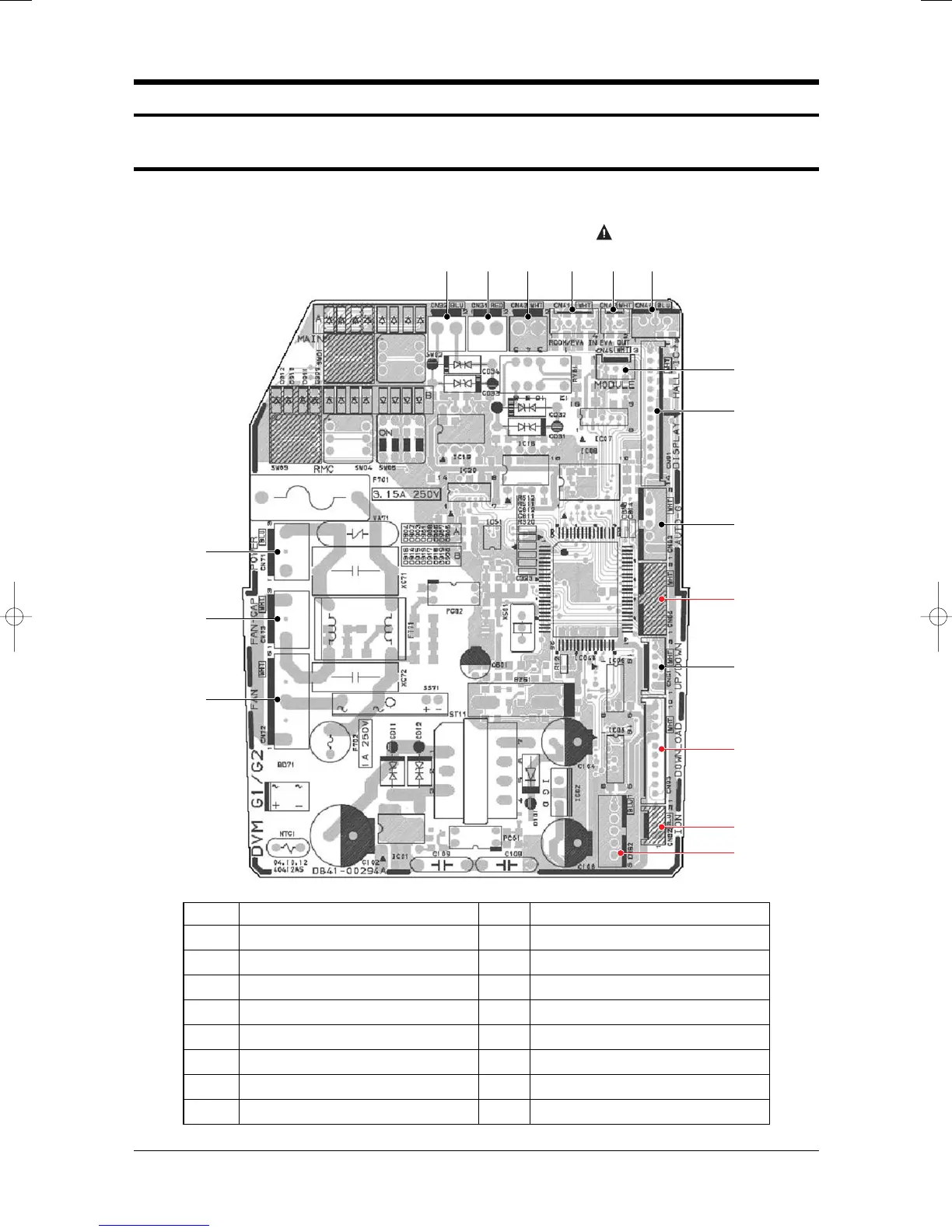

10-1 MAIN PCB(Indoor Unit)
■ MH✳✳✳FPEA✳ /MH✳✳VP2-✳✳
!
COM2
@
COM1
#
12V
$
ROOM/EVE IN
%
EVE OUT
^
Motor Rpm Feed-Back
&
Module PCB Connection
*
Display PCB Connection
(
Auto Grill
)
Auto Grill 2
1
Blade-H Step Motor
2
Down Load Connector
3
ION
4
EEV
5
Indoor Fan Motor
6
Fan Motor Capacitor
7
Power
&
*
(
)
1
2
3
4
7
6
5
! @ # $ % ^
The red number connecter is not used.
