Disassembly and Reassembly
Samsung Electronics4-20
No Parts Procedure Remark
4
5

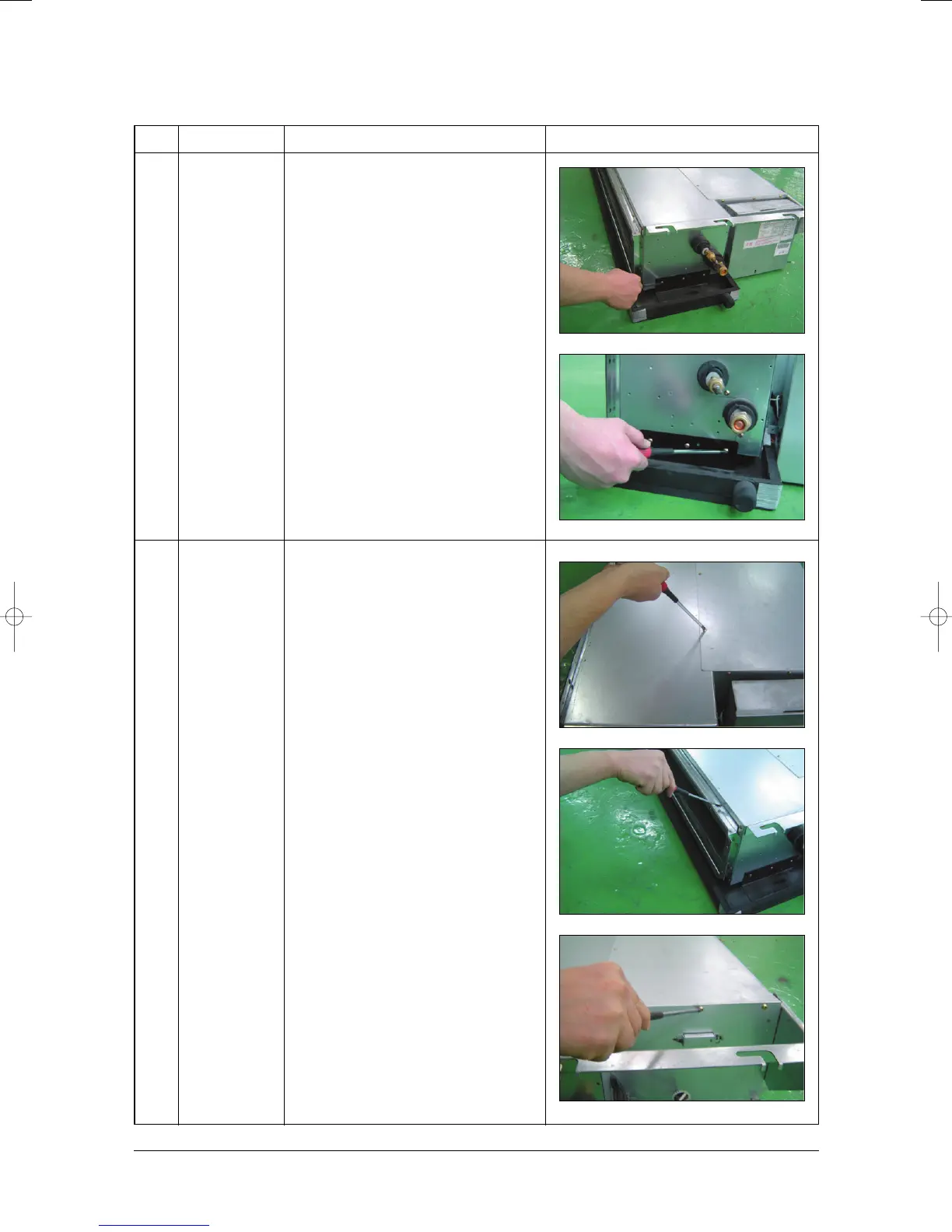

Drain Pan
Evap
1) Disassemble indicating screws to detach
Ass'y Drain Pan. (screws each at left and
right side)
✳ Work is possible when disassembling
the Ass'y Drain Pan.
1) Disassemble indicating screws.
(each at left and right side)
2) Disassemble indicating screws.
3) Disassemble indicating screws.
✳ It is possible at the status of No.3 Ass'y
Control In disassembly at the time.
24296A(1)_1 11/11/05 5:03 PM Page 4-20
To Next Page
