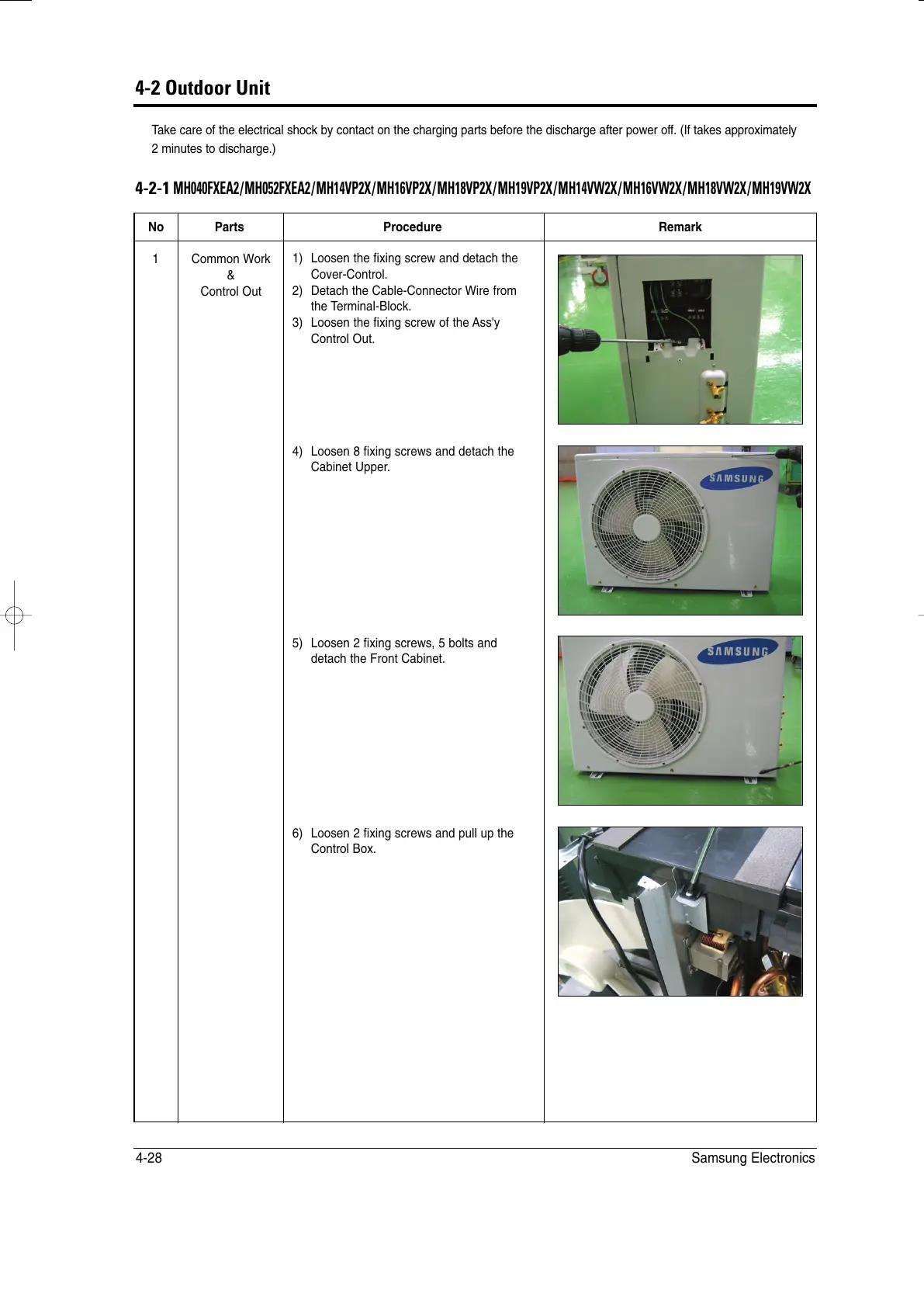

4-2 Outdoor Unit
No Parts Procedure Remark
1 Common Work
&
Control Out
1) Loosen the fixing screw and detach the
Cover-Control.
2) Detach the Cable-Connector Wire from
the Terminal-Block.
3) Loosen the fixing screw of the Ass'y
Control Out.
4) Loosen 8 fixing screws and detach the
Cabinet Upper.
5) Loosen 2 fixing screws, 5 bolts and
detach the Front Cabinet.
6) Loosen 2 fixing screws and pull up the
Control Box.
Take care of the electrical shock by contact on the charging parts before the discharge after power off. (If takes approximately
2 minutes to discharge.)
4-2-1
MH040FXEA2/MH052FXEA2/MH14VP2X/MH16VP2X/MH18VP2X/MH19VP2X/MH14VW2X/MH16VW2X/MH18VW2X/MH19VW2X
