E-19
ENGLISH

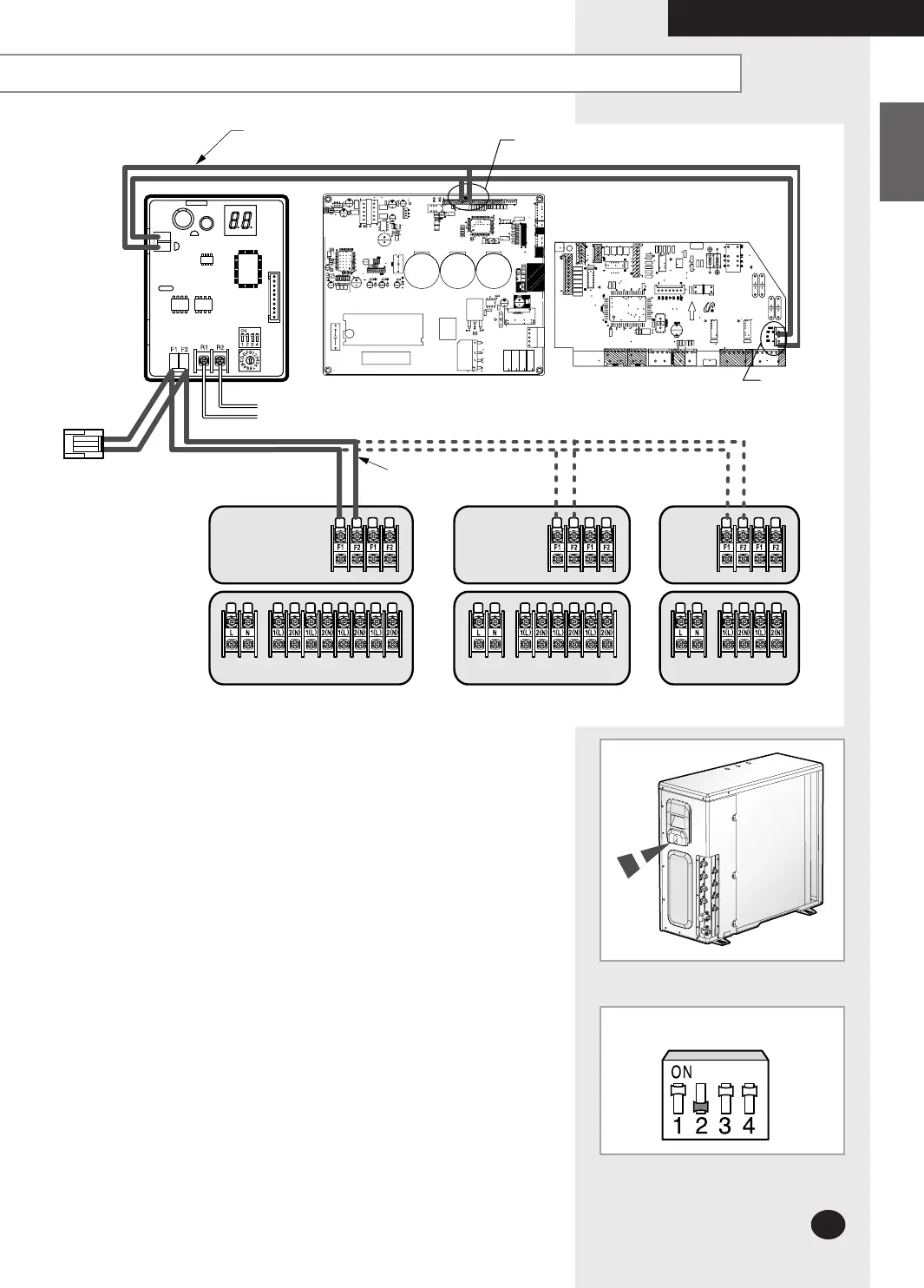

Transmitter Installation (Optional) (Continued)
CN03
Transmitter power cable
(Accessory in the outdoor unit)
CN01
(Whit)
Transmitter
PCB
Controller
Center
Outdoor unit PCB
One housing is used for connection
although there are 2 housings on the
communication cable.
Transmitter communication
cable (Accessory in the
transmitter)
Terminal Block in the outdoor unit Terminal Block in the outdoor unit Terminal Block in the outdoor unit
MH070FXEA4A/MH080FXEA4A MH060FXEA3A MH040FXEA2A/MH052FXEA2A
MH18VV1X/MH19VV1X
The designs and shape are subject to
change according to the model.
K1 K2 K3 K4
Change DIPswitch-K2 in all
indoor units PCB (K2 : ON

OFF)
INSTALLING THE OUTDOOR UNIT
(Blue)
CN01
(Whit)
MH052FXEA2A/MH060FXEA3A
MH070FXEA4A/MH080FXE
MH040FXEA2
