E-7
ENGLISH

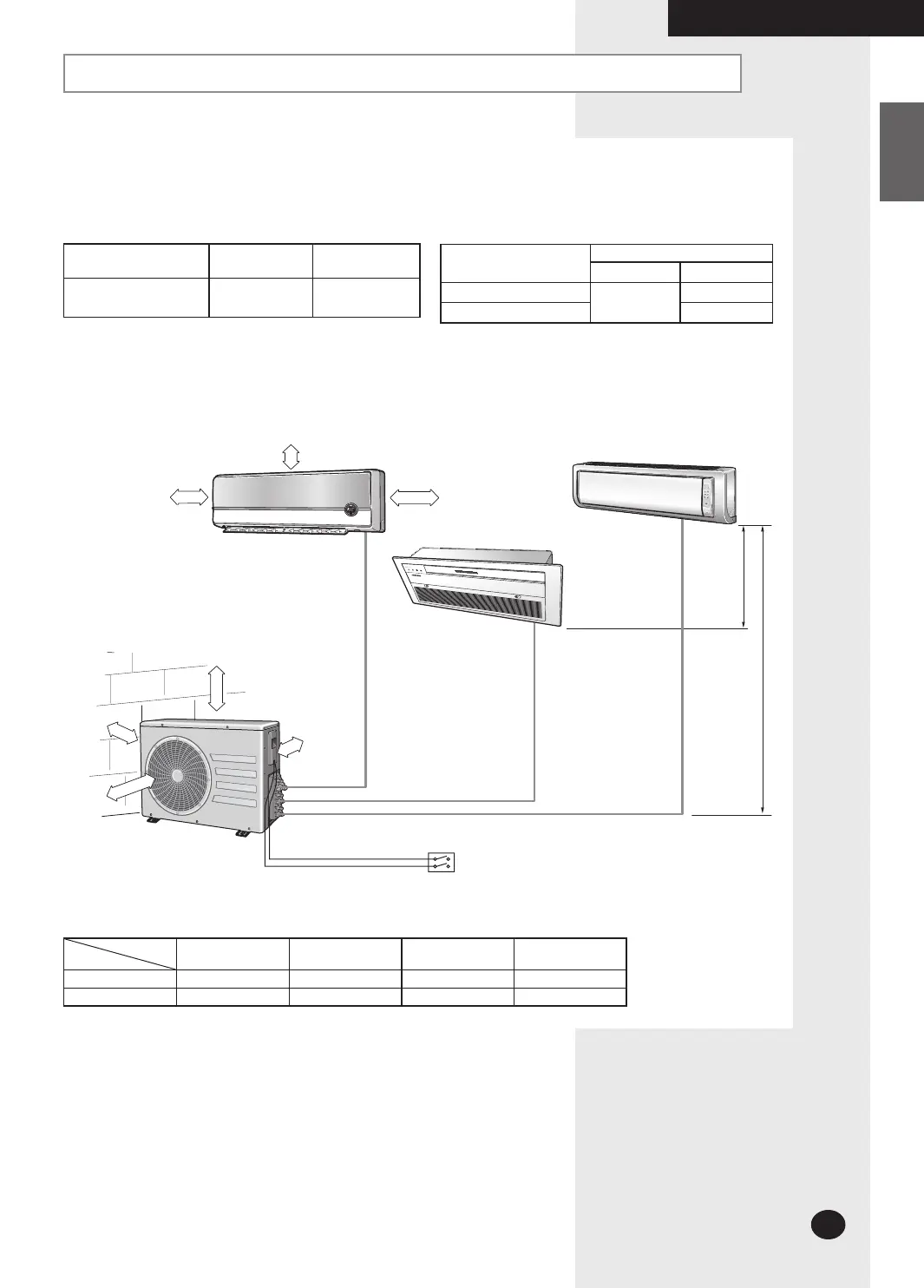

PREPARING THE INSTALLATION
MH060FXEA3A
The split type, 1-way cassette, mini 4-way cassette and slim duct type indoor units can be installed together.
Indoor unit Outdoor unit
Power supply
Ø, V, Hz

020/023/026/030/035/052

MH060FXEA3A 1,220-240, 50
Unit
Outside diameter
Liquid Gas

020/023/026/030/035

1/4"
3/8"

052

1/2"
MH060FXEA3A outdoor unit cannot be connected to the following indoor unit combination.
- MH052 FEEA
Piping outside diameter
(h) (H)
A B
1 Room max
length
3 Room total max
length
Max height between
indoor unit & outdoor unit
Max height between
indoor units
Dimension 20m 45 m 15m 7.5 m
Composition A,B A+B+c (H) (h)
Piping length and the height
Main power switch
C
200 mm
or more
160 mm
or more
100 mm
or more
600 mm
minimum
300 mm
minimum
600 mm
minimum
300 mm
minimum
