E-8

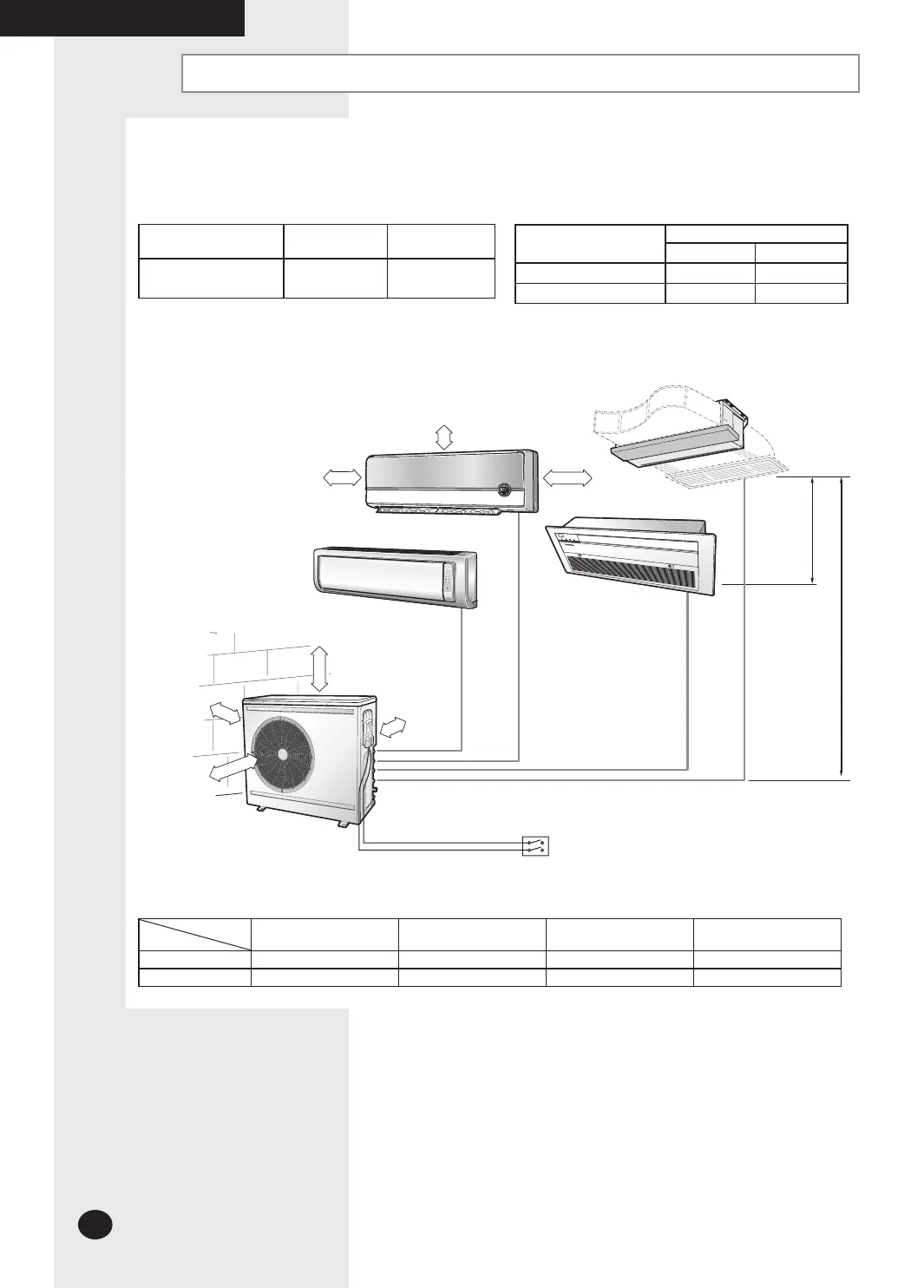

PREPARING THE INSTALLATION
Deciding on Where to Install the Air Conditioner (Continued)
MH070FXEA4A / MH080FXEA4A
The split type, 1-way cassette, mini 4-way cassette and slim duct type indoor units can be installed together.
Indoor unit Outdoor unit
Power supply
Ø, V, Hz

020/023/026/030/035/052

MH070FXEA4A
MH080FXEA4A
1,220-240, 50
Unit
Outside diameter
Liquid Gas

020/023/026/030/035

1/4" 3/8"

052

1/4" 1/2"
Piping outside diameter
(h) (H)
A B
1 Room max
length
4 Room total max
length
Max height between
indoor unit & outdoor unit
Max height between
indoor units
Dimension 25m 70 m 15m 7.5 m
Composition A,B,C,D A+B+C+D (H) (h)
Piping length and the height
C D
200 mm
or more
160 mm
or more
100 mm
or more
Main power switch
600 mm
minimum
300 mm
minimum
300 mm
minimum
600 mm
minimum
