Disassembly and Assembly
48
Touchpad Assembly
Leaving screws inside the computer may damage internal components, such as
the battery. When assembling, be extra careful not to leave any unassembled
screws inside the computer.

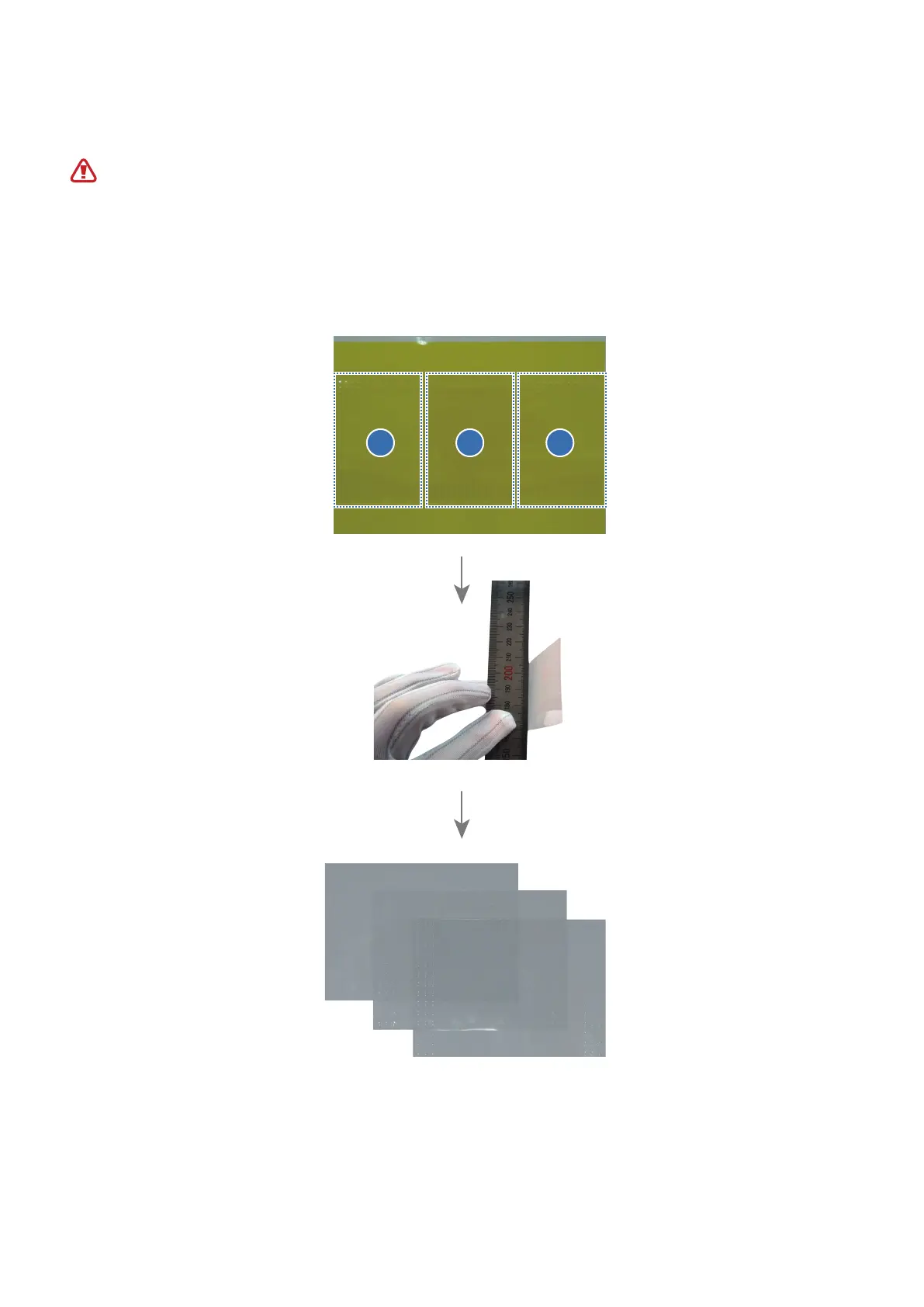

1 Film jig is required to assemble the touchpad. Prepare the touchpad film jig including
three films. Using a ruler, bend the film jig 90˚ to the dotted line. (3 ea)
1 2 3
To Next Page
