Clearance for installation
Clearance for installation by windows

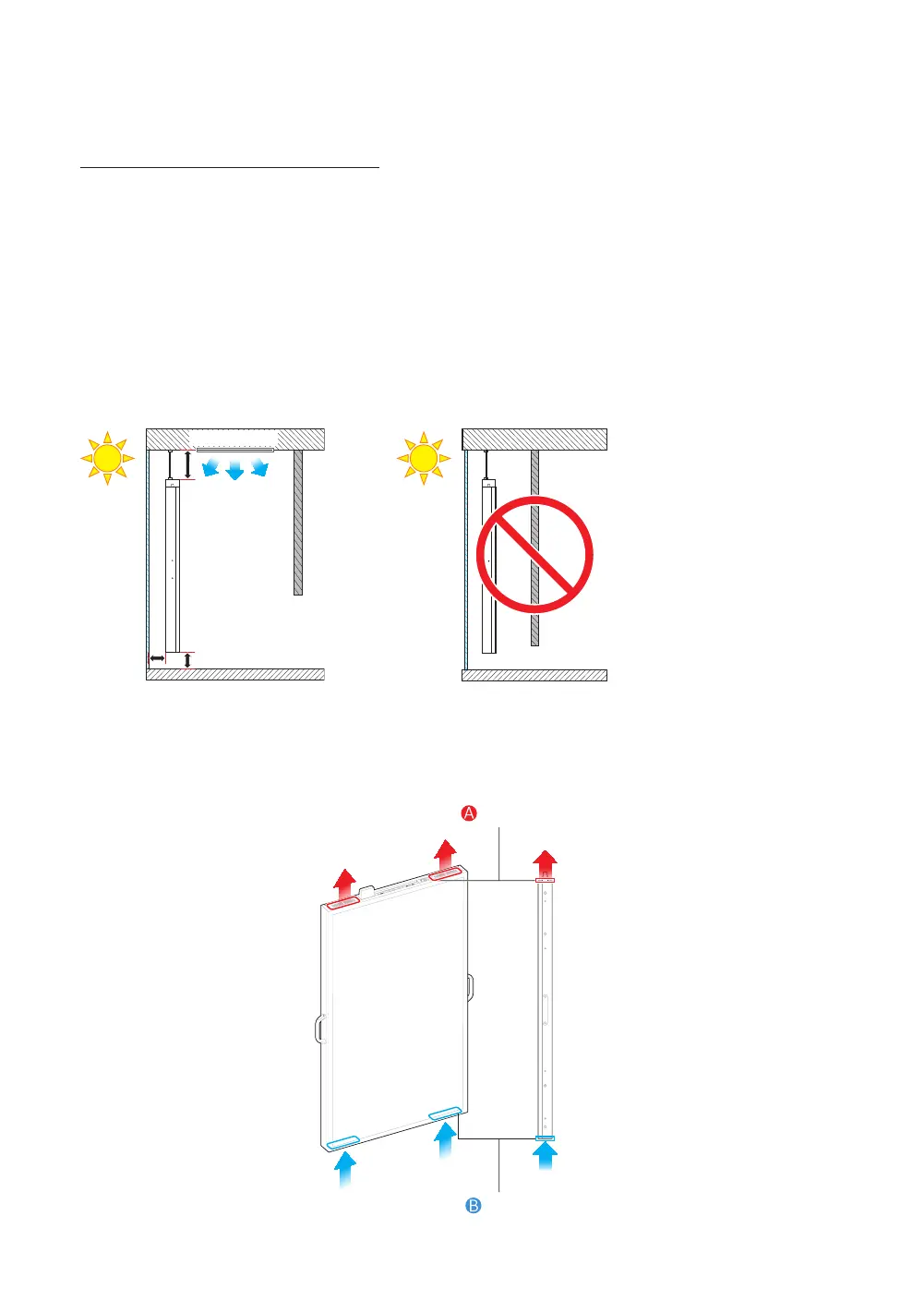

When installing a semi-outdoor unit near windows, maintain the clearance in order to secure air flow.
• Clearance from windows (A): 100 mm or more
• Clearance from the ceiling (B): 300 mm or more
• Clearance from the floor (C): 100 mm or more
• Keep the ambient temperature at 0 - 30 °C, clear of obstacles that may affect air flow.
– If the unit is subjected to excess heat due to an insufficient gap, this may cause a malfunction, which will not be
covered by the warranty.
– The product may overheat when used with an enclosure unit. Make sure to contact Samsung for guidance in
using enclosure units.
A
C
B
Air-conditioner
Air flow direction
The semi-outdoor unit uses cooling fans to take in outside air to lower the internal temperature and discharge the hot air.
– When installing a semi-outdoor unit, remove any obstacles near the air inlet and outlet that may affect air flow.
Back Side view
Air inlet
Air outlet
English - 10
