Samsung QB65R User Manual

8
QM43R-A/QM50R-A/QM55R-A/
QM65R-A/QM75R-A/QM43R-B/
QM50R-B/QM55R-B/QM65R-B/QM75R-B
"
The colour and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.

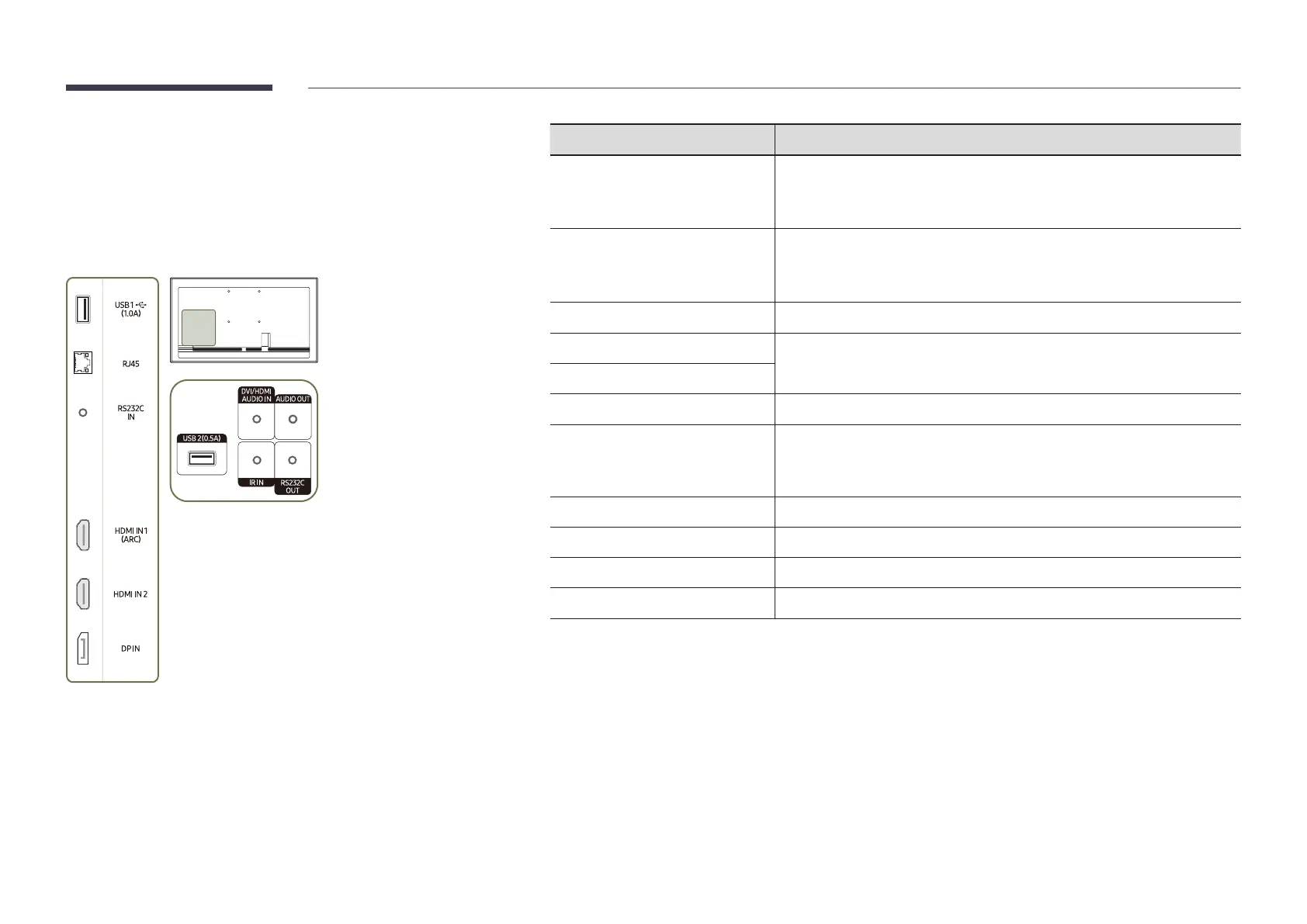

Port Description
USB 1
¨
(1.0A)
Connect to a USB memory device.
"
The USB ports on the product accept a maximum constant current of 1.0A.
If the maximum value is exceeded, USB ports may not work.
RJ45
Connects to MDC and the Internet using a LAN cable. (10/100 Mbps)
"
Use Cat7(*STP Type) cable for the connection.
*Shielded Twist Pair.
RS232C IN
Connects to MDC using an RS232C adapter.
HDMI IN 1 (ARC)
Connects to a source device using a HDMI cable or HDMI-DVI cable.
HDMI IN 2
DP IN
Connects to a PC using a DP cable.
USB 2(0.5A)
Connect to a USB memory device.
"
The USB ports on the product accept a maximum constant current of
0.5A. If the maximum value is exceeded, USB ports may not work.
DVI/HDMI AUDIO IN
Receives sound from a source device via an audio cable.
AUDIO OUT
Outputs sound to an audio device via an audio cable.
IR IN
Connects to an external IR cable that receives signals from the remote control.
RS232C OUT
Connects to MDC using an RS232C adapter.

Samsung QB65R Specifications

General

Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	9.2 mm
Placement supported	Indoor
Bezel width (bottom)	11.2 mm
Panel mounting interface	400 x 400 mm
Package depth	185 mm
Package width	1611 mm
Package height	973 mm
Package weight	33300 g
AC input voltage	100 - 240 V
Heat dissipation	618.9 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (sleep)	0.5 W
Power consumption (standby)	- W
Power consumption (typical)	128 W
Color gamut	92 %
Pixel pitch	0.372 x 0.372 mm
Response time	8 ms
Display diagonal	64.5 \
Display brightness	350 cd/m²
Display technology	LED
Vertical scan range	48 - 75 Hz
Horizontal scan range	30 - 81 kHz
LED backlighting type	Edge-LED BLU
Contrast ratio (typical)	4000:1
Display number of colors	16.78 million colors
Active display area (W x H)	1428.48 x 803.52 mm
Dynamic contrast ratio marketing name	Mega Contrast
User memory	4.12 GB
Memory clock speed	1500 MHz
VGA (D-Sub) input ports	0
Ethernet LAN (RJ-45) ports	1
Cables included	AC
Purpose	Universal
Operating hours (hours/days)	16/7
Internal memory	2.5 GB
Processor cores	4
Processor model	A72
Processor family	ARM Cortex
Processor frequency	1.7 GHz
Audio formats supported	AC3
Image formats supported	JPEG, PNG
Video formats supported	AVC, AVS, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
Internal storage capacity	8 GB
Operating system installed	Tizen 4.0
Certification	60950-1, EMC B
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
RMS rated power	20 W
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	46.3 mm
Width	1453.9 mm
Height	831 mm
Weight	24900 g
