Samsung RB215LABP - Connector Arrangement&Descriptions

80

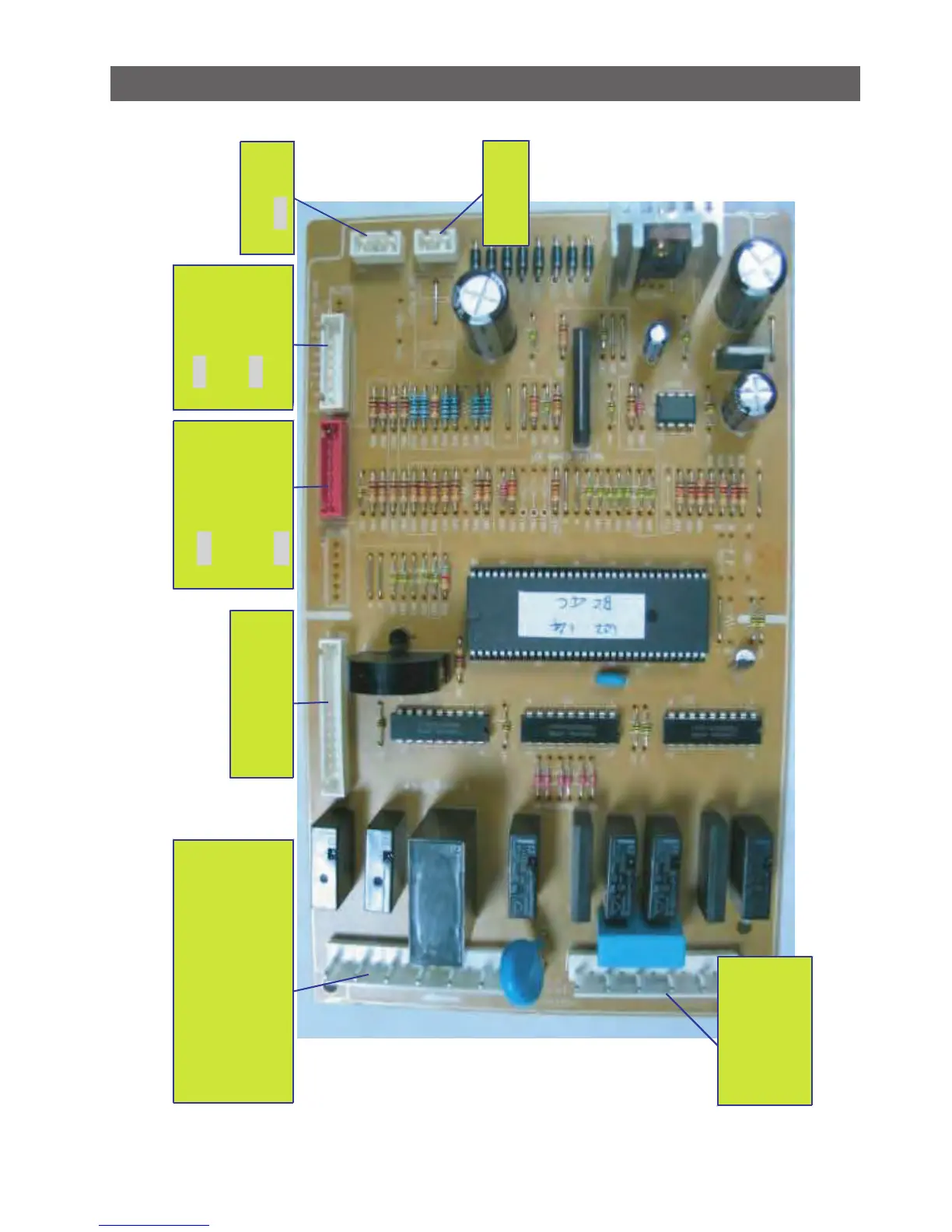

16. CONNECTOR ARRANGEMENT&DESCRIPTIONS
① F LAMP ③ COMMON LINE(N) ⑤ COMP ⑦ HEATER COMMON LINE(N) ⑨
R HEATER (R DRAIN. ICE WATER PIPE)
⑪ HEATER COMMON LINE(L) ⑬ F HEATER (F DRAIN)
①ICE WATER VALVE ③R FAN ⑤COMMON LINE(L) ⑦R LAMP ⑨C FAN ⑪F FAN
① PANEL PCB WIRE ③ PANEL GRID SIGNAL ⑤ KEY
①TRANS IN AC ③TRANS IN AC
①,②
ICE MAKER MOTOR
③ GND ④ ICE EJECT SENSOR ⑤ TEST S/W ⑥ HORIZONTAL S//W ⑦ ICE FULL S//W ⑧ GND
① F-DOOR S/W ② GND ③ F-ROOM SENSOR ④
F-DEFROST SENSOR
⑤ R-DOOR S/W ⑥ GND ⑦ R-ROOM SENSOR ⑧
R-DEFROST SENSOR
① AMBIENT
SENSOR
④ GND
