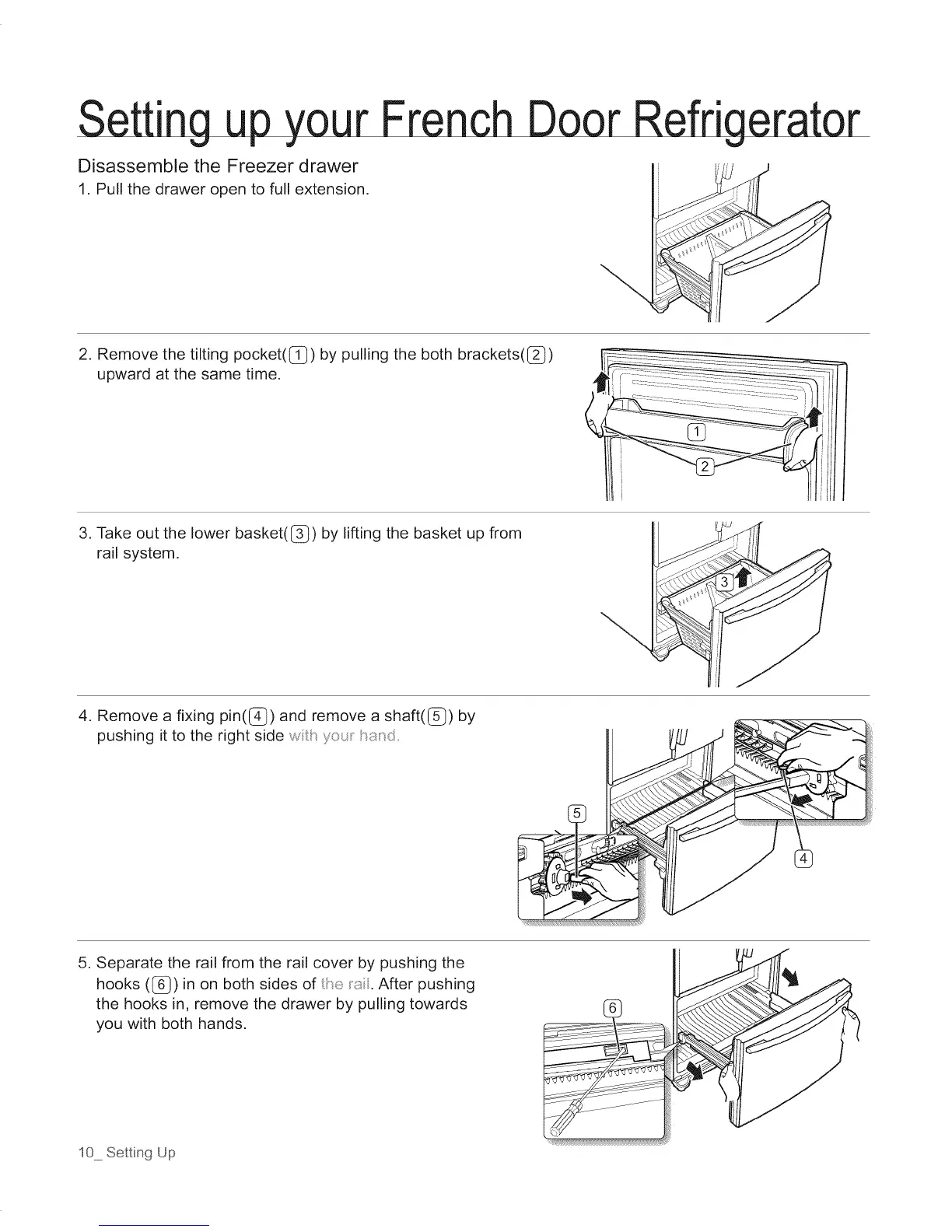

Settingupyour
Disassemble the Freezer drawer
1. Pull the drawer open to full extension.
French Door Refriaerator
2. Remove the tilting pocket(G ) by pulling the both brackets(!_)
upward at the same time.
3. Take out the lower basket({_) by lifting the basket up from
rail system.
4. Remove a fixing pin(G ) and remove a shaft(G ) by
pushing it to the right side wt _,_ ,"
5. Separate the rail from the rail cover by pushing the
hooks (_]}) in on both sides of ti_ _':_.After pushing
the hooks in, remove the drawer by pulling towards
you with both hands.
10 Setting Up
