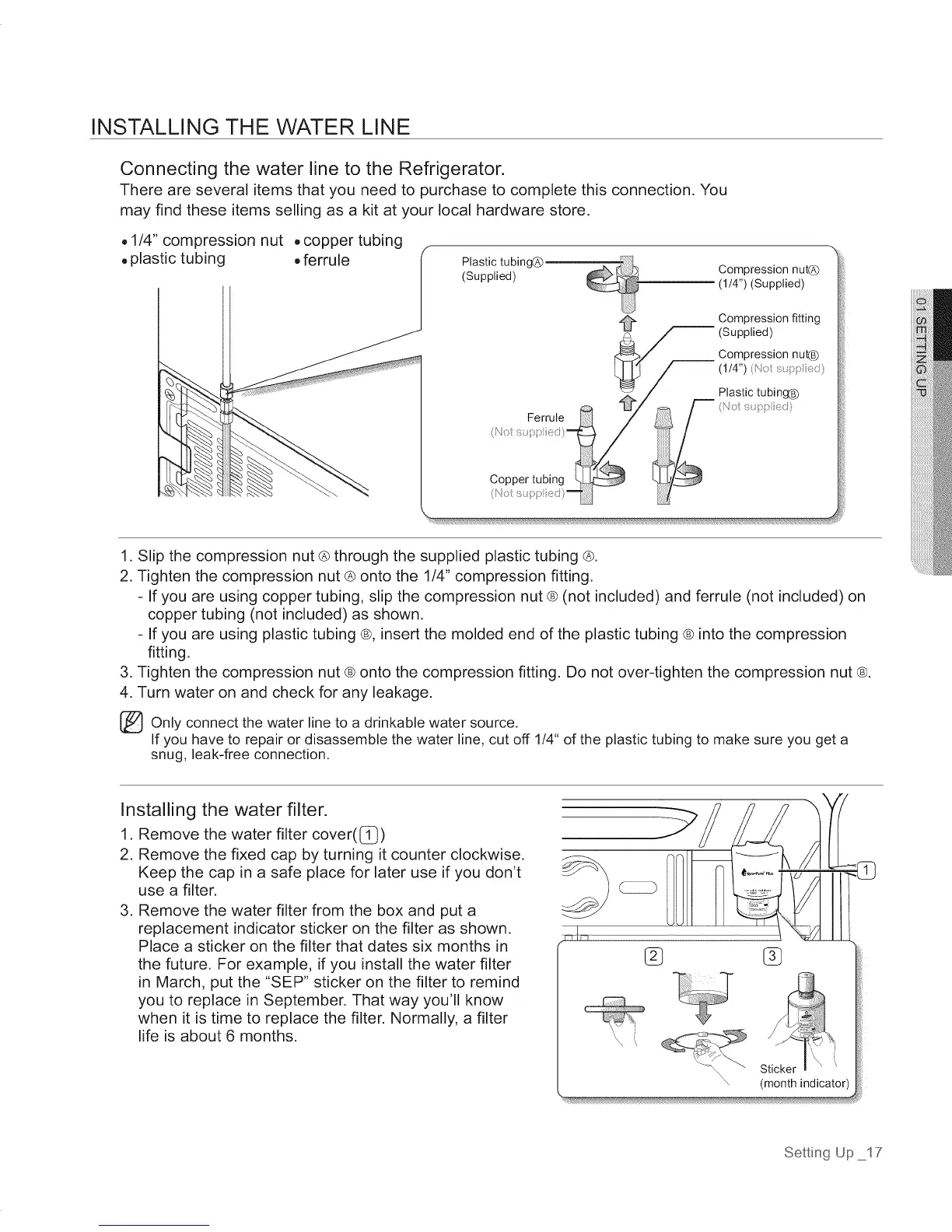

INSTALLING THE WATER LINE
Connecting the water line to the Refrigerator.
There are several items that you need to purchase to complete this connection. You
may find these items selling as a kit at your local hardware store.
• 1/4" compression nut • copper tubing
plastic tubing • ferrule
Plastic tubing® Compression nut(_
(Supplied) (1/4") (Supplied)
Compression fitting
_ (Supplied)
Compression nut®
(1/4")
Plastic tubing@
Ferrule_
(/':
1. Slip the compression nut ® through the supplied plastic tubing ®.
2. Tighten the compression nut ® onto the 1/4" compression fitting.
- If you are using copper tubing, slip the compression nut ® (not included) and ferrule (not included) on
copper tubing (not included) as shown.
- If you are using plastic tubing ®, insert the molded end of the plastic tubing ® into the compression
fitting.
3. Tighten the compression nut ® onto the compression fitting. Do not over-tighten the compression nut ®.
4. Turn water on and check for any leakage.
_Only connect the water line to a drinkable water source.
If you have to repair or disassemble the water line, cut off 1/4" of the plastic tubing to make sure you get a
snug, leak-free connection.
Installing the water filter,
1. Remove the water filter cover(l_)
2. Remove the fixed cap by turning it counter clockwise.
Keep the cap in a safe place for later use if you don't
use a filter.
3. Remove the water filter from the box and put a
replacement indicator sticker on the filter as shown.
Place a sticker on the filter that dates six months in
the future. For example, if you install the water filter
in March, put the "SEP" sticker on the filter to remind
you to replace in September. That way you'll know
when it is time to replace the filter. Normally, a filter
life is about 6 months.
'\
Sticker
(month indicator)
Setting Up _17
