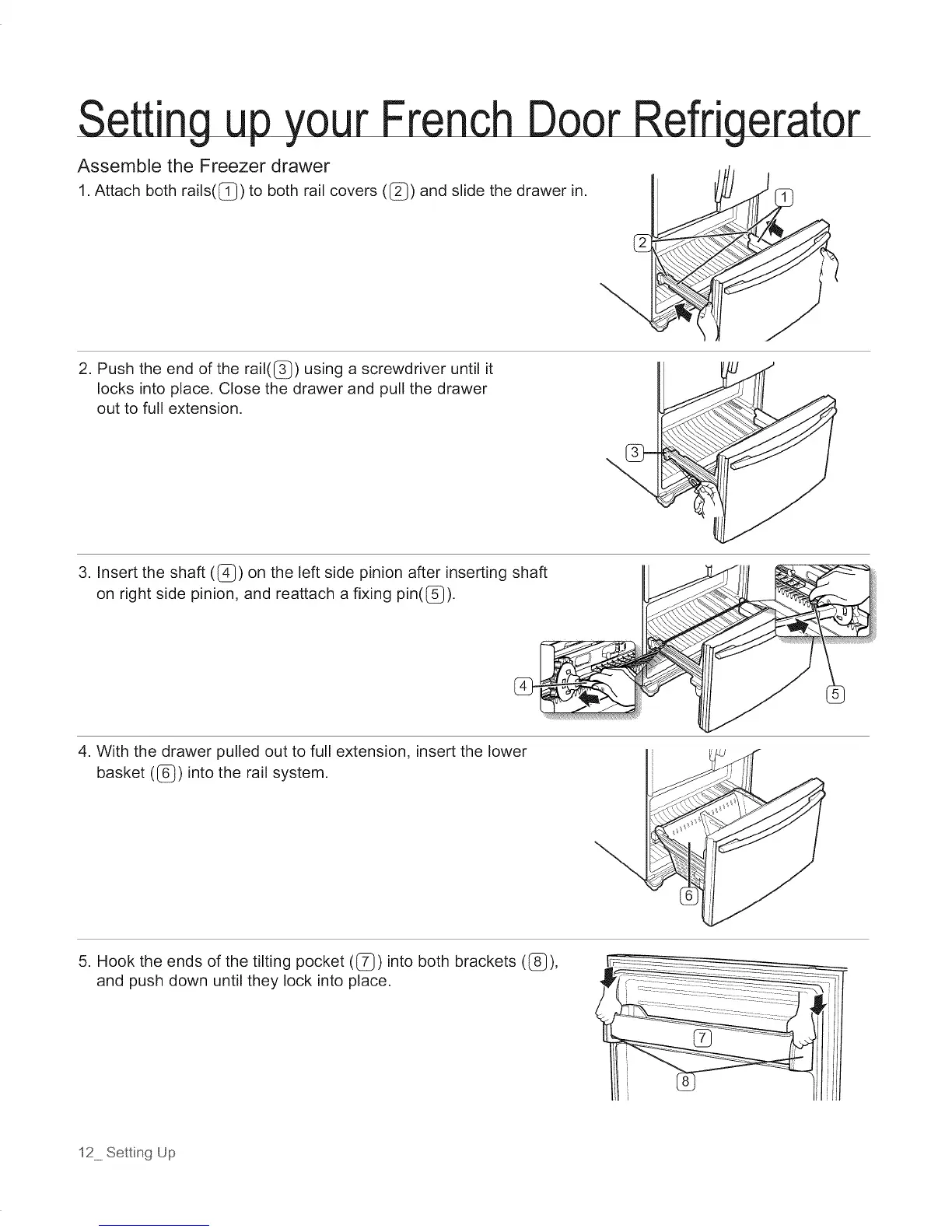

Settinaupyour FrenchDoorRefriaerator
Assemble the Freezer drawer
1. Attach both rails((_) to both rail covers ((_) and slide the drawer in.
\
2. Push the end of the rail((_) using a screwdriver until it
locks into place. Close the drawer and pull the drawer
out to full extension.
3. Insert the shaft (_}) on the left side pinion after inserting shaft
on right side pinion, and reattach a fixing pin((_).
4. With the drawer pulled out to full extension, insert the lower
basket (l_}) into the rail system.
5. Hook the ends of the tilting pocket (_}) into both brackets (_}),
and push down until they lock into place.
12_ Setting Up
