5. DISASSEMBLY AND REASSEMBLY
Part name
Freezer Light
Descriptive PictureHow To Do

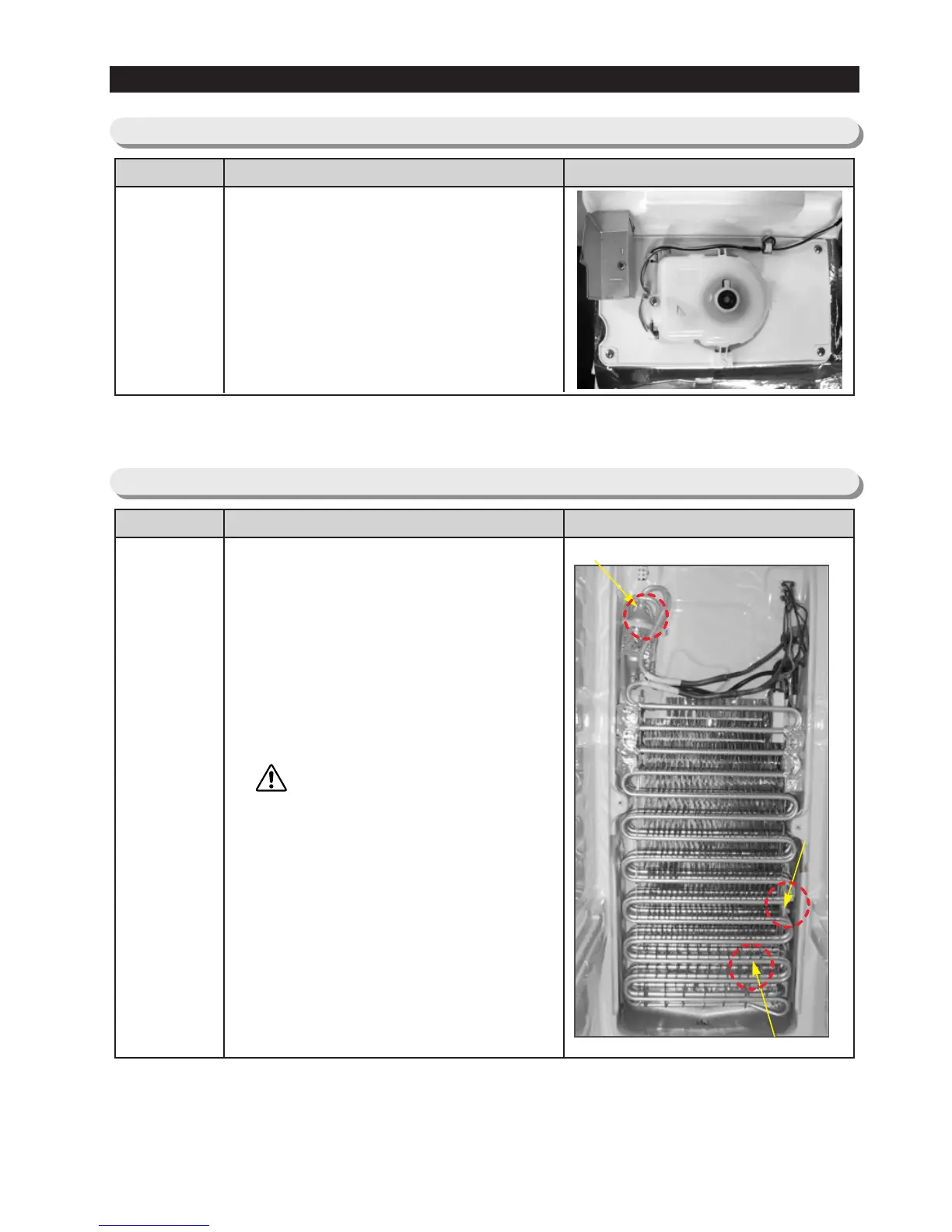

The evaporator fan is located in the lower rear
of refrigerator. This fan circulates cold air in
the refrigerator.
1. screw(4) located at the four corners of the fan
bracket.
2. Take the fan motor assembly off.
5-25) EVAPORATOR FAN MOTOR
Part name
Evaporator In
Freezer
Descriptive PictureHow To Do
Evaporator is located in the bottom of freezer
to produce cold air driven across the
evaporator coils.
1. Take off the ductwork in Freezer.
2. Disconnect the wire connector (Heater,
Bimental, and Thermistor).
3. Desolder the inlet and outlet tubes.
4. Remove the evaporator.
5. Take the same steps to seal the system as
mentioned earlier.
5-26) EVAPORATOR FAN MOTOR
Accumulator
Thermistor
Bimetal
When diassembling, make
sure the unit turned off
Caution
