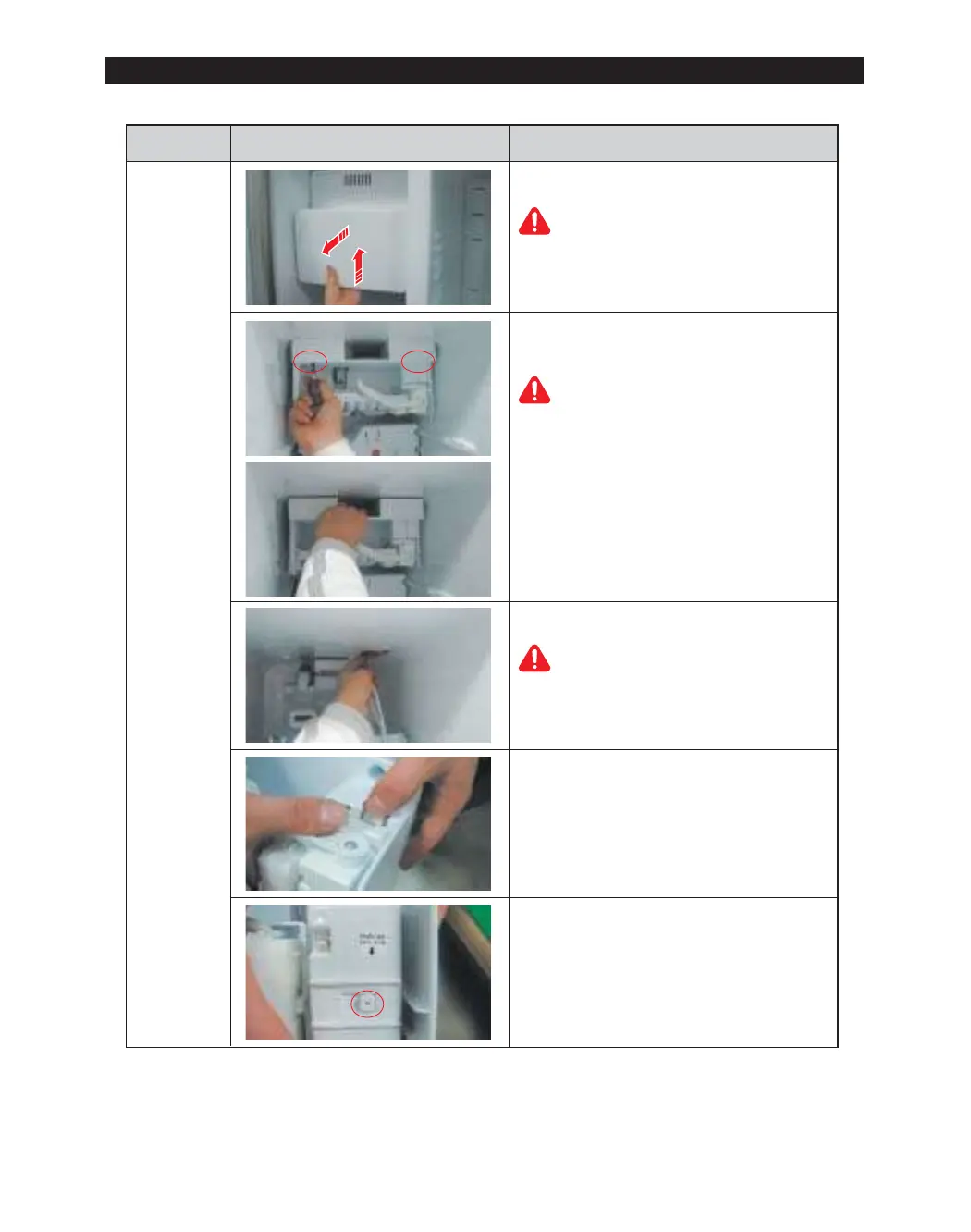

PART NAME FIGURE

Ice Maker

DESCRIPTION

Disconnect the connector and take out.

* This is the Test Button for checking the Ice

Maker Kit condition.

Push down the Hook on Support Ice Maker

and disassemble Ice Maker Kit.

DISASSEMBLY & REASSEMBLY

Be careful not to scratch.

Remove 2 screws and pull the Ice Maker

Assembly out with grabbing.

Lift Ice Bucket Assembly up and pull out.

Be careful not to be damaged on the wire and

the connector, Be careful of injury.
