DISASSEMBLY & REASSEMBLY
Disconnect connectors as indicated.

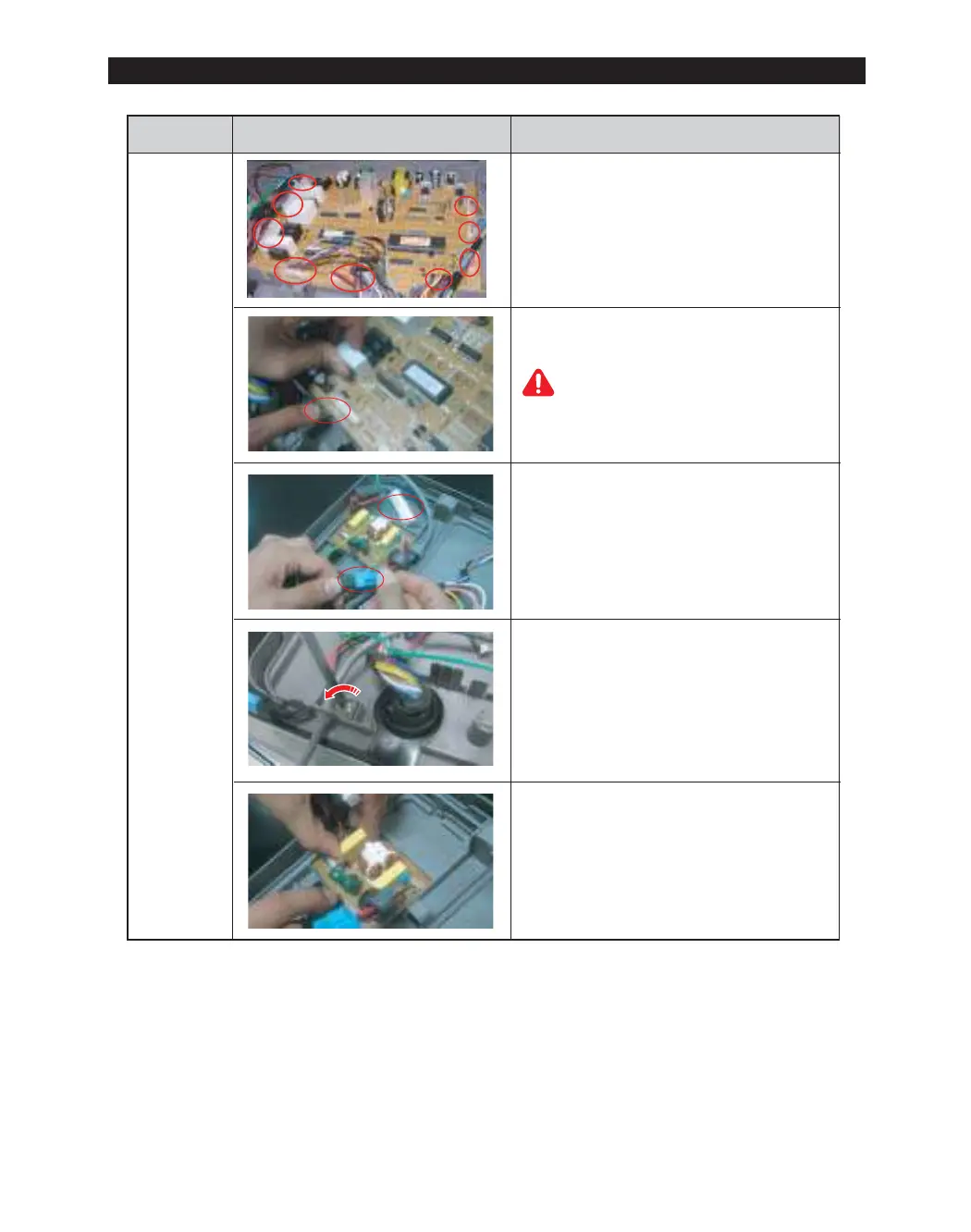

PART NAME FIGURE
PBA MAIN
DESCRIPTION
Pull the hooks out and disassemble the
Main PBA.
Disconnect 2 connectors as indicated.
Unscrew 1 screw to disassemble the Power
Supply.
Pull the 2 hooks out and disassemble the
Noise Filter.
Be careful of injury.
