Samsung RSA1D series Service Manual

TROUBLE SHOOTING
NO
ITEM Description Display Digital no.
ICE MAKER SENSOR
FRIDGE SENSOR
ICE MAKER FUNCTION
ERROR
AMBIENT SENSOR
FREEZER SENSOR
FREEZER DEFROST SENSOR
FREEZER FAN ERROR
CONDENSER FAN ERROR
FREEZER DEFROST ERROR
DAMPER HEATER ERROR
COMMUNICATION ERROR
(LOAD MAIN)
Open/Short
Open/Short
Continuous Ice Ejection
(more than 3 times)
Open/Short
Open/Short
Open/Short
F-Fan Trouble
C-Fan Trouble
Defrost completed according
to the accumulated time
Damper Heater Open
Communication Trouble
between Load
Main
Fridge second digit "a"
Fridge second digit "b"
Fridge second digit "e"
Freezer second digit "a"
Freezer second digit "b"
Freezer second digit "c"
Freezer second digit "d"
Freezer second digit "e"
Freezer second digit "g"
Fridge first digit "a"
Freezer first digit "f"

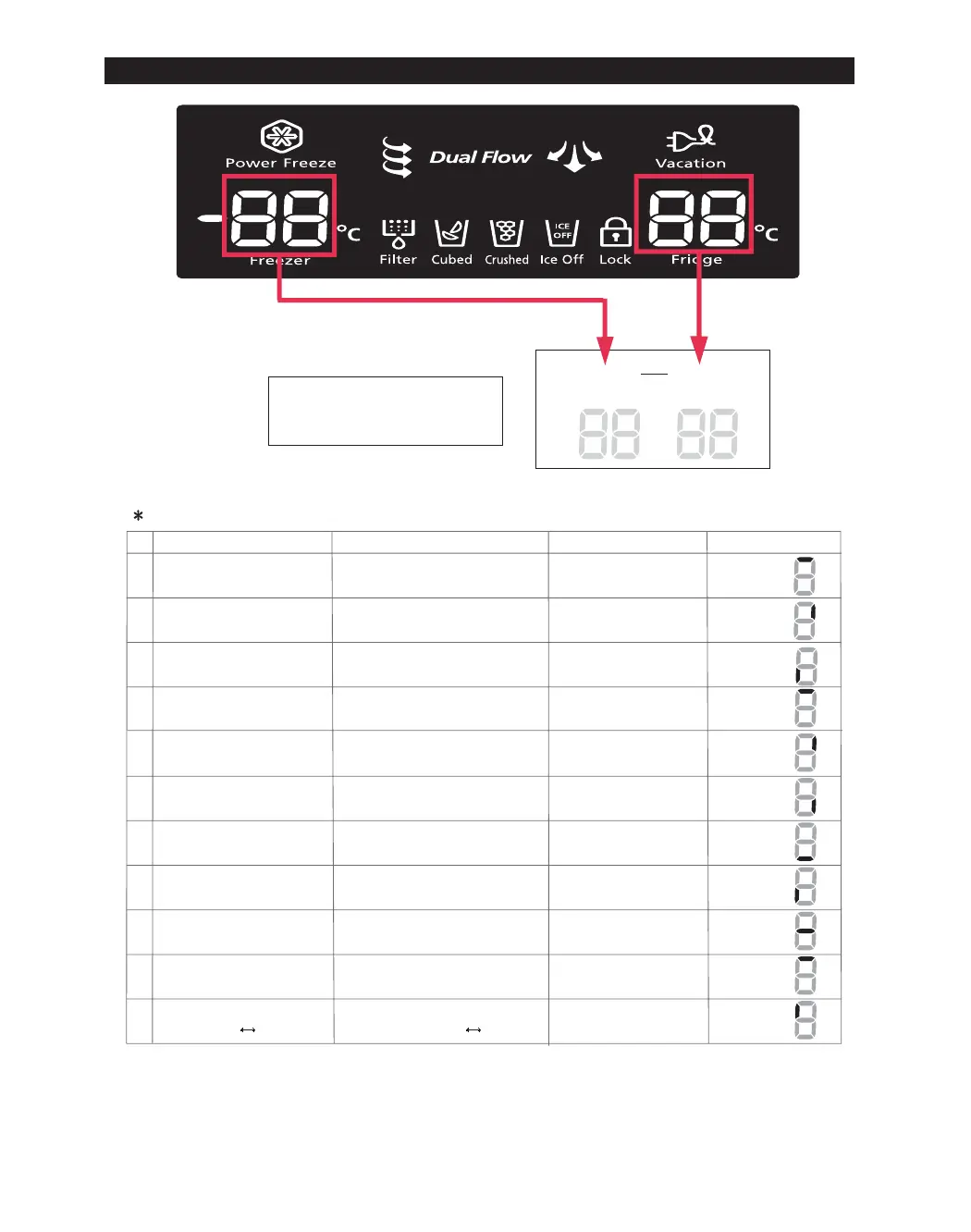

Self-Diagnosis Check List











a
b
c
d
e
f
g
a
b
c
d
e
f
g
Fridge
(second)
Fridge
(second)
Fridge
(second)
Freezer
(first)
Freezer
(second)
Freezer
(second)
Freezer
(second)
Freezer
(second)
Freezer
(second)
Freezer
(second)
Fridge
(first)
Freezer
Compartment
Fridge
Compartment
When any of the above segments is
blinking, it indicates its relevant sensor or
part is defective.
