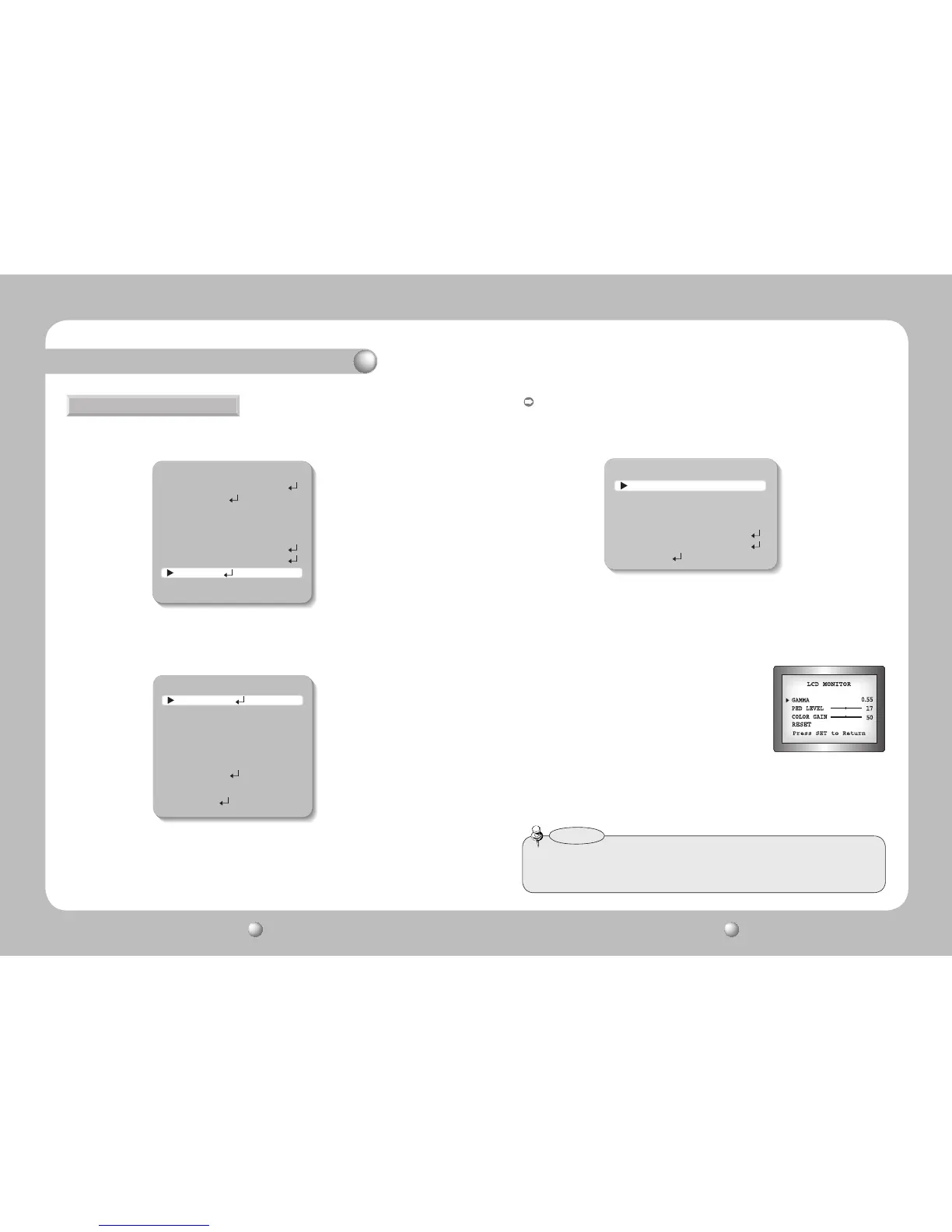

2. Select a desired mode using the Function Setup switch.
IMAGE SETUP
1.V-REV OFF
2.H-REV OFF
3.D-ZOOM OFF
4.FONT COLOR WHITE
5.SHARPNESS ON
6.MONITOR LCD
7.RETURN
IMAGE ADJ. :
1) When the SETUP menu screen is displayed, select ‘IMAGE ADJ’ by using the Function
Setup switch so that the arrow indicates ’IMAGE ADJ‘.
2) Select a desired mode using the Function Setup switch.

•V-REV : You can flip the picture vertically on the screen.

•H-REV : You can flip the picture horizontally on the screen.

• D-ZOOM : You can use a digital zoom of x1 ~ x16.

• FONT COLOR : You can change the OSD font color. (White, Yellow, Green, Red, Blue)

•SHARPNESS : As you increase this value, the picture outline becomes stronger and
clearer. Adjust this value appropriately depending on the sharpness of
the picture.

•MONITOR : Please change the settings value of video
appropriate to your monitor.
- LCD : Please select this menu item when using a LCD
monitor.
- CRT : Please select this menu item when using a CRT
monitor.
- USER : Please use this menu item when using a monitor other than standard ones. You
can change the gamma, PED level, and color gain in the sub menus.
•RETURN : Select this to save the settings for the IMAGE ADJ menu and to return to
the SETUP menu.
1. When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Function Setup
switch so that the arrow indicates ‘SPECIAL’.
SPECIAL
•WhentheV-REVorH-REVmodeisenabled,thetextonthescreendoesnotflip.
•IfyouincreasetheSHARPNESSleveltoohigh,thepicturemaybecomedistorted
or noise may appear.
Notes
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.SSDR
OFF
5.BACKLIGHT OFF
6.SSNR3 ON
7.DAY/NIGHT AUTO
8.SPECIAL
9.EXIT SAVE
SPECIAL
1.IMAGE ADJ
2.CAM TITLE OFF
3.SYNC INT
4.MOTION DET
OFF
5.PRIVACY OFF
6.DIS OFF
7.COMM ADJ
8.LANGUAGE ENGLISH
9.RETRUN
