Samsung SCD-5083 - Connection and Cabling; Connecting to Monitor and Power

English_15
● CONNECTION
connection


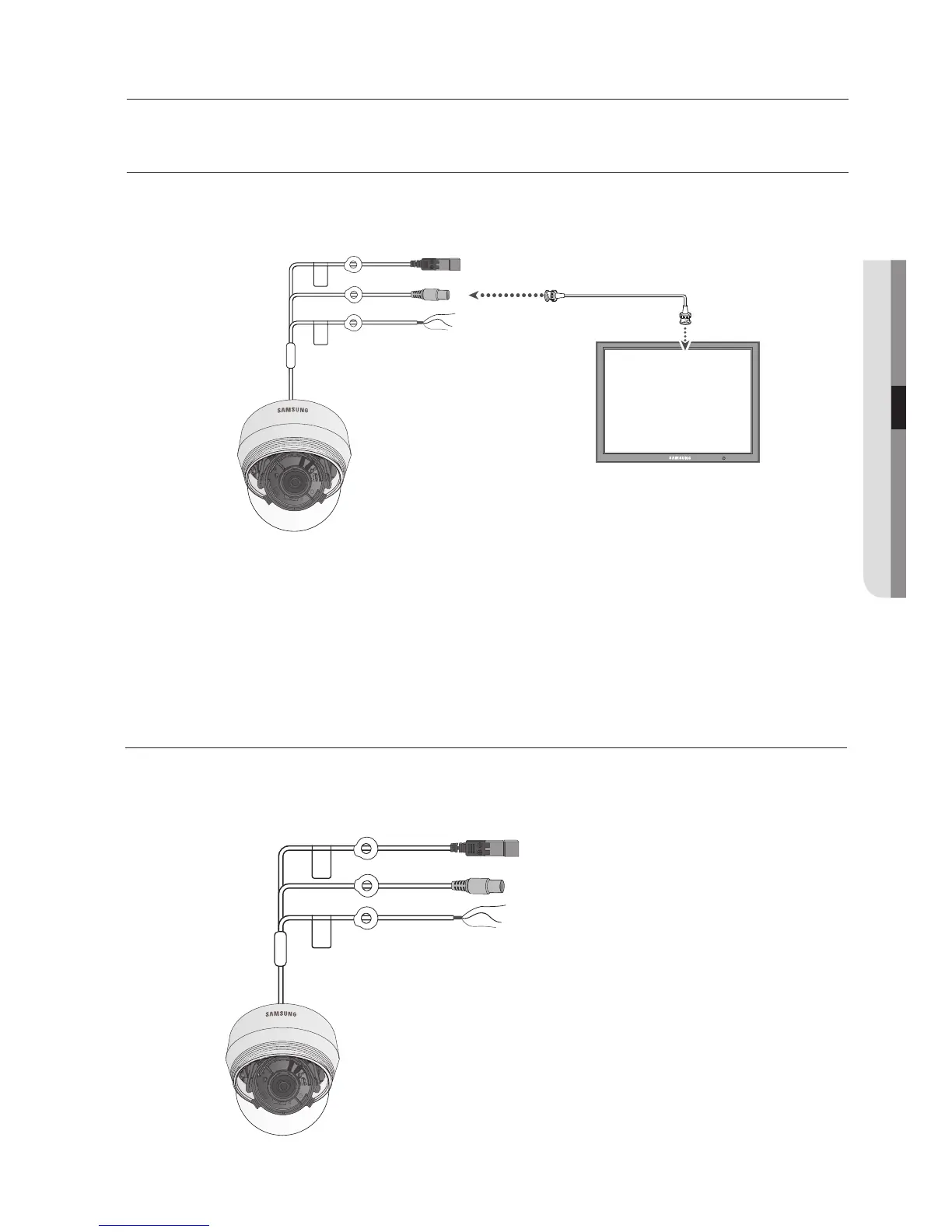

Connect the Video OUT port on the rear panel of the camera to a monitor.
As the connecting method varies with the instruments, refer to the manual supplied
with the instrument.
Only connect the cable when the power is turned off.

You can connect power as shown in the following figure.


SCD-5083
Monitor
----
Power Input Terminal
