Getting to Know Your Camcorder
1818

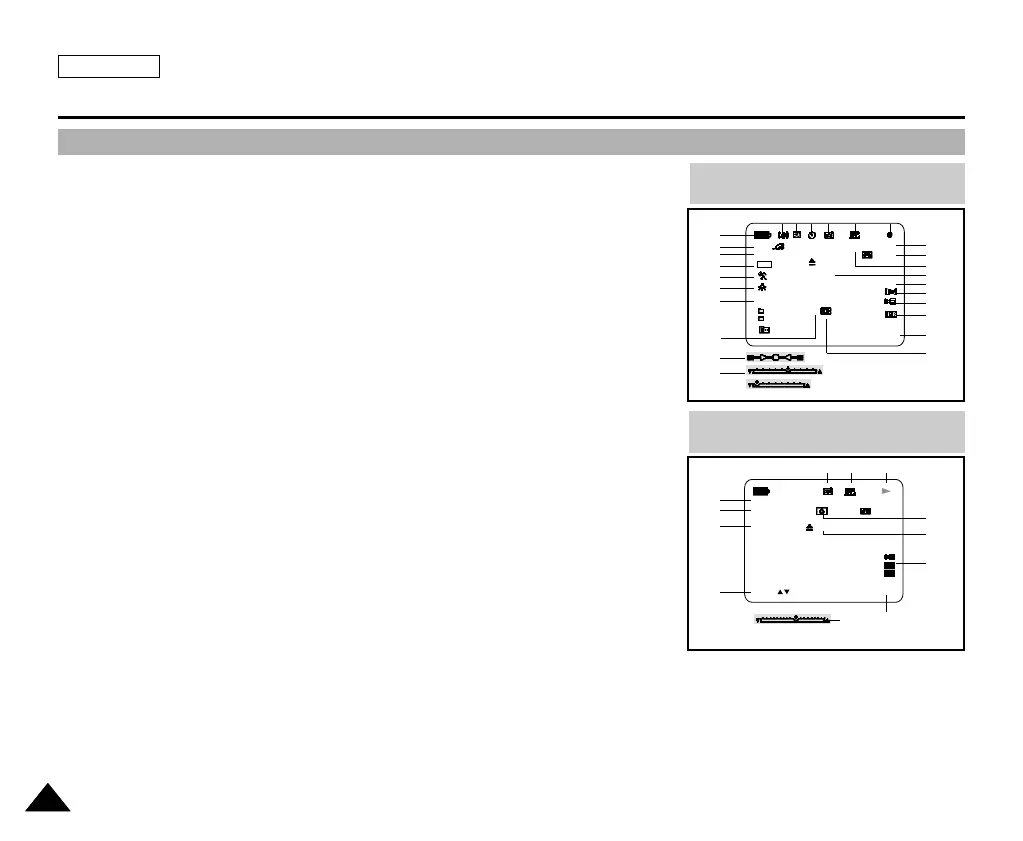

OSD (On Screen Display in CAMERA and PLAYER modes)
1. Battery level (see page 26)
2. Easy mode (see pages 57)
3. DSE (Digital Special Effects) mode (see page 46)
4. Program AE (see page 40)
5. White Balance mode (see page 42)
6. BLC (Back Light Compensation) (see page 59)
7. Manual focus (see page 58)
8. Shutter speed and EXPOSURE (see page 55)
9. Zoom position (see page 43)
10. NITE PIX (see page 64)
11. DATE/TIME (see page 51)
12. USB
13. REMOCON (SCD24 only)
14. WIND CUT (see page 50)
15. Audio recording mode (see page 49)
16. Zero memory indicator (SCD24 only) (see page 72)
17. Remaining Tape (measured in minutes)
18. Tape Counter
19. Operating mode
20. Record speed mode
21. PHOTO mode
22. Self recording and waiting timer (SCD24 only) (see page 20)
23. DIS (see page 45)
24. Volume control (see page 34)
25. Audio playback channel
26. DV IN(DV data transfer mode) (see page 76)
27. DEW (see page 7)
28. Message Line
29. PB DSE (see page 73)
30. PB ZOOM/ENTER (see page 74)
31. Video light (see page 66)
32. POWER NITE PIX (see page 65)
OSD in CAMERA mode
TAPE !
NITE PIX
MIRROR
MF
P
SHUTTER
ZOOM
SHUTTER
EXPOSURE
EXPOSURE
EASY
M - 0 : 0 0 : 0 0
5 5 min
1 6 bit
1 0 : 0 0 AM
J A N. 1 0 , 2 0 0 3
REC
BLC
1
2
3
6
4
5
7
32
9
8
23 31 22 21 20 19
18
17
16
15
14
13
12
11
10
28
OSD in PLAYER mode
. . . C
SOUND [ 2 ]
MIRROR
ENTER :
PB ZOOM
1.2x
M - 0 : 0 0 : 0 0
5 5 min
1 6 bit
1 0 : 0 0 AM
J A N . 1 0 , 2 0 0 3
VOL. [ 1 1 ]
DV
25
30
29
30
28
27
21 20 19
26
24
11
