NO. CONNECTOR DIRECTION CONNECTOR NO.
LOCA-NO. LOCA-NO.
2 CN101 MAIN PCB DECK -- 1
4 CN503 MAIN PCB DECK -- 3
7 CN501 MAIN PCB REAR CN961 8
19 CN892 MIC CPB MIC -- 18
11 CN851 MAIN PCB MIC PCB CN891 12
9 CNP03 MAIN PCB MIC PCB CN893 10
16 CNL201 LCD PCB MAIN PCB CN702 15
25 CNL301 LCD PCB LCD -- --
26 CNL102 LCD PCB B/LIGHT -- --
-- CNE02 EVF MANU PCB CN803 24
21 CN805 FUNC MENU CN802 20
22 CN806 AE MENU CN802 20
14 CN801 MENU MAIN CN502 13
23 CN804 MENU SPEAKER -- --
17 CNP02 MAIN PCB LENS -- --
5 CNP01 MAIN PCB CCD PCB CNC01 6
Disassembly and Reassembly
Samsung Electronics 4-13

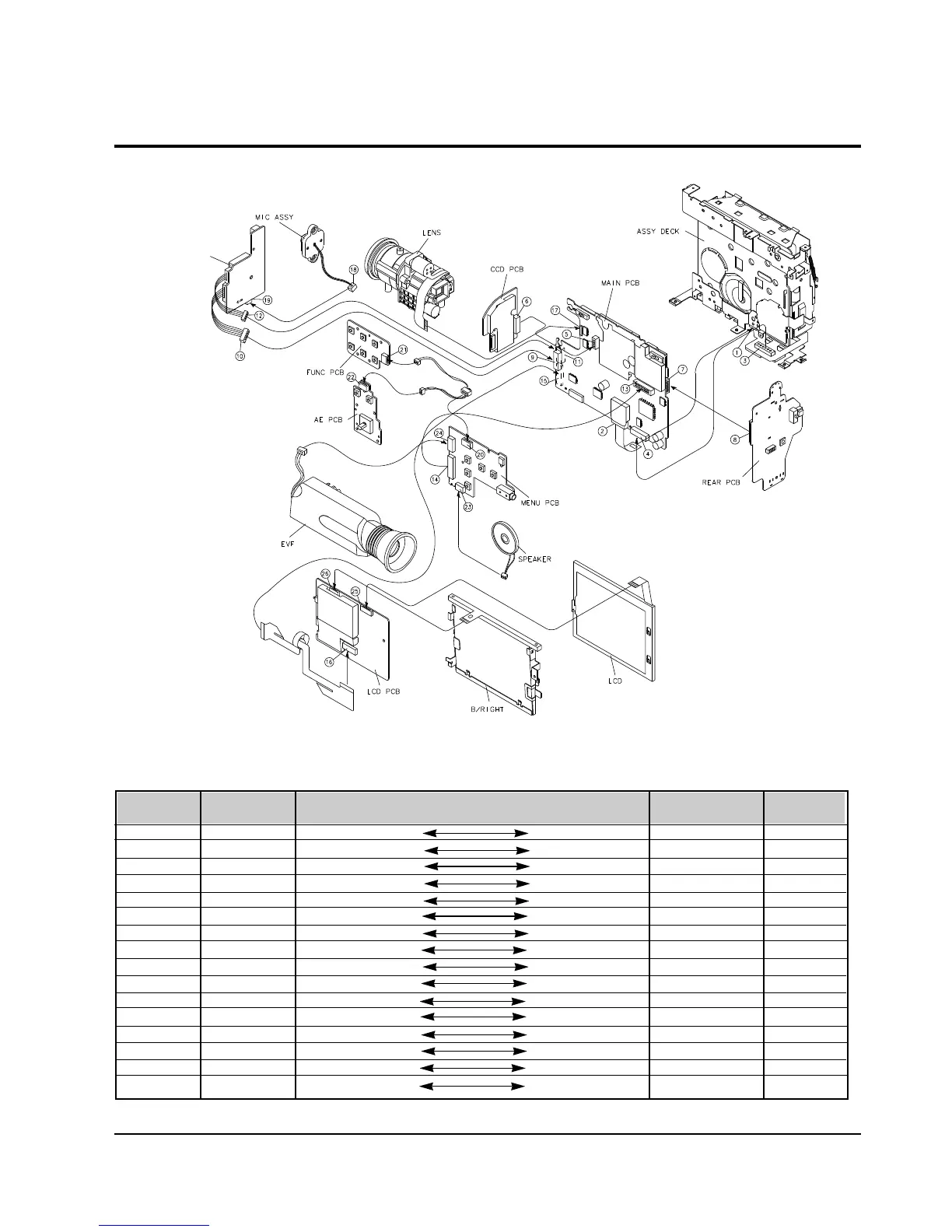

4-3 Connector Diagram
