3-1-4 Ass’y Case Left Removal
Samsung Electronics3-4
Disassembly and Reassembly
2
REMOVE THE ASS’Y CASE Right
IN THE DIRECTION OF ARROW "A".
5
3
4
REMOVE 2 SCREWS.
DISASSEMBLE AFTER TURNING
KNOB to be "LOCK".
REMOVE 3 SCREWS.
1
REMOVE 1 SCREWS.
"A"

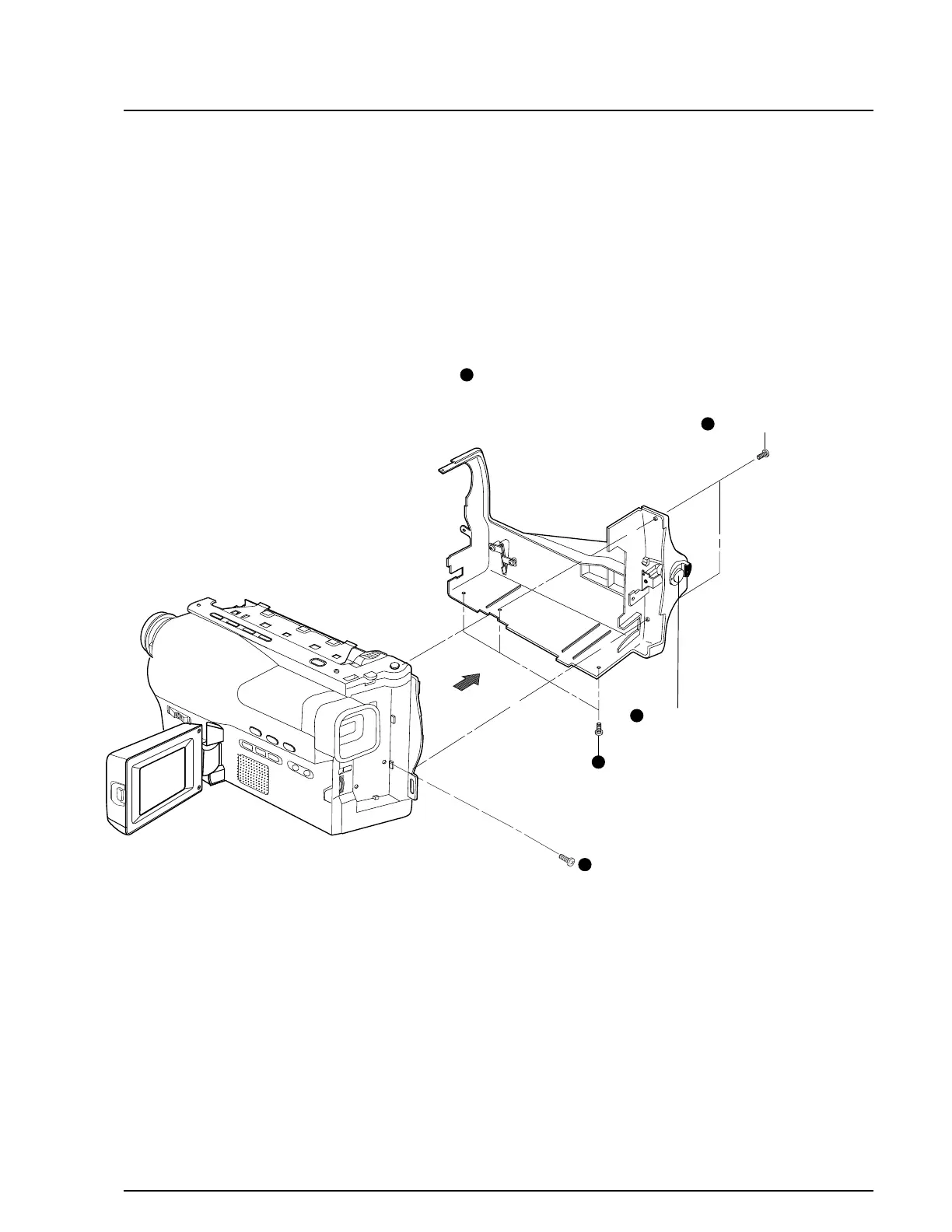

Fig. 3-4 Ass’y Case Left Removal
