Samsung Electronics 3-3
Disassembly and Reassembly
3-1-3 Ass’y Front Removal
1
REMOVE 2 SCREWS.
1
2
REMOVE THE ASS’Y FRONT IN
THE DIRECTION OF ARROW "A".
3
PISCOANECT THE CONNECTOR
FROM THE MAIN PCB.
"A"

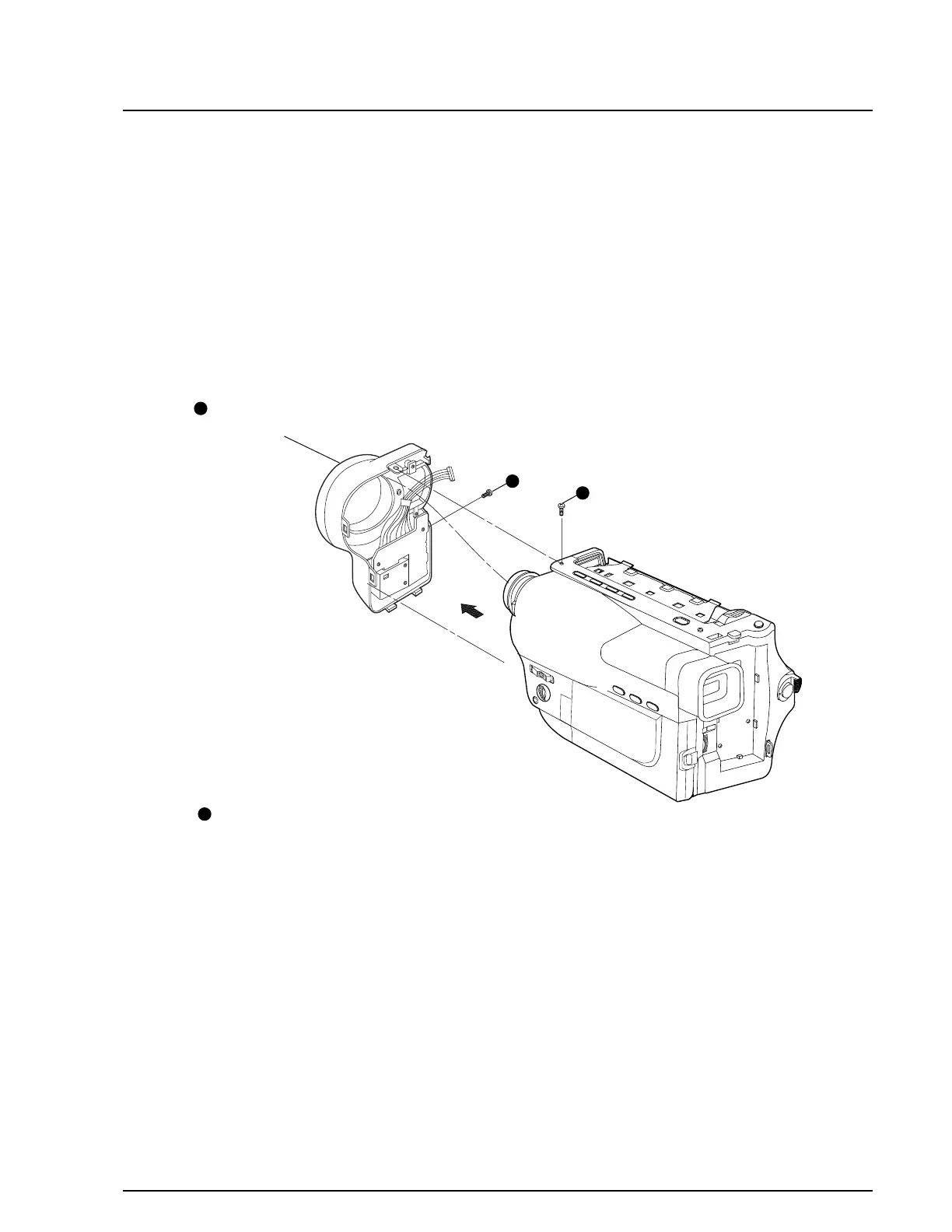

Fig.3-3 Ass’y Front Removal
