3-1-2 Ass’y Case Top Removal
Samsung Electronics3-2
Disassembly and Reassembly
1
REMOVE CASE TOP BY GENTLELY RELEASING
1 LOCKING TABS WITH A SMALL SCREW DRIVER.
(SEE DETAIL "A")
REASSEMBLY : PUT THE 4 TABS INTO THE SLOT,
WHILE SLIDING IT AS SHOWN IN DETAIL "B".
1 LOCKING TAB
PRECISION
SCREW DRIVER
< DETAIL "A" >
"B"
< DETAIL "B" >

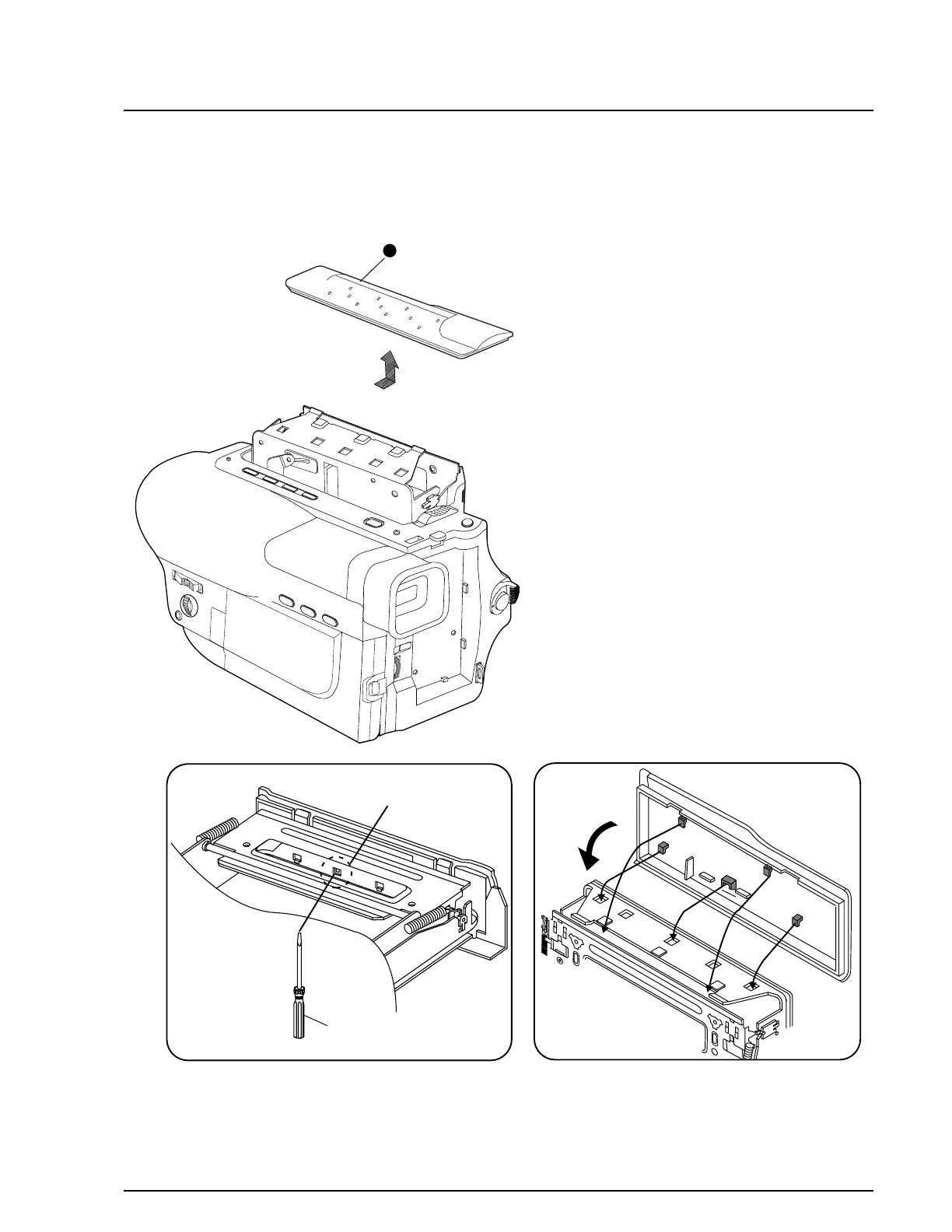

Fig. 3-2 Ass’y Case Top Removal
