3-8

Samsung Electronics

Disassembly and Reassembly

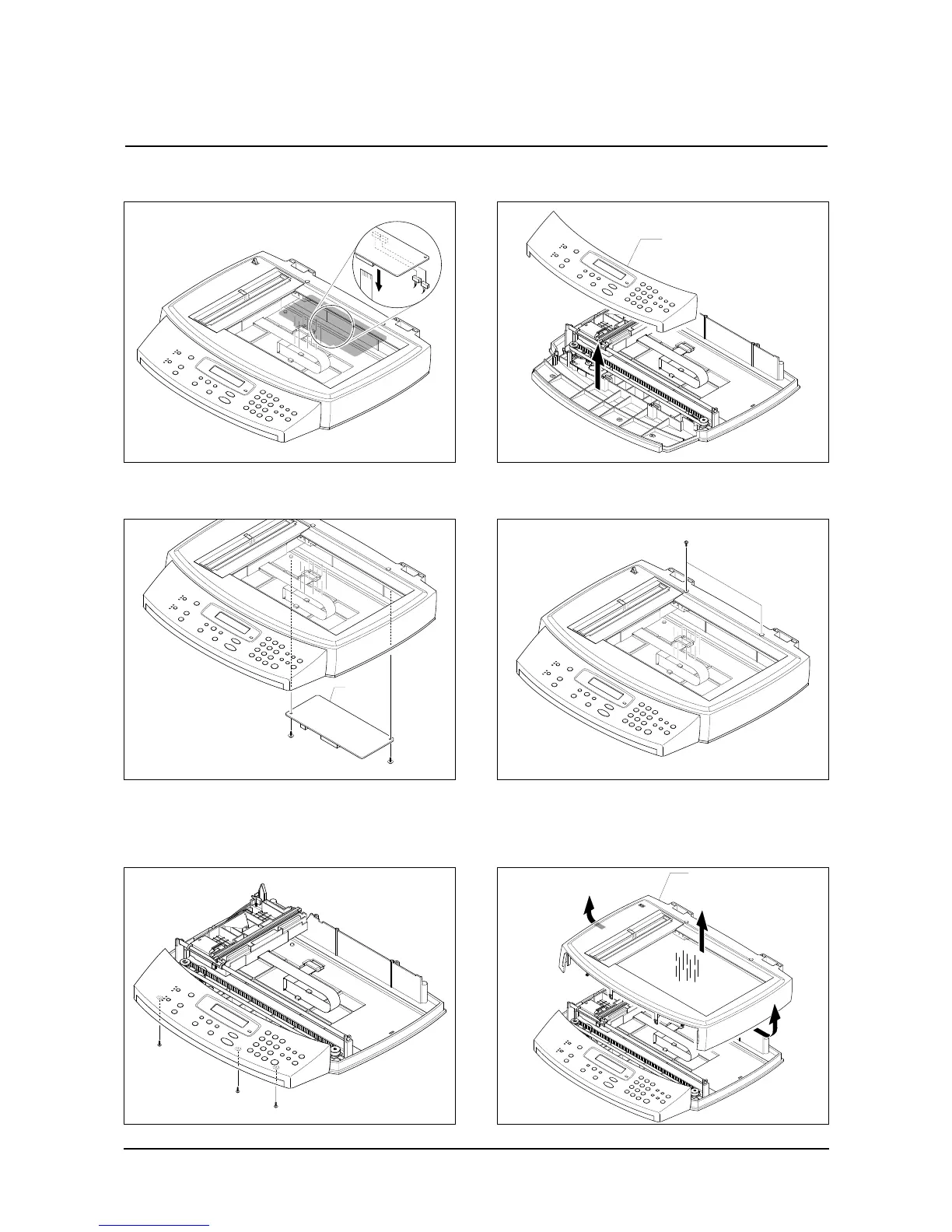

6. Unplug the two connectors and CCD Cable from the

Scanner PBA.

7. Remove the two screws securing the Scanner PBA

and remove it.

8. Remove the three screws securing the Scan Lower

Ass'y.

9. Lift the OPE Unit out. Then unplug the two connec-

tors from the OPE Unit and remove it.

10. Remove the two screws securing the Window Cover.

11. Unlatch the Window Cover securing the Scan Lower

Ass'y Then pull the Window Cover upward and

remove it..

OPE Unit

Scanner

PBA

Window Cover
