Disassembly and Reassembly

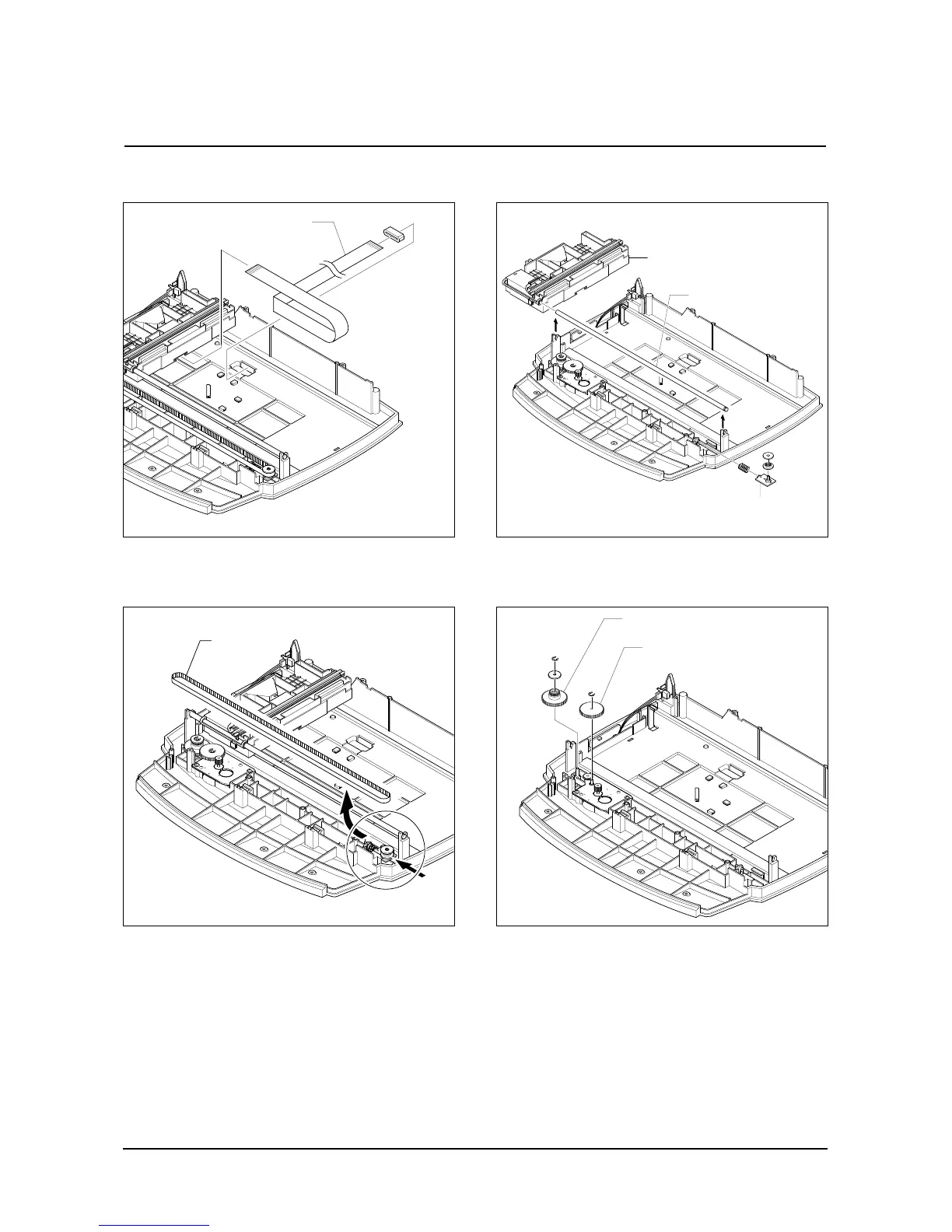

12. Remove the CCD Cable, as shown below.
13. Push the Belt Holder and take out the Belt, as shown
below.
14. Pull up the CCD Shaft and take out the Scanner
Module.
15. Remove the Reduction Gear and Idle Gear, as
shown below.
