Samsung SCX-4216F Series - Page 24

3-10 Samsung Electronics
Disassembly and Reassembly

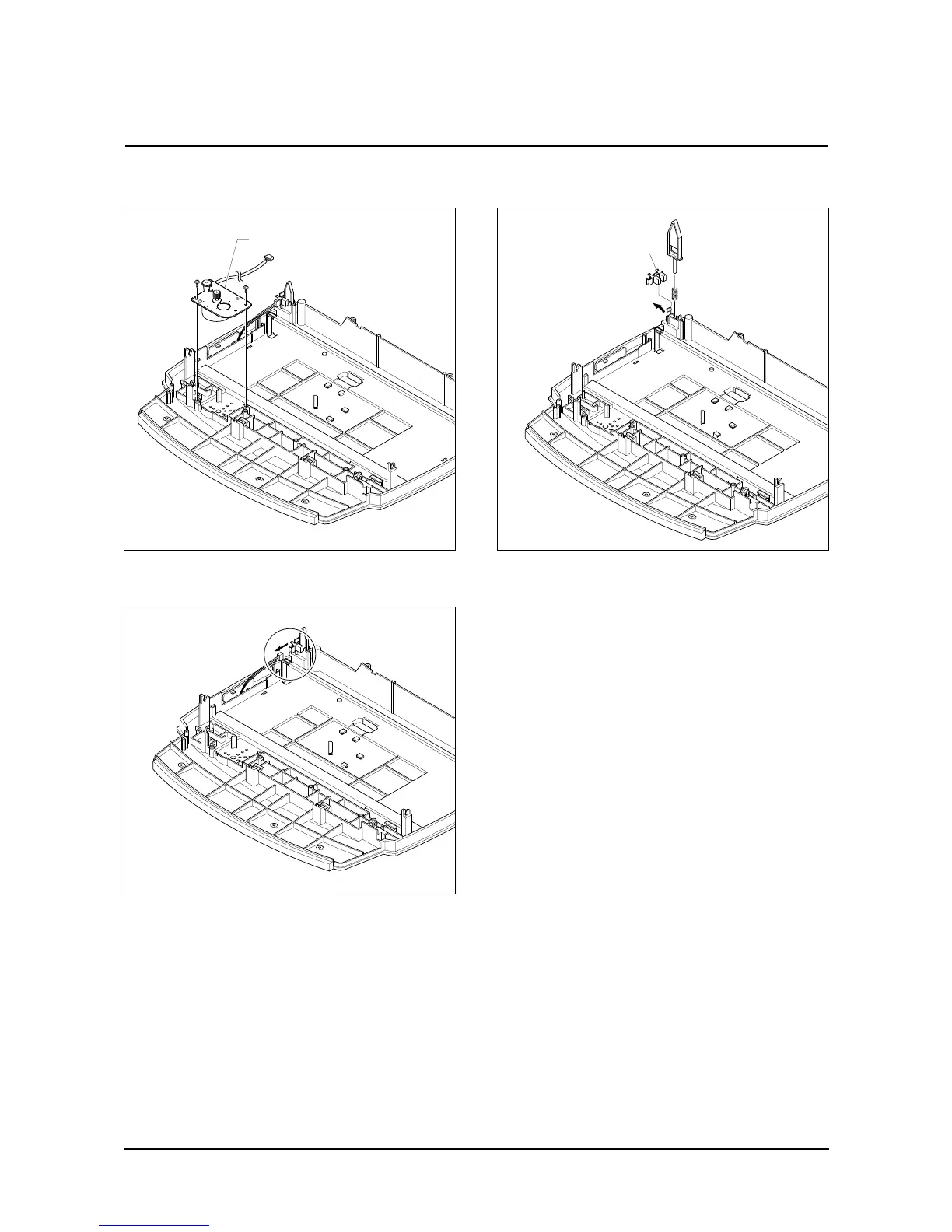

16. Remove the two screws and take out the Motor
Bracket.
17. Unplug the one connector from the Open Sensor
Ass'y.
18. Unlatch the Open Sensor and remove it, as shown
below.
Open Sensor
Motor Bracket
